Quick Details
-
Lift Speed:
-
6/8m/min
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
120 kg
-
Product name:
-
Electric Chain Hoist
-
Application:
-
Lifting Goods
-
Color:
-
Yellow or as require
-
Sling type:
-
Chain
-
Capacity:
-
0.5ton-30ton
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control method:
-
Pendent Line+remote Control
-
Lifting height:
-
3-30m
-
Traveling speed:
-
6/8 m/min
-
OEM:
-
Avaiable
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kino Cranes
-
Lift Speed:
-
6/8m/min
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
120 kg
-
Product name:
-
Electric Chain Hoist
-
Application:
-
Lifting Goods
-
Color:
-
Yellow or as require
-
Sling type:
-
Chain
-
Capacity:
-
0.5ton-30ton
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control method:
-
Pendent Line+remote Control
-
Lifting height:
-
3-30m
-
Traveling speed:
-
6/8 m/min
-
OEM:
-
Avaiable
OEM Supplier Best quality Manual Fixed type Electric Chain Hoist 1ton 2t 3t 5t 7t 10t 16t for mini portable gantry crane
Product Description

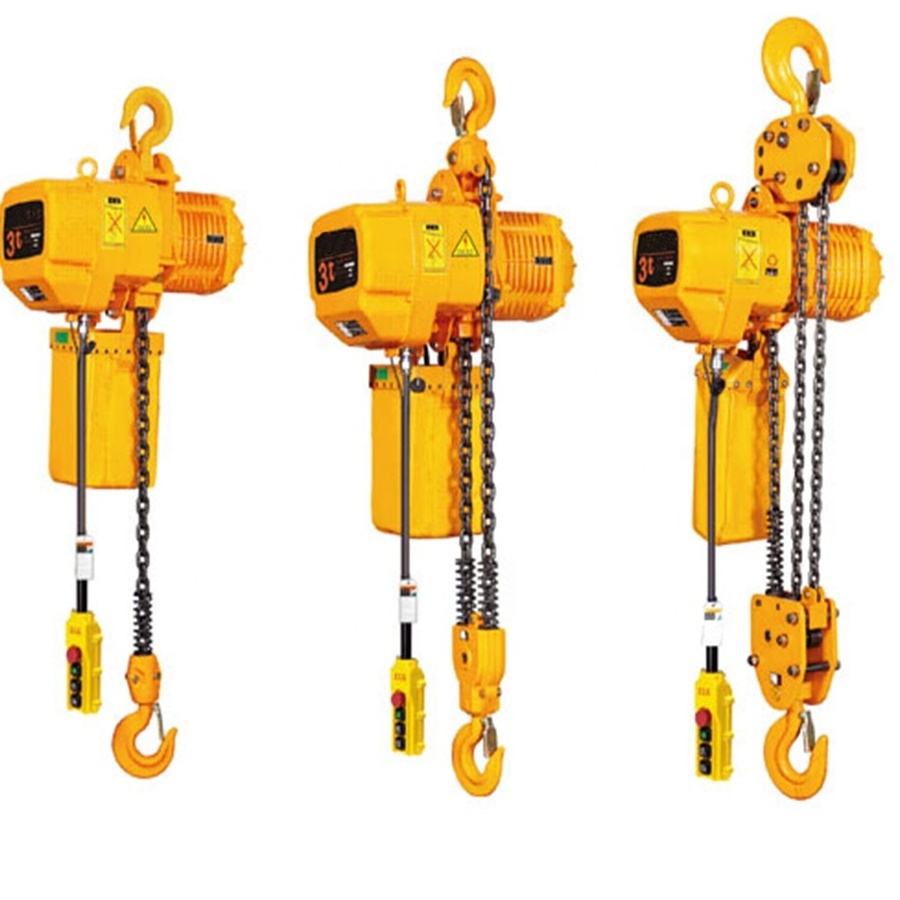

Electric Chain Hoist is designed to meet the user's particular application such as Hook Suspension,Electric Trolley,Manual Trolley or Low Headroom type, and load capacity ranges from 0.25 to 50 ton. It is engineered for a high working efficiency and long working life.
Electric Chain Hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
Electric Chain Hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
Product Features
1. Compact structure, light weight, small wheel load,
the best using of space;
2. Accurate positioning,
running high efficiency, improving production efficiency;
3. Durable, reliable and safe,
operation monitoring, easy maintenance;
4. Modular design, more options, meet customers' various needs;
5.
Save operating costs,
green energy-saving;
6.
Select high quality components, e
nsuring high quality;
7. It inherits the advanced Italian design and lightest concept of German mechanical design.
Specification
|
Capacity
(ton)
|
Lifting Height(m)
|
Lifting Speed
(m/min)
|
Lifting Motor Power(kw)
|
Lifting Motor Rotation Speed(r/min)
|
Voltage(V)
|
Phase
|
Frequency(Hz)
|
I-beam(mm)
|
|
1
|
3-30
|
6.8
|
1.5
|
1440
|
110/220/
240/380
|
3
|
50/60
|
75-125
|
|
2
|
3-30
|
3.5
|
1.5
|
1440
|
110/220/
240/380
|
3
|
50/60
|
75-125
|
|
2.5
|
3-30
|
5.6
|
3.0
|
1440
|
110/220/
240/380
|
3
|
50/60
|
82-153
|
|
3
|
3-30
|
3.4
|
3.0
|
1440
|
110/220/
240/380
|
3
|
50/60
|
82-153
|
|
5
|
3-30
|
2.9
|
3.0
|
1440
|
110/220/
240/380
|
3
|
50/60
|
100-178
|
Company Introduction
Q1: How can we get accurate price asap?
A1: Pls help confirm:
A1: Pls help confirm:
a. Trolley type or hook type?
b. Hoist's lifting capacity is___ton?
c. Lifting height is ___m?
d. Voltage: ___V, ___Phase, ___Hz?
Q2: What is the lead time of the goods?
A2: It depends on the order quantity and specification and the season you place the order. Normally 10 days after confirmed order. 5 days could be available for some items in sufficient stock and standard requirement, and 30 days during New Year and hot season.
Q3: How about the quality control before shipment?
A3: Every product has strict quality inspection and testing with 3 steps before packing to promise all the hoists operating well before delivery.
Q3: How about the quality control before shipment?
A3: Every product has strict quality inspection and testing with 3 steps before packing to promise all the hoists operating well before delivery.
Q4: How many years quality guarantee ? What about the after sale service?
A4: Normally 12monthes, we have fast service within 24hours, any problem just contact with our sales team we will solve any problem.
A4: Normally 12monthes, we have fast service within 24hours, any problem just contact with our sales team we will solve any problem.
