Quick Details
-
Applicable Industries:
-
Cold Room
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Voltage:
-
220V/380V
-
Power:
-
1-50HP
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
500 KG
-
Product name:
-
Cold room door
-
Product Type:
-
cold room and freezer
-
Power(W):
-
1-50HP
-
Dimension:
-
all available
-
weight:
-
all available
-
Model Number:
-
Cold Storage
-
cooling type:
-
air cooled
-
size:
-
10m3~10000m3
-
Usage:
-
vegetable and fruit, clean room etc cooling room
Quick Details
-
Temperature:
-
-40-+20
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, Other, 50mm, 150mm
-
Cooling Capacity:
-
Other
-
Applicable Industries:
-
Cold Room
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Voltage:
-
220V/380V
-
Power:
-
1-50HP
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
500 KG
-
Product name:
-
Cold room door
-
Product Type:
-
cold room and freezer
-
Power(W):
-
1-50HP
-
Dimension:
-
all available
-
weight:
-
all available
-
Model Number:
-
Cold Storage
-
cooling type:
-
air cooled
-
size:
-
10m3~10000m3
-
Usage:
-
vegetable and fruit, clean room etc cooling room

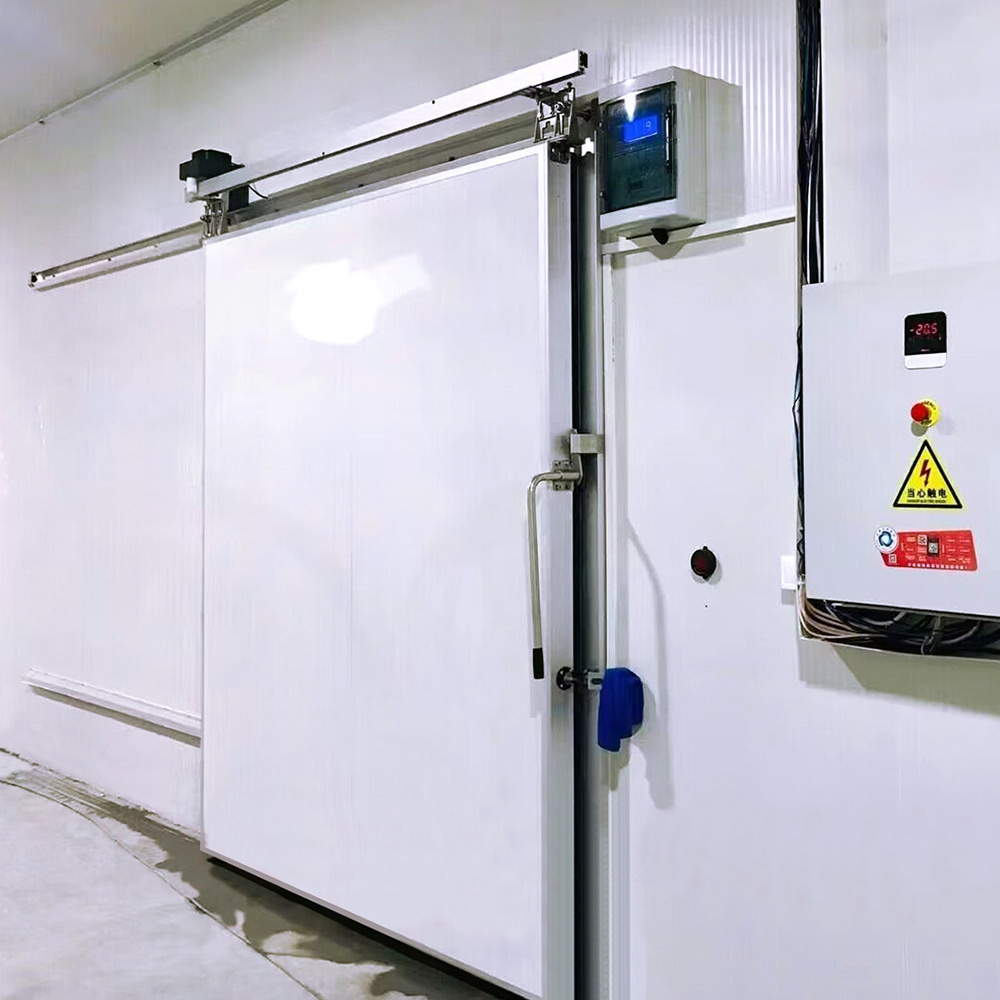

Room Panels Installation Cold Storage High Speed Doors
| Room size | small | middle | big |
| volume range | <500m3 | 500m3~5000m3 | >5000m3 |
tempreture table for reference
| cold storage goods | tempreture range |
| processing room | 10C |
| fruit, vegetable, dry food | 0C~-5C |
| medicine, cake, pastry, chemical material | 0C~-5C |
| ice storage room | -5~-10C |
| fish, meat storage | -18~-25C |
| deep freezer | -25C~-35C |
| compressor type | bitzer(Germany) | refcomp(italy) | copeland(US) | manurope(France) |
| condenser | air cooled | water cooled | evapoarating |
Panels information
| office Foam panel | 50mm thickness |
| processing room 10C | 50mm/ 75mm PU |
| 5C | 75mm/ 100mm PU |
| -18C | 100mm/ 150mm PU |
| -25C/ -35C | 150mm/200mm PU |
| panel steel cover | SS, GI, aluminum etc |
Panel thickness: 100mm, 150mm Feature of modular cold room:
-- temperature range: -40~+15c are all available.
-- size: Customization..
-- functions: Fresh-keeping. Freezing, quick-freezing. Fire-proof. Air-conditioning are all available..
-- fully automatic control system. Components:
-- condensing unit: Bitzer, copeland, maneurop, fusheng.
-- evaporator: Eltess air-cooler.
-- insulation panel: Polyurethane (density is up to 40~46kg/m3 )
-- Other accessories: World-famous brands, like danfoss, castle, every control, Siemens,
Application : Food(meat, vegetable, fruit, dairy, drink), medicine, chemical, electronics, etc.
-- materials: Polyurethane and metal sheet. Metal sheet: It is can be with painted steel sheet and stainless steel sheet for choice..
-- with electric heating wire around doorframe to void icing..
-- safe doorknob inside..
-- positive plastic seal fixed to door to avoid cooling air losses..
