Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Mglory
-
Model Number:
-
RS560
-
Torque:
-
0.008N.m
-
Certification:
-
CE RoHS
-
Rated Voltage:
-
12V
-
No-load speed:
-
1000rpm
-
Rotation:
-
CCW
-
Material of the housing:
-
SECD
-
Motor Diameter:
-
36mm
-
Shaft diameter:
-
3.175mm
-
Shaft Material:
-
Carbon steel or Stainless steel
-
Bearing:
-
Ball bearing
-
Motor Housing Shape:
-
Round
Quick Details
-
Speed(RPM):
-
1000rpm
-
Continuous Current(A):
-
0.25A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Mglory
-
Model Number:
-
RS560
-
Torque:
-
0.008N.m
-
Certification:
-
CE RoHS
-
Rated Voltage:
-
12V
-
No-load speed:
-
1000rpm
-
Rotation:
-
CCW
-
Material of the housing:
-
SECD
-
Motor Diameter:
-
36mm
-
Shaft diameter:
-
3.175mm
-
Shaft Material:
-
Carbon steel or Stainless steel
-
Bearing:
-
Ball bearing
-
Motor Housing Shape:
-
Round

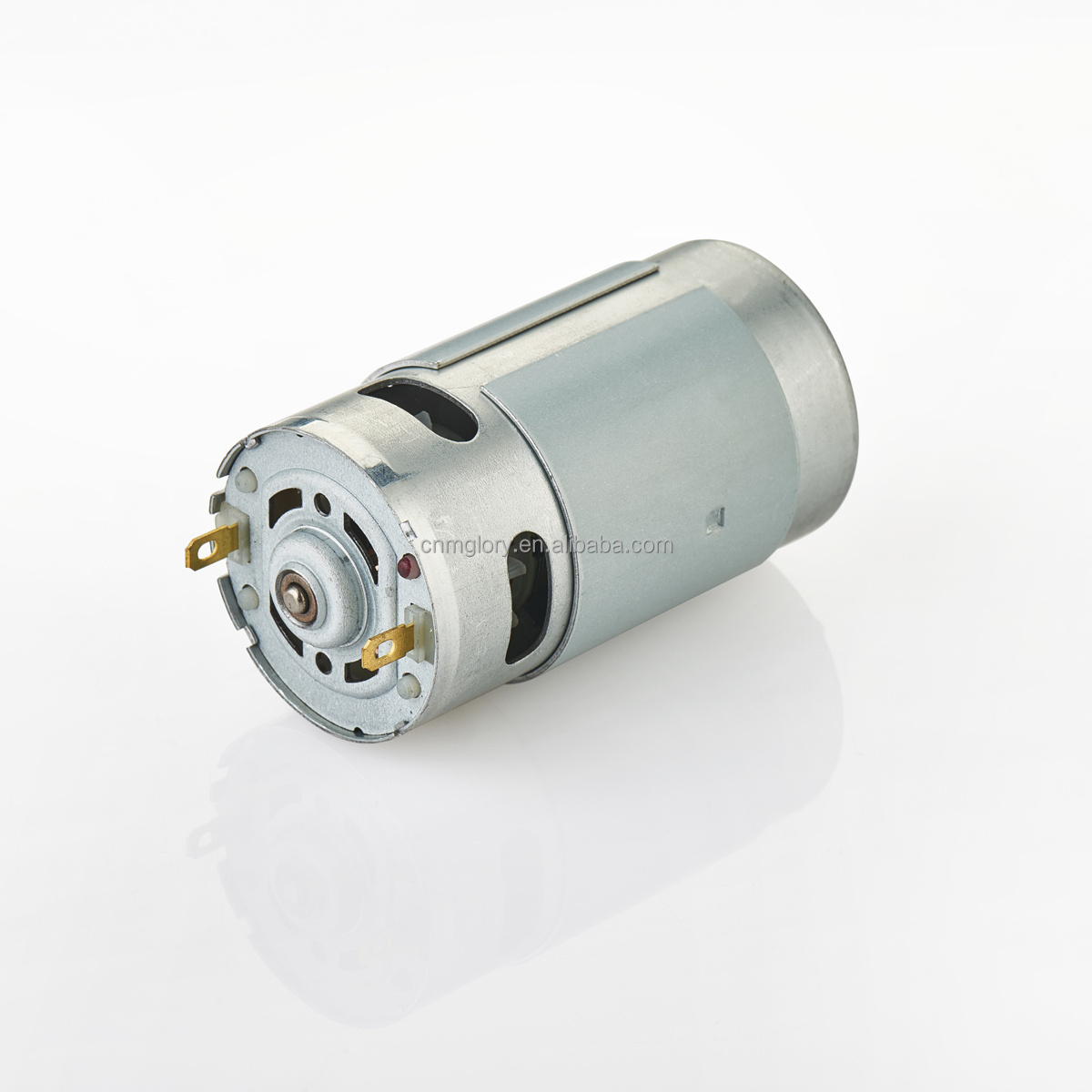

Why choose RS560 Series Motors
Our RS560 motor is a brushed permanent magnet DC motor that uses pure copper wire, not aluminum wire. This makes the motor more reliable and durable, with a longer lifespan. The 560 motor also features ball bearings in the front, which reduces end play and noise. Additionally, an internal cooling fan helps to keep the motor cool during operation.
Here is a more detailed explanation of each feature:
* Pure copper wire : Copper is a better conductor of electricity than aluminum, which means that the 560 motor can produce more torque and power. This makes it ideal for applications that require a high level of performance, such as robotics, drones, and power tools.
* Ball bearings : Ball bearings are more durable and efficient than sleeve bearings, which means that they can last longer and reduce friction. This results in less noise and vibration, as well as improved performance.
* Internal cooling fan : The internal cooling fan helps to prevent the 560 motor from overheating, which can damage the motor and shorten its lifespan. This is especially important for applications where the motor is used under high loads or for extended periods of time.
Here is a more detailed explanation of each feature:
* Pure copper wire : Copper is a better conductor of electricity than aluminum, which means that the 560 motor can produce more torque and power. This makes it ideal for applications that require a high level of performance, such as robotics, drones, and power tools.
* Ball bearings : Ball bearings are more durable and efficient than sleeve bearings, which means that they can last longer and reduce friction. This results in less noise and vibration, as well as improved performance.
* Internal cooling fan : The internal cooling fan helps to prevent the 560 motor from overheating, which can damage the motor and shorten its lifespan. This is especially important for applications where the motor is used under high loads or for extended periods of time.
|
Model Number
|
RS560 Series Motors
|
|
Construction
|
Permanent Magnet
|
|
Commutation
|
Carbon Brush
|
|
Material of the Housing
|
SECD
|
|
Motor Housing Shape
|
Round
|
|
Motor Cover
|
Iron
|
|
Motor Diameter
|
38mm
|
|
Motor Length
|
65mm
|
|
Shaft Diameter
|
3.175mm
|
|
Shaft Material
|
Stainless Steel
|
|
Bearing
|
Ball Bearing / Oil Bearing
|
|
Power
|
DC
|
|
Rotation
|
CCW/CW
|
|
Cooling Fan
|
Yes
|
|
Motor Weight
|
340g Around
|
