Quick Details
-
Model Number:
-
Swivel Self-locking Hook
-
Place of Origin:
-
Hebei, China
-
Color:
-
red,yellow ,or customerized
-
Working load:
-
0.75tons to 15tons
-
Process:
-
Froged,Qunenched And Tempered
Quick Details
-
Finish:
-
ZINC
-
Application:
-
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry
-
Material:
-
Carbon Steel and alloy steel
-
Model Number:
-
Swivel Self-locking Hook
-
Place of Origin:
-
Hebei, China
-
Color:
-
red,yellow ,or customerized
-
Working load:
-
0.75tons to 15tons
-
Process:
-
Froged,Qunenched And Tempered

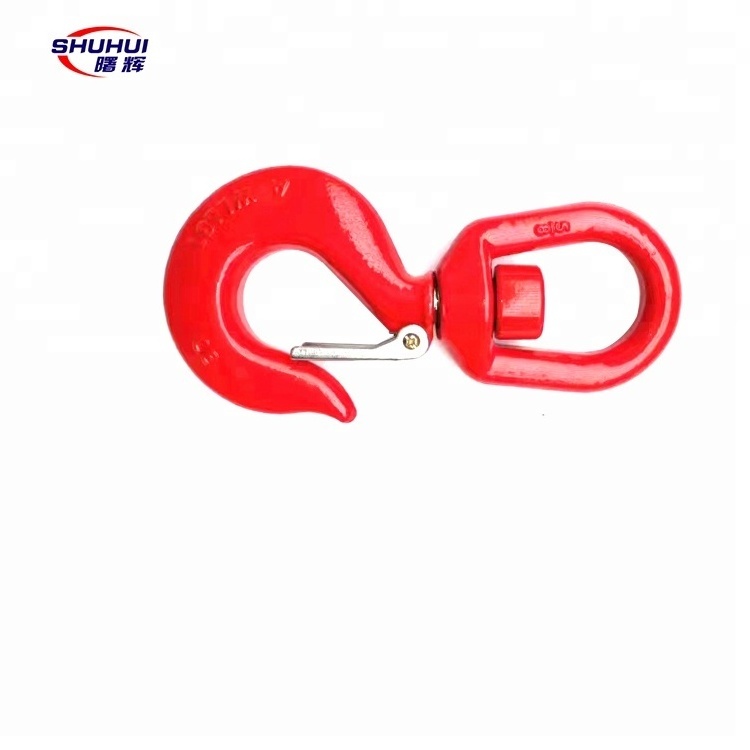

0.75tons to 15tons Lifting Chain Hoist Swivel Hook With Safety Latch
Swivel Self-locking Hook:A hook that is connected with other rigging accessories and can change the lifting angle and rotation arbitrarily.
Parameter:
| working load limit(tons) | dimensions(mm) | weight(lbs) | ||||||
| 322C | 322A | B | C | D | R | S | T | |
| 0.75 | 1 | 23.81 | 231.75 | 22.23 | 127.9 | 9.53 | 20.64 | 0.77 |
| 1 | 1.5 | 33.34 | 38.1 | 24.61 | 134.14 | 12.7 | 20.64 | 1.27 |
| 1.5 | 2 | 41.27 | 44.45 | 25.4 | 152.8 | 15.88 | 21.43 | 2.28 |
| 2 | 3 | 39.69 | 44.45 | 28.58 | 161.925 | 15.88 | 31.16 | 2.60 |
| 3 | 4.5 | 44.45 | 50.8 | 34.13 | 188.12 | 19.05 | 34.93 | 4.81 |
| 5 | 7 | 58.74 | 53.5 | 42.86 | 243.68 | 25.4 | 45.25 | 10.4 |
| 7.5 | 11 | 60.33 | 69.85 | 52.39 | 382.575 | 28.58 | 53.98 | 16.42 |
| 10 | 15 | 71.44 | 79.38 | 57.15 | 303.21 | 31.75 | 63.5 | 23.40 |
♦ Notes ♦
1) Before each use, the operator must perform a safety inspection on the sling and use it only after being qualified;
2) The sling must be inspected regularly by professionals (trained qualified personnel) every month;
3) If it is found that the dimensional wear of the sling is greater than 5% of the original size, it must be replaced in time;
4) If it is found that the amount of dimensional deformation exceeds 3% of the original size, it must be replaced in time to ensure safety.
5)It is strictly forbidden to overload.
6)It is strictly forbidden to stand under the hoisted object during hoisting.
