- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
245mm*80mm
-
Weight:
-
2 KG
-
Warranty:
-
2Year
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
ceramic infrared heater
-
Full Name:
-
Sauna Room Use Ceramic Infrared Heater Heating Element
-
Accessories for option:
-
Reflector or Thermocouple
-
Resistance:
-
Cr20Ni80
-
Size:
-
245mm*80mm
-
Power:
-
250~1000W(500w)
-
Color:
-
Black, White,Yellow
-
Guarantee:
-
24 Months
-
OEM&ODM:
-
YES
Quick Details
-
Type:
-
Infrared Heater
-
Power Source:
-
Electric
-
Voltage:
-
230V, 110V.220V,230V,380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Laiyuan
-
Dimension(L*W*H):
-
245mm*80mm
-
Weight:
-
2 KG
-
Warranty:
-
2Year
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
ceramic infrared heater
-
Full Name:
-
Sauna Room Use Ceramic Infrared Heater Heating Element
-
Accessories for option:
-
Reflector or Thermocouple
-
Resistance:
-
Cr20Ni80
-
Size:
-
245mm*80mm
-
Power:
-
250~1000W(500w)
-
Color:
-
Black, White,Yellow
-
Guarantee:
-
24 Months
-
OEM&ODM:
-
YES

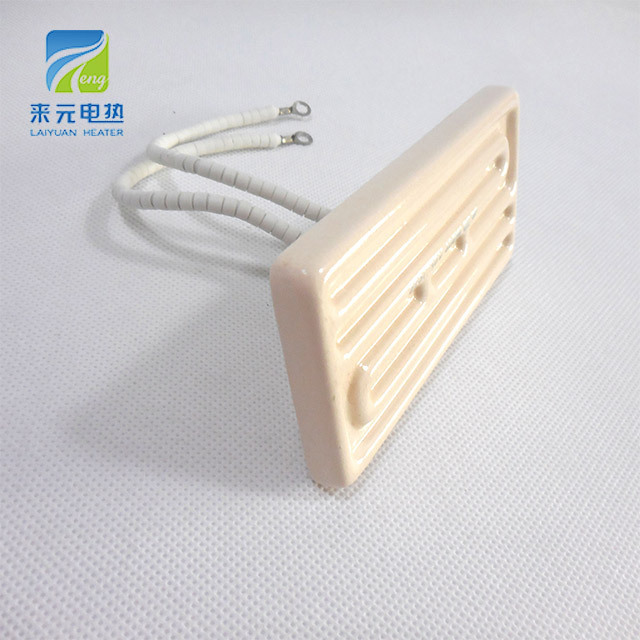

Sauna Room Use Ceramic Infrared Heater Heating Element
FSR panel radiators are ceramic infrared radiators, which are designed for operating temperatures up to 720 °C. Surface ratings of up to 64 kW/m² can be installed.
FSR series radiators are made using a full-pour casting ceramic process and are characterised by their concave design. Due to the design of this type, there is a space between the radiator and mounting plate, which reduces the heat absorbed by the wiring space.
FSR panel radiators can be used universally and are suitable for assembling radiation areas with any geometry required. They are available in three designs and cover the power range from 60 W to 1000 W.
With its FSR panel radiators, the company Laiyuan has been setting design, type, power and quality standards, for ceramic infrared panel radiators.
|
Type
,
weight,wattage FSR 220g
|
250 |
400 |
650 |
1000 |
W |
|
125 |
200 |
325 |
500 |
W |
|
|
60 |
100 |
200 |
250 |
W |
|
|
Surace rating |
16.0 |
25.6 |
41.6 |
64.0 |
KW/m2 |
|
Operation Temperature |
400 |
500 |
620 |
720 |
℃ |
|
Max Temperature |
750 |
750 |
750 |
750 |
℃ |
|
Range Of WaveLength |
2 ~ 10 |
µm |
|||
|
Standard Design
|
Thermocouple radiators
Type J (Fe-CuNi) TC leads 100 mm |
Variants
|
IR ceramic heater widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry firing, solidify etc. It has perfect saving energy effect in electron, textile , light industry, chemical , food industry etc, has obvious social profit and economy profit.
