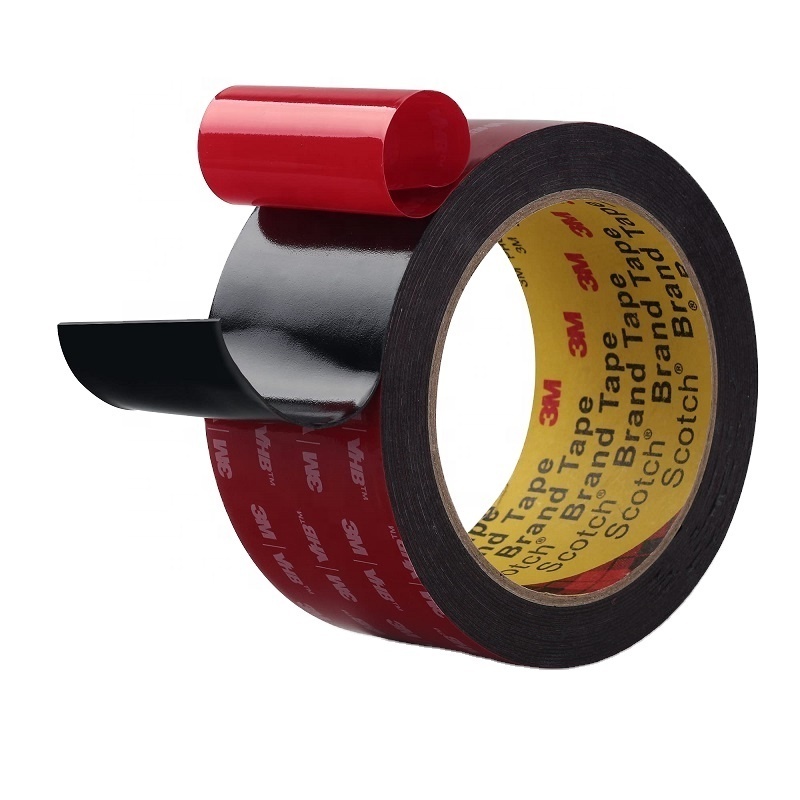

Die-cutting 3M VHB Double Sided Tape Foam Tape with PE Film Liner Double Coated Acrylic 5915 5925 5930 5952 5962 Black Masking

• Fast and easy-to-use permanent bonding method provides high strength and

long-term durability

• Virtually invisible fastening keeps surfaces smooth
• Can replace mechanical fasteners (rivets, welding, screws) or liquid adhesives
• Black , modified acrylic adhesive and very conformable acrylic foam core bonds to a wide

variety of substrates including powder coated paints and irregular surfaces

• Eliminate drilling, grinding, refinishing, screwing, welding and clean-up
• Creates a permanent seal against water, moisture and more by offering better gap

filling capabilities

• Pressure sensitive adhesive bonds on contact to provide immediate handling strength
• Allows the use of thinner, lighter weight and dissimilar materials

Available for different thicness

Application Techniques

• Clean: Most substrates are best prepared by cleaning with a 50:50 mixture of isopropyl alcohol

(IPA*) and water prior to applying 3M™ VHB™ Tapes.

• Exceptions to the general procedure that may require additional surface preparation include:
• • Heavy Oils: A degreaser or solvent-based cleaner may be required to remove heavy oil or

grease from a surface and should be followed by cleaning with IPA/water.

• • Abrasion: Abrading a surface, followed by cleaning with IPA/water, can remove heavy dirt or

oxidation and can increase surface area to improve adhesion.

• • Adhesion Promoters: Priming a surface can significantly improve initial and ultimate adhesion

to many materials such as plastics and paints.

• • Porous surfaces: Most porous and fibered materials such as wood, particleboard, concrete, etc.

need to be sealed to provide a unified surface.

• • Unique Materials: Special surface preparation may be needed for glass and glass-like materials,

copper and copper containing metals, and plastics or rubber that contain components that migrate
