Quick Details
-
Rated Output Voltage:
-
32.6 V
-
Welding Current/Voltage Range:
-
20-270A/AC90-540V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Guanjie
-
Pulse Frequency:
-
50/60HZ
-
Dimensions:
-
435*200*385
-
Use:
-
Welding machine
-
Weight (KG):
-
9.7 KG
-
COLOR:
-
Orange
-
Function:
-
Inverter IGBT Welding Machine
-
Product name:
-
Inverter MMA Arc Welder
-
Weld method:
-
Electrode Arc Welding
-
Keyword:
-
Portable Arc Welding Machine
-
Packing:
-
Carton Packing
-
Model:
-
ZX7-315
-
Rated Input Power (KW):
-
13.0
-
No-load voltage:
-
60
-
Input Frequency:
-
50/60hz
Quick Details
-
Rated Duty Cycle @40°C:
-
180%
-
Rated Input Voltage:
-
380V
-
Max. Load Power Capacity:
-
13.0KVA
-
Rated Output Voltage:
-
32.6 V
-
Welding Current/Voltage Range:
-
20-270A/AC90-540V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Guanjie
-
Pulse Frequency:
-
50/60HZ
-
Dimensions:
-
435*200*385
-
Use:
-
Welding machine
-
Weight (KG):
-
9.7 KG
-
COLOR:
-
Orange
-
Function:
-
Inverter IGBT Welding Machine
-
Product name:
-
Inverter MMA Arc Welder
-
Weld method:
-
Electrode Arc Welding
-
Keyword:
-
Portable Arc Welding Machine
-
Packing:
-
Carton Packing
-
Model:
-
ZX7-315
-
Rated Input Power (KW):
-
13.0
-
No-load voltage:
-
60
-
Input Frequency:
-
50/60hz

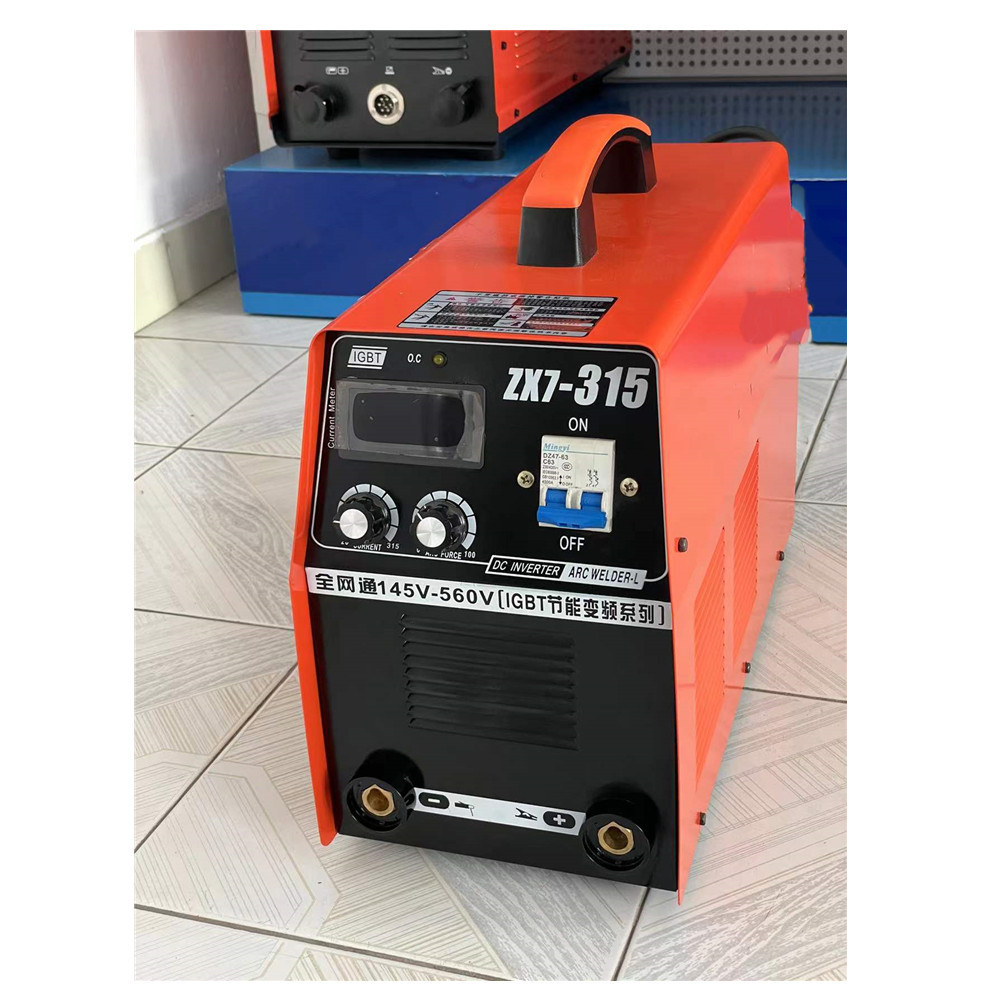

Inverter IGBT DC manual metal arc welder 220V solar arc welding machine price zx7315
ZX7 Inverter DC Arc Welding Machine Series
a.Applicable fields
Doors and windows, billboard processing, construction, installation industries, agricultural machinery, motorcycles, automobile maintenance, auxiliary installation of power stations, used in field construction units, pressure vessels and oil pipelines.
b.Functional features
1. Smaller size, easy to carry, suitable for use in various mobile occasions;
2. The machine has a high level of protection, and the new appearance design with corner guards is beautiful and atmospheric, which enhances the reliability of the machine;
3. The panel design is willful and intuitive, the inclined surface design conforms to ergonomics, the functional area design is intuitive and brief, and the switch knob operation is reliable;
4. Automatically adjust the output voltage to compensate for line loss, and the extension line can be longer than 100 meters;
5. High load continuity rate, using high-performance components and the company's patented three-proof air duct technology;
6. It has a strong ability to apply to the power grid, and is suitable for three-phase AC323-437V grid voltage, which can be matched with generators for field work.
C.welding process
Manual electrode horizontal fillet welding
Welding current: 140A
Welding rod model: J422, diameter 32mm
Plate type: 5mm carbon steel plate
Manual electrode vertical fillet welding
Welding current: 80A
Welding model: J507, diameter 2.5mm
Plate type: 8mm carbon steel plate
The main technical parameters
| Product model | ZX7-200 | ZX7-250 | ZX7-315S | ZX7-400 | ZX7-500 | ZX7-630 |
| Rated input voltage(V) | 1-phase 220±15% | 1-phase 220±15% | 3-phase 380±15% | 3-phase 380±15% | 3-phase 380±15% | 3-phase 380±15% |
| Input frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated input power(KVA) |
8.1(Manual welding)
5.5(TIG welding) |
5.9 | 13 | 18.2 | 23.8 | 34.9 |
| Current adjustment range(A) |
40-200(Manual welding)
20-200(TIG welding) |
30-190 | 40-280 | 40-380 | 40-480 | 50-630 |
|
40℃60% Transient load rate output
(MIG/MMA,A/V) |
140(Manual welding)
160(TIG welding) |
150 | 230 | 327 | 392 | 50-630 |
|
40℃100% Transient load rate output
(MIG/MMA,A/V) |
120(Manual welding)
140(TIG welding) |
120 | 180 | 253 | 304 | 488 |
| Thrust adjustment(A) | built-in thrust | built-in thrust | 0-100 | 0-100 | 0-100 | 0-150 |
| No-load voltage(V) |
58(Manual welding)
15(TIG welding) |
60 | 60 | 68 | 68 | 90 |
| No-load loss(W) | 40 | 40 | 80 | 80 | 80 | 300 |
| Efficiency(%) | 80 | 85 | 85 | 85 | 85 | 85 |
| Power factor | 0.73 | 0.7 | 0.93 | 0.93 | 0.93 | 0.93 |
| Insulation class | F | H | F | F | F | H |
| Enclosure rating | IP21S | IP21S | IP21 | IP21 | IP21 | IP21 |
| Weight(kg) | 5 | 5 | 9.7 | 14.9 | 15.9 | 16.9 |
| External dimensions(mm) | 378*150*315 | 378*150*315 | 435*200*385 | 445*235*415 | 445*235*415 | 445*235*415 |
ZX7 Inverter DC Arc Welding Machine Series Products
