Quick Details
-
Brand Name:
-
liangong
-
Model Number:
-
WGW
-
Product name:
-
high temperature furnace/temperature chamber usage pull test
-
Temperature envelope:
-
200°~1100°
-
All tropical long:
-
150mm
-
selection of furnace dimensions:
-
R90*300(as needs)
-
Temperature fluctuation:
-
≤600℃(±2℃),600~900℃(±3℃),≥900℃(±4℃)
-
Temperature gradient:
-
≤600℃(2℃),600~900℃(3℃),≥900℃(4℃)
-
Instrument precision:
-
≥0.3
-
Temperature control:
-
PID Automatic Control
-
design:
-
three sections temperature control design
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
liangong
-
Model Number:
-
WGW
-
Product name:
-
high temperature furnace/temperature chamber usage pull test
-
Temperature envelope:
-
200°~1100°
-
All tropical long:
-
150mm
-
selection of furnace dimensions:
-
R90*300(as needs)
-
Temperature fluctuation:
-
≤600℃(±2℃),600~900℃(±3℃),≥900℃(±4℃)
-
Temperature gradient:
-
≤600℃(2℃),600~900℃(3℃),≥900℃(4℃)
-
Instrument precision:
-
≥0.3
-
Temperature control:
-
PID Automatic Control
-
design:
-
three sections temperature control design
*Usage and Characteristics*
*Advantages*

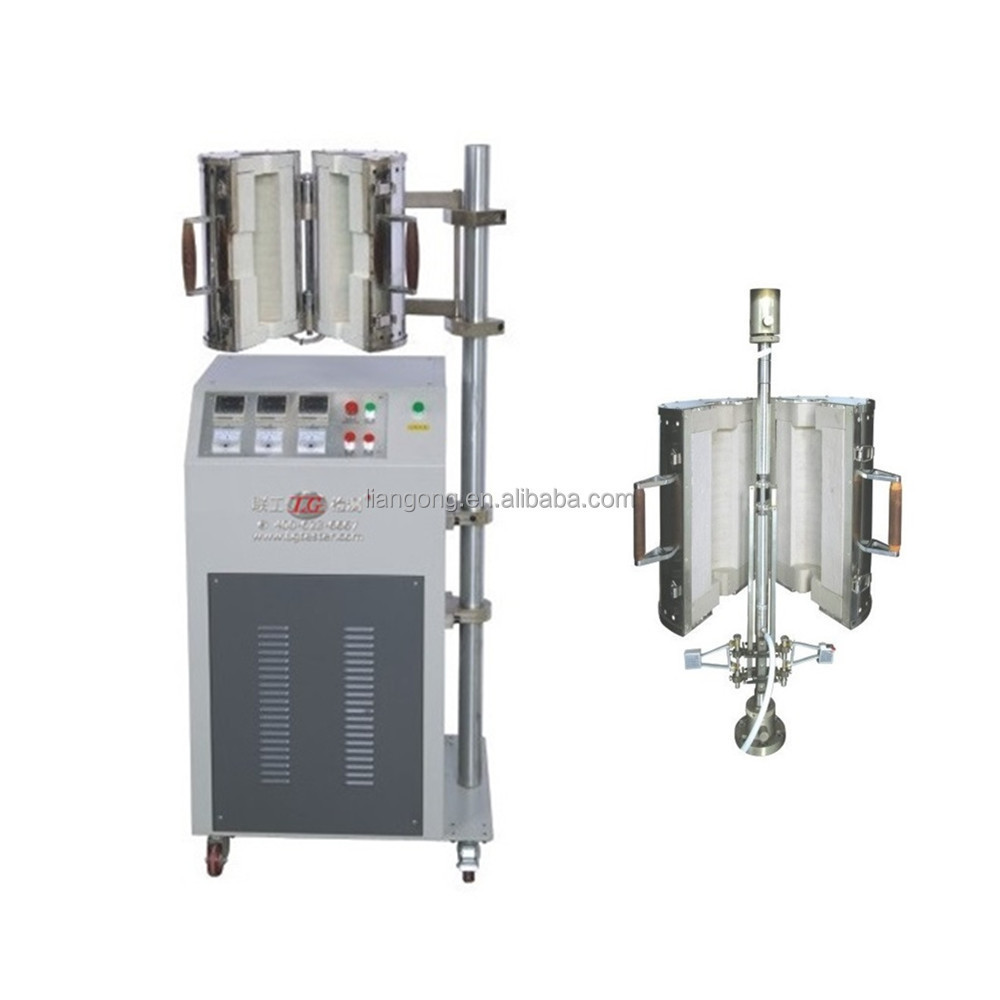

1.The high temperature furnace adopts drum-type, split structure, electrical resistance wire heating, it can realize the precision of temperature control through control heating time percentage.
2. Temperature controller with PID Mode, digital display the setting temperature and measuring temperature.Test temperature overshoot small and Volatility small
3. This high temperature Furnace is equipped with one crank arm bracket, which is connivent to move the furnace into the testing space and move out after finished.
4. Over-temperature alarm device is also equipped, it can be used for promote action.
*Main Technical Parameters*
|
Three sections temperature control design
|
Three sections temperature control design
|
|
|
Temperature Range
|
200~ 1100℃
|
|
|
Temperature Accuracy
|
according to HB5195-96B standard amassments.
|
|
|
Soaking Zone Length
|
Isothermal section 150mm
|
|
|
Inner size
|
Φ90×300mm can be customized on user’s requirements
|
|
|
Temperature Control Mode
|
Direct-type (Thermocouple tied with specimen) or indirect type (Thermocouple from furnace side entry)
|
|
|
Power
|
3Kw
|
|
|
Temperature fluctuation
|
≤600℃ ±2℃
600~ 900℃ ±3℃
≥900℃ ±4℃
|
|
|
Temperature Gradient
|
≤600℃ 2℃
600~ 900℃ 3℃
≥900℃ 4℃
|
|
|
Temperature Measuring Instrument Accuracy
|
No less than 0.3 Class
|
|
