Quick Details
-
Brand Name:
-
UNIQUE
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Requried
-
Product name:
-

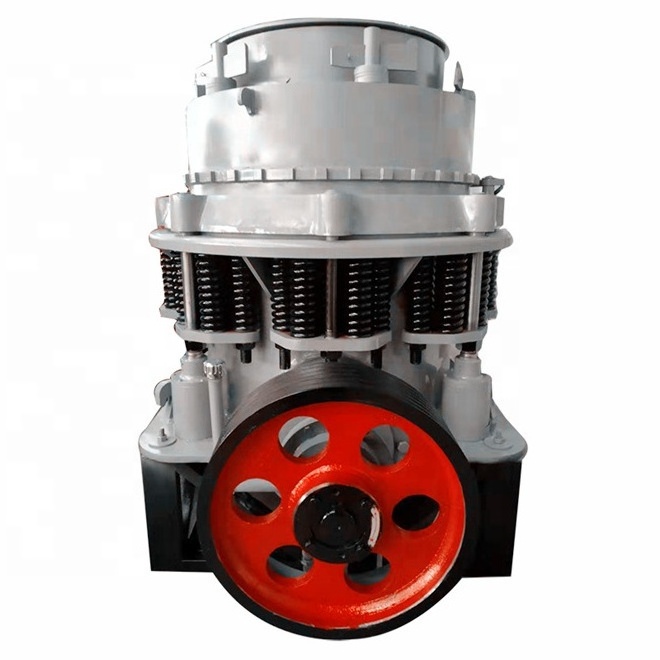

Symons Cone Crusher
-
Spare parts supply:
-
Lifelong Provide
-
Keyword:
-
Granite Stone Crusher
-
Feeding size:
-
125-210mm
-
Product type:
-
Marble Crushing Machine
-
Usage:
-
Mining Crushing
-
Factory visit:
-
Welcomed Warmly
Quick Details
-
Application:
-
aggregate, ore crushing
-
Capacity(t/h):
-
15~1000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Requried
-
Product name:
-
Symons Cone Crusher
-
Spare parts supply:
-
Lifelong Provide
-
Keyword:
-
Granite Stone Crusher
-
Feeding size:
-
125-210mm
-
Product type:
-
Marble Crushing Machine
-
Usage:
-
Mining Crushing
-
Factory visit:
-
Welcomed Warmly
The cone crusher of PSG series is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above. The crusher has the feature of high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.
The quality of material use for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in order to reduce the circulation load. Furthermore, by introducing the hydraulic clear chamber into the crusher of middle and large size, the down time is reduced accordingly. The customers can choose different type of chamber upon different request freely, because the wide ranges of products are provided.
Advantages of Symons Cone Crusher
1. high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.
2. Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania etc.
3. It is made of high quality raw material and has reasonable structure design. So it has longer running performance and even granularity.
4. The middle and large size symons cone crusher adopts hydraulic clear chamber. That reduces its down time.
Application of Symons Cone Crusher for Sale
It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Working Principle of Symons Cone Crusher :
When it is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Main Specifications of Symons Cone Crusher:
| Type | Model | Cavity Type |
Dia. of Cone (mm) |
Adjusting Range of Discharge Opening(mm) |
Recommend Feeding Size When The Minimum Output Size(mm) |
Max Feed Size (mm) |
Capacity (t/h) |
Mainmotor Power(kw) |
Weight (kg) |
Overall Dimension (mm) |
| 2'FT | PSGB-0607 | Standard fine | 600 | 6-38 | 70 | 60 | 16-50 | 22 | 4500 |
2195* 1158* 1651 |
| PSGB-0609 | Standard medium | 10-38 | 95 | 80 | 18-65 | |||||
| PSGB-0611 | Standard coarse | 13-38 | 110 | 90 | 22-70 | |||||
| PSGD-0603 | Short head fine | 3-13 | 35 | 30 | 9-35 | |||||
| PSGD-0605 | Short head coarse | 5-16 | 50 | 40 | 22-70 | |||||
| 3'FT | PSGB-0910 | Standard fine | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 |
2656* 1636* 2241 |
| PSGB-0917 | Standard coarse | 13-38 | 175 | 150 | 59-163 | |||||
| PSGB-0918 | Standard super coarse | 25-38 | 178 | 150 | 118-163 | |||||
| PSGD-0904 | Short head fine | 3-13 | 41 | 35 | 27-90 | 10530 | ||||
| PSGD-0906 | Short head medium | 3-16 | 76 | 65 | 27-100 | |||||
| PSGD-0907 | Short head coarse | 6-19 | 102 | 85 | 59-129 | |||||
|
4.25' FT |
PSGB-1313 | Standard fine | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 |
2983* 1866* 3156
|
| PSGB-1321 | Standard medium | 16-38 | 210 | 178 | 132-253 | |||||
| PSGB-1324 | Standard coarse | 19-51 | 241 | 205 | 172-349 | |||||
| PSGB-1325 | Standard super coarse | 25-51 | 259 | 220 | 236-358 | |||||
| PSGD-1306 | Short head fine | 3-16 | 64 | 54 | 36-163 | 22590 | ||||
| PSGD-1308 | Short head medium | 6-16 | 89 | 76 | 82-163 | |||||
| PSGD-1310 | Short head coarse | 8-25 | 105 | 89 | 109-227 | |||||
| PSGD-1313 | Short head super coarse | 16-25 | 133 | 113 | 209-236 |
Packaging
:standard Container Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping
:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After-sales service support
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Normally,Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
