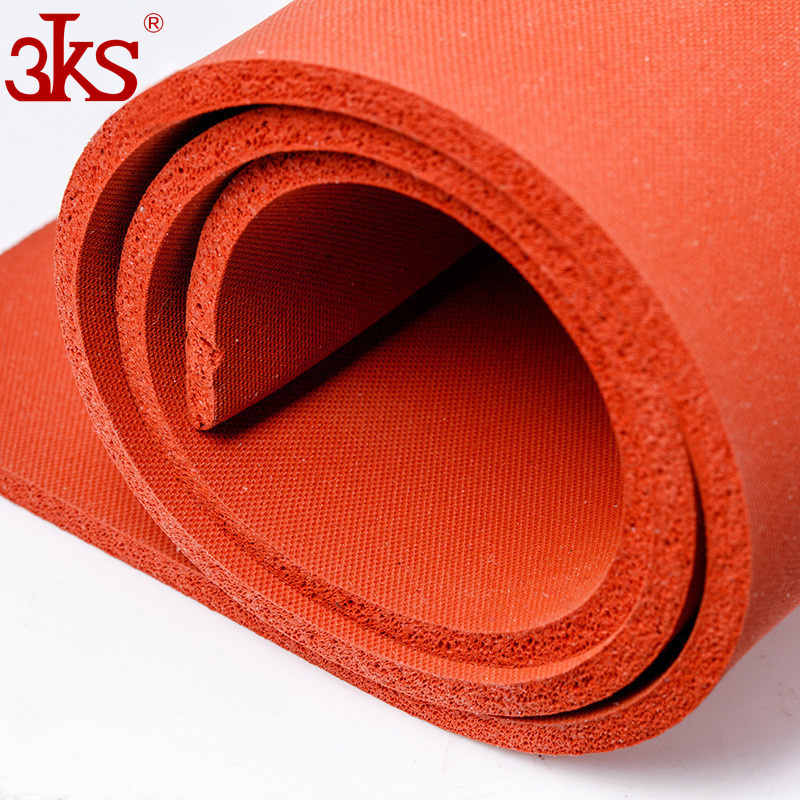

Silicone Sponge Rubber Sheet Plate Foam Pad High Temp Heat Press Die Cut with Adhesive

Silicone Sponge Rubber Sheet Plate Foam Pad High Temp Heat Press Die Cut with Adhesive

Before you place the order ,please make sure the item details with us !!!

The silicone foam board introduces foreign foaming technology, the foaming density is uniform, and the density can be 0.5 ~ 0.85, which can make the product soft and light, with good resilience, strong stretching, and has the advantages of odorless, non-toxic, and odorless.

Foamed silicone is the most common product category in silicone products Due to its stable chemical properties, high adsorption performance, high mechanical strength, and good thermal stability, foamed silica gel is widely used in high-temperature parts in automobiles, aerospace, computers, mechatronics, fax machines, printers, and automobile machinery bodies. Inside, kitchen appliances, home appliances and other equipment

1. This product has excellent heat-resistant air aging performance, ozone resistance, insulation, and resistance to fuel oil and lubricating oil. It can work in air or oil medium at a temperature of -60~+250℃.

2. Strong sealing ability can effectively prevent tiny particles and floating rain.

3. Sealing, dust-proof, moisture-proof, airtight and shading, vibration isolation, fire prevention

4. Used in electronic equipment and vehicle internal vibration isolation

5. Available for punching various sealing gaskets and backing plates with strict requirements

6. When damp, water or temperature rises, the change is small. Even if the silicon dioxide generated by short-circuit burning is still an insulator, this ensures that electrical equipment continues to work, so it is most suitable for making wires, cables, and lead wires.

Performance parameter

1. It has the functions of three-proof, water-increasing and UV-proof, and can be used outdoors for a long time.

2. Insulation grade: H grade

3. Power frequency withstand voltage: greater than or equal to 15KV/mm

4. Tensile breaking strength: 3.5Mpa

5. Elongation at break: 480%

6. Tear strength: 12KN/M

7. Brinell hardness: 35 ± 5 degrees

8. Relative density: 0.85±0.5g/cm³

9. Typical value of performance test method Physical performance color: gray red black white brown orange Thickness: (mm) Tolerance 0.8mm-60mm±0.1 Standard width, (mm) 500-1500 Pressure deflection, psi (kPa) Force measured at 25% deflection ASTM D 1056 Compression set, maximum% at 158ºF (70ºC) ASTM D 1056 test D<1 at 212ºF (100ºC) ASTM D 1056 test D <5 Tensile strength, psi (kPa) ASTM D 412 45 (310) elongation ,% ASTM D 412 80 flame retardancy and outgassing Flame Retardancy UL94 V-0 and HF-1 Class Flame Spread Index (Ls) ASTM E 162<25 Smoke Density (Ds) ASTM E 662 Test in 4.0 minutes <50 Test in 1.5 minutes<20 Toxic gas emission level SMP-800CPASS

10. Sheet size 500mm*500mm 500mm*1000mm, thickness 1mm-50mm

Application field edit

1. It is suitable for heat transfer printing equipment, electronic appliances, mechanical seals and other industries. It can solve the supporting needs of some civil industries in various aspects of equipment. It is suitable for electronic appliances, mechanical sealing and other industries. It can be used for pressing, shock absorption, and can be used for a long time without cracking. It can be die-cut into sheets of any shape according to different requirements of customers. Glue can be prepared.

2. Transportation: application in shipbuilding industry: marine silica gel anti-vibration parts. Hydraulic system silicone seals, oil seals, automobile brake rubber caps. Leather bowl. Hose. Foamed silicone seal, shaft seal of exhaust system. Spark plug sleeve. Ignition wire. Piston ring. Rotary engine dynamic use "O" ring.

3. Radio, electrical machinery: in the telecommunications industry: medium and high voltage caps for televisions and oscilloscopes. Silicone sealing ring and silicone insulating sleeve of AOTEMAKE potentiometer. The shell of the thyristor tube. Sealing ring in contact with gas. Insulating casing. Switch protective cover, electronic computer, conductive rubber sheet on telephone surface, keyboard switch, varistor, etc. Silicone sealed electric head. Insulation of motor stator coil

4. Application in the instrument and instrument industry: various silicone rubber lead wires (used for capacitor radiators, coils, transformers, transformers, lead wires) refrigerator defrost wires. Heating wire, etc. Diaphragm of sensitive element in various regulators, heating plate for instrument, needle-punch resistant rubber sheet (Gourous Silicone Rubber). Instrument shock absorber. Silicone foam color lamp cover for indicator light. Drying box. Electric stove. Far-infrared heater door seals and moldings. Sponge door seals (replace toxic asbestos door seals). Sealing of the boiler. The seal of the refrigeration unit and the silicone hose.
