Quick Details
-
Material:
-
304 stainless steel,2.0mm,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,ISO9001,BHMA, Fidelo/Opera,SASO
-
Mortise:
-
ANSI Standard Mortise or Din Standard
-
Card option:
-
RFID,M1K / S50 contactless card or 125 KHz Temic card
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Color:
-
Sliver color or Brass color w/PVD coating
-
Suitable door thickness:
-
29-60 mm
-
type:
-
1680 events
-
Application:
-
star hotel,apartment/flat,inn,resort,residential,motel,dormitory
-
Warranty:
-
1 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ORBITA
-
Model Number:
-
E3092
-
Material:
-
304 stainless steel,2.0mm,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,ISO9001,BHMA, Fidelo/Opera,SASO
-
Mortise:
-
ANSI Standard Mortise or Din Standard
-
Card option:
-
RFID,M1K / S50 contactless card or 125 KHz Temic card
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Color:
-
Sliver color or Brass color w/PVD coating
-
Suitable door thickness:
-
29-60 mm
-
type:
-
1680 events
-
Application:
-
star hotel,apartment/flat,inn,resort,residential,motel,dormitory
-
Warranty:
-
1 years

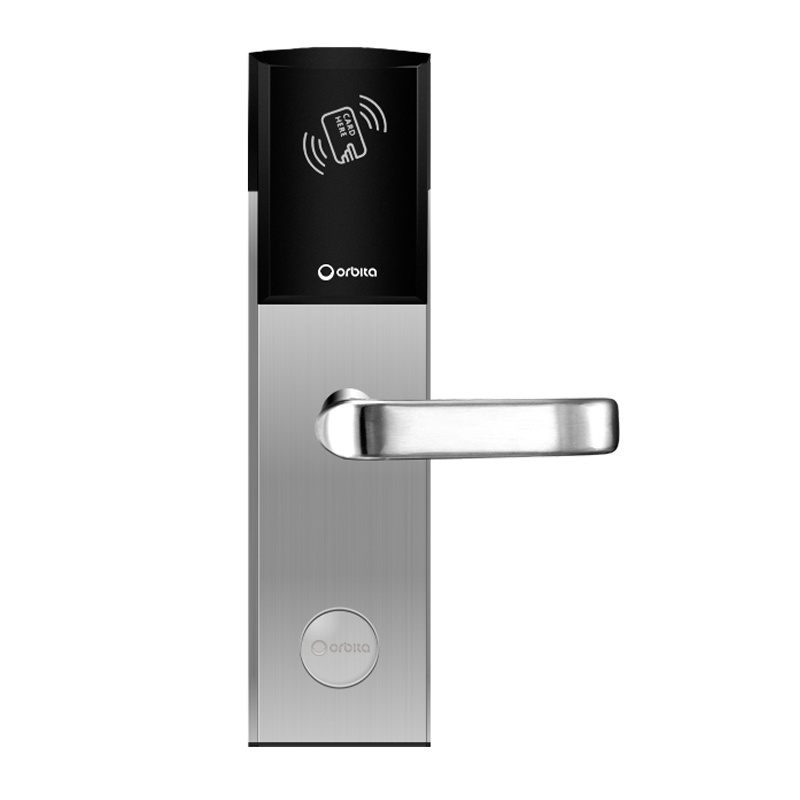

Orbita New Rfid Sensor Professional Safe keyless entry door lock Electronic door locks for hotel
| Main Feature & Function | ||
|
ORBITA RFID hotel swipe key card door lock--Waterproof Design | |
| Key feature |
Waterproof Function ,Good Performance Under Hyperthermia and Humid Environment. |
|
| Material | Complete 304 Stainless Steel ,2.0mm. | |
| Mortise type | 5 latch ANSI U.S. standard mortise. | |
| Certificates | CE,FCC,BHMA ((America army standards,unlock last more than 800,000 times circles ). | |
| External Panel Dimension | L290*W60*H34mm. | |
| Keycard Options | 125khz Temic card, 13.56 mhz M1/MF card,RFID card. | |
| PMS system | Interface with most of the PMS systems, Fidelio/Opera registered. | |
| Opening Records | 240pcs. | |
| Door Thickness Range | 30-60mm. | |
| Color Optional | silver, gold (PVD). | |
| Application |
star/economic hotel, resort, apartment, dormitory,motel, cruise ship etc. |
|
| Warranty time | 1 years. | |
| life span | About 10 to 15 years. | |
Lock Specifications
|
Description |
Technical Parameters |
|
Product name: |
Orbita sdk api m1 card digital rfid hotel lock |
|
Power: |
DC6V or 4pcs #5 AA alkaline batteries, |
|
Static Electric Current: |
Static Load<10Ua,Working Load: 100Ma-150Ma |
|
Working Electric Current: |
100-300mA |
|
Card type: |
M 1K card |
|
Battery Life: |
18 months’ duration |
|
Lock operation records: |
240pcs |
|
Insert Reliability: |
No mistake even inserted continuously 2000 times |
|
Insert Guarantee: |
Still work well after inserting any illegal card |
|
Low Voltage Warning: |
low Battery Voltage warning. (Lower than 3.5 V) |
|
mortise: |
Ansi standard |
|
Humidity: |
20%-90% |
|
Working tempreture: |
-50°C-80°C |
|
Suitable door: |
Wooden door, fire-proof door, metal door and so on. |
Fancy Feature :
ANSI standard mortise.Inside dead bolt.Inside handle retracts latches and deadbolts
1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
1.Packing Size(W*D*H):490*360*450mm
2.Package sort:PP bag+foam
3.Net/Gross Weight(KGS):16.3/17.0
4.Qty/Carton:6 pieces in one carton
