Quick Details
-
Product Name:
-
code 1500 light controller
-
Function:
-
control the stage light by dmx512 signal
-
Material:
-
matel
-
Color:
-
Black
-
Warranty:
-
One Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRIGHT MOON
-
Model Number:
-
BM-121
-
Product Name:
-
code 1500 light controller
-
Function:
-
control the stage light by dmx512 signal
-
Material:
-
matel
-
Color:
-
Black
-
Warranty:
-
One Year

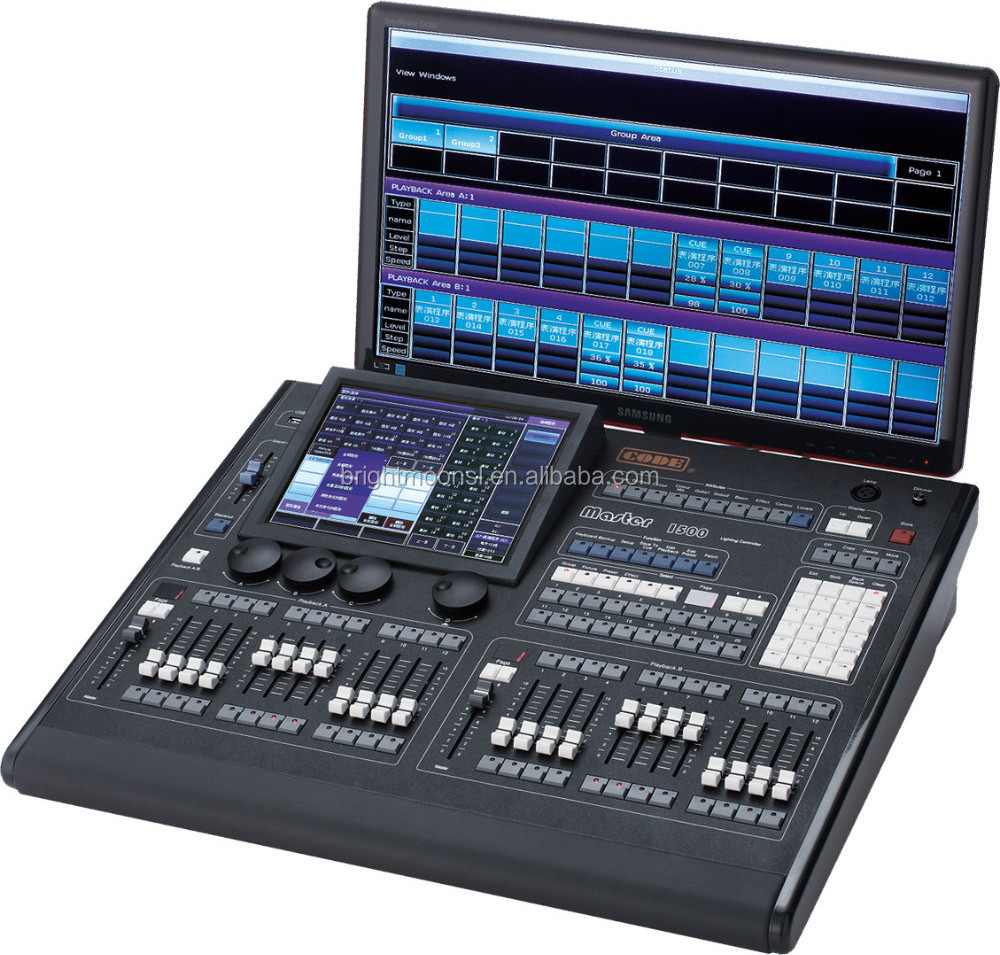

Code master 1500 dmx 512 light controller
Total 1536 channels with 3 individual optical isolated DMX outputs.
Maximum 400 Units for patching all kinds of Fixtures. ·
Fixtures within 80 channels are available. ·
10.4" TFL-LCD touch screen for operating. ·
Offers a VGA interface for external monitor to display more edited information. ·
Up to 1120 playbacks can be programmed which controlled by 24 playback faders×30 pages together with 20 playback keys×20 pages. Totally 44 playbacks can be run at the same time. (with 24 playbacks by faders and 20 playbacks by keys.) ·
Offers 4 optical encoders for details' setting. ·
Up to 400 Groups. ·
Up to 400 Presets. ·
Up to 400 Macro Shows can be saved which allow to be triggered by external MIDI time code or internal clock. ·
Up to 400 User-Defined Shape Effects. ·
Shortcut area provides a quick way for selecting Fixtures, Groups, Presets or Custom Shape Effects. ·
Color-mix system provides a color palette for users to control fixtures with RGB or CMY channels conveniently. ·
Shape Generator provides various effects which can be modified with different parameters. User-Defined Shape Effects can be saved for convenient calling out again. ·
Provides 5 levels of precedence for playbacks. ·
Chases can be paused separated. ·
Divided into two sections as, Playback A and Playback B. Allows playbacks on Playback A or B stand by output. ·
Pre-locate and flash function for playbacks. ·
Windows on touch screen can be changed into other display options. ·
Provide over 8000 Libraries in system. Enable users to edit System Library or create custom Library. R20 library files can be loaded in as the custom library. ·
Support multiple DMX network protocols. DMX 512 signal can be transmitted over network. ·
Freely download Upgrade Version and System Library. ·
An internal electronic disk allows user to backup show data. ·
USB interface allows users to backup shows in external disk. ·
Music trigger function. ·
Blackout function. ·
Provide MIDI in and out interfaces to connect and work with other consoles. ·
Option: 12V auxiliary light. ·
Power supply: AC100-240V, 50-60Hz. ·
Size: 650mm×490mm×130mm. ·
Net weight: 19kg approx.
1.Factory Price with high quality
2.Market our own products
3.Professional QC team to check the products before shipment
4.Professional R&D department
5. Fast lead time and delivery time
12 months warranty If there is something wrong with the product, please contact us freely and send us necessary pictures or video for analyzing. Then we will guide you to fix it and provide the replacement parts for free if needed.
