SIL Aluminum Stage Lighting Truss Lift Tower Speaker Truss for Line Array

SIL Aluminum Stage Lighting Truss Lift Tower Speaker Truss for Line Array

FOB Reference Price: Get Latest Price

≥2 Meters

US $58

≥100 Meters

US $56

≥1000 Meters

US $48

≥10000 Meters

US $35

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Line Array Tower System

Material:: Aluminum 6061-T6

Cross Section Size:: 290 mm/400 mm/520 mm

Truss Segment Lengths:: 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, 3 m

Tower Height:: 6.5m~9.5m

Truss Colors:: Silver, black, or customized

Tower Segments:: Top section, sleeve block, basement, hoist

Connector:: Conical coupler

Keywords:: Lighting truss, stage truss, aluminum truss, roofing truss

Usage:: Outdoor events, wedding, party, concerts

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SIL

Model Number:: SLAT-03

Product name:: Line Array Tower System

Material:: Aluminum 6061-T6

Cross Section Size:: 290 mm/400 mm/520 mm

Truss Segment Lengths:: 0.5 m, 1 m, 1.5 m, 2 m, 2.5 m, 3 m

Tower Height:: 6.5m~9.5m

Truss Colors:: Silver, black, or customized

Tower Segments:: Top section, sleeve block, basement, hoist

Connector:: Conical coupler

Keywords:: Lighting truss, stage truss, aluminum truss, roofing truss

Usage:: Outdoor events, wedding, party, concerts

SIL Aluminum Stage Lighting Truss Lift Tower Speaker Truss for Line Array

SIL Truss Systems:

Established in 2013, SIL has been engaged in manufacturing high standard aluminum truss for 10 years. Throughout the years SIL established itself as one of the leading aluminium trussing manufacturers & wholesalers in China. We have been working on building up a good relationships within our customers network, and now our products can be found all over the world.

SIL is proud to offer great services including designs, static calculations and custom engineering to any field in which our products can be used. Our aluminum trussing, accessories and other products are mostly used in entertainment industry, exhibitions, corporate events, building constructions, architectural designs, advertisement market and sport events market. Our products can be found under many various labels such as stage truss or staging truss, lighting truss, light truss, DJ truss,
exhibition truss etc.

Many applications of the SIL product range include church sets, finish lines, exhibition booths, aluminum stages, trade show exhibit booths, display booths, exhibit display booth, trade show display, DJ shows, Dj trussing booth, truss roofs, portable displays and many others.

Spigot Truss

Ladder/triangle/box

GP Truss

12" x 12"

Bolt Truss

Ladder/triangle/box

PA Tower

290/400/520 mm

LED Screen

290/400/520 mm

LED Ground Support

I-beam/Base/Bar

DJ Truss

DJ show

Exhibit & Display

10'*10'/10'*20'/2 0'*20'

Finish Line Truss

Gantry truss

Pitched Roof

10*8 m/ 12*10 m

Arched Roof

8*6 m/10*6 m

Dome Roof

290/400/520 mm

Crank Stands

Light/medium/heavy duty

Truss Clamps

Made from high tensile, aircraft grade, extruded aluminum

Custom Truss

Customization Service

Description：

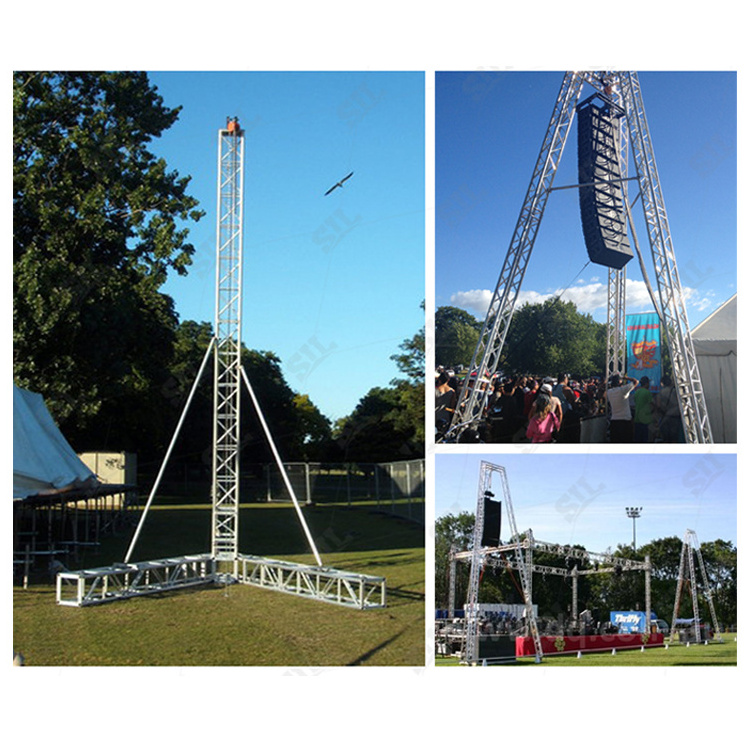

SIL offers a wide range of PA/Line Array Tower System designed to fit events of basically any size. The great variety of the led screens dimensions and designs grants you a suitable choice for concerts, exhibitions and a large variety of outdoor events.

Features:

* Modular Design For Fast Assembly.
* Easy Transport.
* 6061-T6 Aluminum Construction.
* Adjustable Leveling Pads.
* Tower Hinged For Easy Loading.
* Integrated Motor Pick Point.
* Works With Many Popular Array Designs.

* Application range includes concert stages, larger exhibit displays or any other types of indoor or outdoor events.

Specification:

Product Name	PA/Line Array Tower
Brand	SIL
Model No.	SLAT-03
Material	Aluminum alloy 6061-T6, or 6082-T6
Tower Height	6.5M ~9M
Truss Segments	290290 mm, 400400 mm, 520520 mm, 400600 mm, 520*760 mm
Truss Segment Types	Spigot truss, GP truss, bolt tube truss, bolt plated truss.
Tower System	Top section, sleeve block, basement, braces, hoists, clamps, accessories
Wind Load	28m/s - 100km/h - 62mph (Max. basic wind speed)
Keywords	Stage truss, staging truss, lighting truss, light truss, aluminum truss, roofing truss, roof truss system, outdoor convert roof truss
Application	Concert, events, exhibits, weddings, performance, school, fashion show,catwalks, theatre, churches, fashion runways
Connector	Conical coupler

Aluminum Tubes

● Aluminium stage trusses are generally made of 6061-T6 aluminum, or higher quality 6082-T6 aluminum.

● Main tube dimension is diameter 50 mm, and the tube thickness is 3 mm.

● Brace tube dimension is diameter 30 mm, and the thickness is 2 mm.

Manufacturing Technique

The manufacturing process for aluminum lighting truss is cutting, processing, welding, polishing, painting, etc.

Applications

The completed aluminum trusses are widely used in performances, exhibitions, event celebrations, background layout, lighting and
sound hanging, etc.

Conical coupler

● Double Ended Conical Coupler with Cotter Body Clips Tapered Shear Pin Stage Lighting Truss Pipe Connector ● High-grade and lightweight aluminum which is easy for transportation and setup.

● Stage truss tube Joints interconnection hardware.

Truss Sections Connection

● U sing the stage truss tube Joints interconnection hardware conical coupler.

● Quick, easy-to-use, trouble-free installation.

● L ightweight Aluminum material.

Tent System

Stage System

Bleacher System

Barrier System

Dance Floor

Cable Protector

About Us

Established in 2013, SIL has been one of the leading manufacturers of aluminum stage, truss and tent. With 10 years’ experience, SIL can offer the perfect solutions for entertainment industry, corporate events, concerts, theaters, churches, schools, exhibitions, indoor & outdoor events, and event architectural designs, fields of building constructions, advertisement market and sport events market.

SIL covers a factory area of 10,000m², located in Panyu District, Guangzhou, China. Our factory introduces numerous advanced extrusion machine, drilling punching, forming and other equipment.

With the 6S management, SIL has established a strict management system, such as strict online production and inspection, final product erection test for each order, to guarantee the product precision and quality.

Our factory is located in Guangzhou, China and covers over an area of 10,000 square meters with a team of 150 staffs, owning top advanced processing equipment from Germany, Japan, Korea and Taiwan. Our products all pass ISO9001, TUV, and CE test report. Also, we have our own QC system, and can do 100% inspection for each product before packing. After inspection, we use good quality non-woven bag inside and reinforced cardboard cartons with clear labeling. What’s more, we have over 1000 square meters' show room and professional photographers to provide you best clear pictures. All of our products can be guaranteed 2 years from the date of purchasing except for products being damaged by man-made.

Q1: Are you a trading company or factory? Do you have a show room?

A1: We've been one of the leading manufacturers of stage, truss and tent for over 10 years in China. Our factory is located in Guangzhou, covering over 10,000 ㎡ area, 150 staff and a 1000 ㎡ show room.

Q1: Can you do OEM/ODM?
A1: Yes, OEM/ODM is available. we have focused on furniture manufacturing for more than 10 years, and no problem to meet your needs.

Q2: What's your minimum quantity order?
A2: 50 pcs for one design. If you can mix few items in one container, we can accept small quantity for first trial.

Q3: Can I get a sample to test the quality?
A3: Yes, we accept the sample delivery before the formal order.

Q4: What about the lead time for mass production?
A4: Generally, after receiving 50% deposit and confirming the drawing, the delivery time will take 18-20 days.

Q5. What's your warranty year?
A5: The warranty for our product is 2 years.
