Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tisco or as required
-
Model Number:
-
ASTM F136 B348
-
Grade:
-
Gr 1 Gr 2 Gr 3 Gr 5 pure titanium
-
weight:
-
0.00354 * r^2 * length
-
Product name:
-

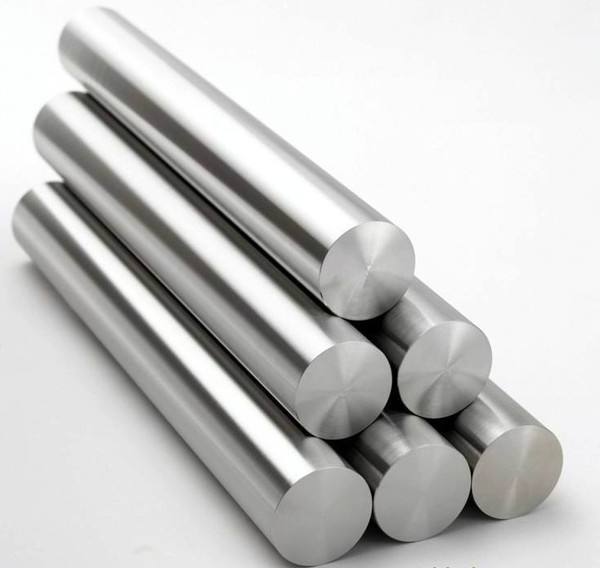

Titanium Round Bar
-
Standard:
-
ASTM B348/F136
-
Surface:
-
Bright
-
Material:
-
Titanium GR1/GR2/GR3/GR5/GR7/GR9/GR12/GR13/GR14
-
Diameter:
-
1-200 mm or customized
-
Certificate:
-
ISO9001:2015
-
Delivery Time:
-
5-7 Days
-
Aplication:
-
Industrial Medical
-
MOQ:
-
100kg
Quick Details
-
Application:
-
Industrial
-
Length:
-
6m 3m or customized
-
Technique:
-
Forged
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tisco or as required
-
Model Number:
-
ASTM F136 B348
-
Grade:
-
Gr 1 Gr 2 Gr 3 Gr 5 pure titanium
-
weight:
-
0.00354 * r^2 * length
-
Product name:
-
Titanium Round Bar
-
Standard:
-
ASTM B348/F136
-
Surface:
-
Bright
-
Material:
-
Titanium GR1/GR2/GR3/GR5/GR7/GR9/GR12/GR13/GR14
-
Diameter:
-
1-200 mm or customized
-
Certificate:
-
ISO9001:2015
-
Delivery Time:
-
5-7 Days
-
Aplication:
-
Industrial Medical
-
MOQ:
-
100kg
Factory supply top grade titanium alloy bar Gr 1 Gr 2 Gr 3 Gr 5 pure titanium rod
Product Details
|
Product
|
Factory supply top grade titanium alloy bar Gr 1 Gr 2 Gr 3 Gr 5 pure titanium rod
|
|
|
|
|||
|
Standard
|
ASTM/ GB/ JIS etc
|
|
|
|
|||
|
Material
|
Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr6,Gr9, Gr11, Gr12 ,Gr16, Gr17,Gr25
TA0,TA1,TA2,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
|
|
|
|||
|
Dimension
|
Diameter: 4-180 mm or customized;
Length: 1000/3000/6000/12000 mm or customized
|
|
|
|
|||
|
ASTM
ASME
|
GB
|
JIS
|
Composition (wt%)
|
|
|
|
|
|
Mechanical properties
|
|||||
|
|
|
|
N
max
|
C
max
|
H
max
|
Fe
max
|
O
max
|
Others
|
Tensile strength
Mpa, min
|
|||||
|
Gr.1
|
TA1
|
Class1
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
|
240
|
|||||
|
Gr.2
|
TA2
|
Class2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
|
345
|
|||||
|
Gr.3
|
TA3
|
Class3
|
0.05
|
0.08
|
0.015
|
0.30
|
0.35
|
|
450
|
|||||
|
Gr.4
|
TA4
|
Class4
|
0.05
|
0.08
|
0.015
|
0.50
|
0.40
|
|
550
|
|||||
|
Gr.5
|
TC4
Ti-6Al-4V
|
Class60
|
0.05
|
0.08
|
0.015
|
0.40
|
0.2
|
AI:5.5-6.75
V:3.5-4.5
|
895
|
|||||
|
Gr.7
|
TA9
|
Class12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
Pd:0.12-0.25
|
345
|
|||||
|
Gr.9
|
TC2
|
Class61
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
AI:2.5-3.5
V:2.0-3.0
|
620
|
|||||
|
Gr.11
|
TA9-1
|
Class11
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
Pd:0.12-0.25
|
240
|
|||||
|
Gr.23
|
TC4 ELI
|
Class60E
|
0.03
|
0.08
|
0.013
|
0.25
|
0.13
|
AI:5.5-6.5
V:3.5-4.5
|
828
|
|||||
|
Product name type
|
ASTM Titanium GR1 Titanium Round Bar Titanium Rod Titanium Bar Price Per KG
|
|
Standard
|
GB/T2965, GB/T13810, ASTM F67, ASTM F136,ASTM F1295, ASTM B348, ASTM B381,ISO-5832-2(3), AMS4928, MIL-T-9047G
|
|
Titanium Type
|
Commercially Pure(CP) / Titanium in alloyed
|
|
Grade
|
Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 GR8 Gr9 GR10 Gr11 Gr12 Gr23
|
|
Diameter
|
3-350mm
|
|
Length
|
Max6000mm
|
|
Process
|
Forging ,Cold drawimg,Rolling.
|
|
Surface
|
Acid surface or polishing, sand blasted surface
|
|
Shape
|
Round, flat, square, hexagonal
|
|
Application
|
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc
|
Manufacturing Technique
Application
Titanium and titanium alloy, which is called "space metal", is widely used in aviation industry. In addition, due to its high intensity--can be up to 180Kg/mm², some special industries like shipbuilding industry, chemical industry, telecommunications equipment industry have increasingly taken it into application.
Warehouse
|
Material
|
Pure Titanium, Titanium Alloy
|
|
Standard
|
ASTM B338, ASME SB338, ASTM B861, DIN 17861, DIN17869, EN10204 etc.
|
|
Grade
|
Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12, Gr16 etc.
|
|
Brand
|
HONGBAO
|
|
OD(mm)
|
5mm~273mm
|
|
WT(mm)
|
0.5mm~22mm
|
|
Length(mm)
|
18000mm Max.
|
|
Technique
|
Seamless or Welded
|
|
Qualification
|
ISO9001, ISO14001, OHSAS18001, TS16949, LIOYD’S-ISO9001, PED, DNV.
|
|
Certificate
|
EN10204 3.1 or EN10204 3.2
|
|
Application:
|
Petrochemical, Heat Exchanger, Condenser, Medical, Chemical, Aerospace, Subsea, Oil, Sports, Bike and other Industries etc.
|
