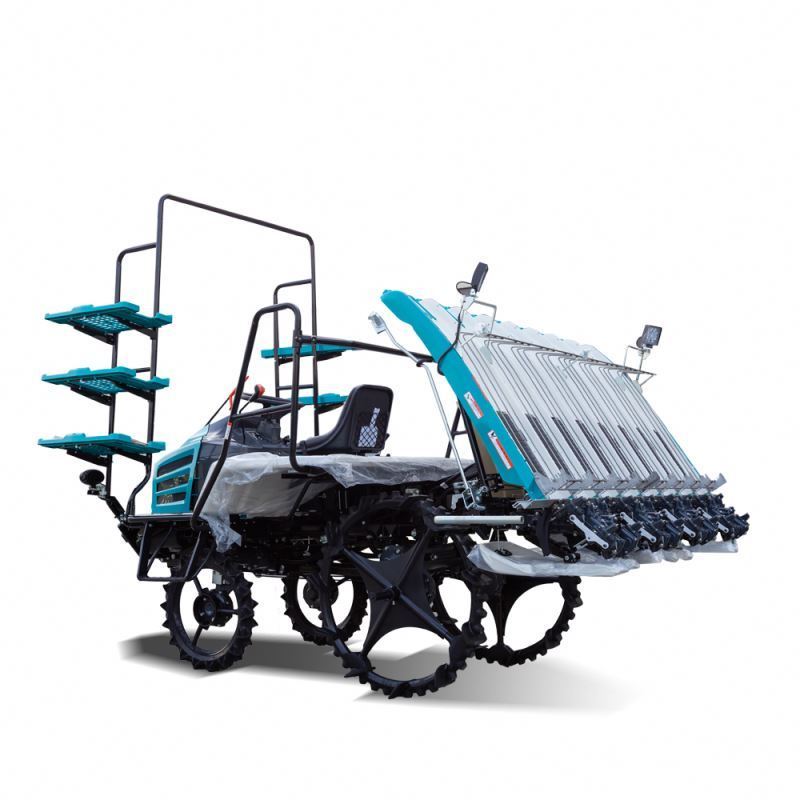

Changlin Diesel Engine High Speed 6 Rows Riding Rice Paddy Field Planting Machine

Changlin Diesel Engine High Speed 6 Rows Riding Rice Paddy Field Planting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $11744

≥5 Sets

US $11544

≥10 Sets

US $11344

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Use:: Rice Paddy Transplanter

Place of Origin:: Jiangsu, China

Brand Name:: Changlin

Weight:: 3780 KG

Dimension(L*W*H):: 3090x2220x2580

Warranty of core components:: 15 Months

balance systme type:: Electronic

fuel type:: Diesel

rate power:: 17.8KW

rate rpm:: 3600

working lines:: 8

Line spacing(mm):: 250

Hole distance adjustment mode:: Handle adjustment

planting arm type:: Rotary transplanting

Quick Details

Number of Rows:: 6, 8

Type:: Ride Type

Application:: Farm

Use:: Rice Paddy Transplanter

Place of Origin:: Jiangsu, China

Brand Name:: Changlin

Weight:: 3780 KG

Dimension(L*W*H):: 3090x2220x2580

Warranty of core components:: 15 Months

balance systme type:: Electronic

fuel type:: Diesel

rate power:: 17.8KW

rate rpm:: 3600

working lines:: 8

Line spacing(mm):: 250

Hole distance adjustment mode:: Handle adjustment

planting arm type:: Rotary transplanting

Products Description

Introduction of 8 rows ridding type rice transplanter

This rice planter is our new design rice planter , it design with a long frame and wide pedal design, it can carry more seedlings at one time, reduce the number of seedlings, save time and improve work efficiency

It has the main feature as following：

1、accurate navigation using Beidou navigation and base station system accurate navigation to achieve accurate linear transplant operations 2、 intelligent planning of the path after the completion of the automatic planning of the planting operation path

3、 automatic turning and turning of the driving operation field automatic turning, automatic lifting of the seedling platform, automatic speed control; 4、The whole process of rice transplanting operation is simple, easy, comfortable and labor-saving.

long frame and wide pedal

With a long frame and wide pedal design, it can carry more seedlings at one time, reduce the number of seedlings, save time and improve work efficiency

Four-wheel drive and extended wheelbase

Using four-wheel drive, extended wheelbase, anti-sinking gear system design, equipped with large diameter wheels, has good driving force and anti-sinking ability, and has excellent operation adaptability and passability for wet rot field

High-strength rear axle design and high-strength frame chassis

High strength rear axle design and high strength frame chassis structure design, the fuselage is firm, strong, strong tensile deformation ability

Model	2ZG-8D1	2ZG-8K	2ZG-8Q
structure type	ride type high speed	ride type high speed	ride type high speed
engine producer	Yanmar Engine Co.LTD	Yanmar Engine Co. LTD	Chongqing Zongshen general power Machinery Co, LTD
engine type	3TNM74-AFF	3TNM74-AFF	GB750
fuel type	diesel	diesel	gasoline
rate power	17.8KW	17.8KW	16KW
rate rpm	3600	3600	3600
dimension(mm)	3090x2220x2580	3240x2680x2580	3090x2220x2600
working lines	8	8	8
Line spacing(mm)	250	300	250
Hole distance adjustment mode	Handle adjustment	Handle adjustment	Handle adjustment
Hole distance to adjust the number of gears	7	7	7
hole distance(mm)	100,120,140,160,180,210,240	100, 120, 140,160,180, 210, 240	100,120, 140,160,180, 210, 240
Planting depth(mm)	10-55	10-55	10-55
shift(mm)	11.5,14.5,16.5,19.1	14,15.6,17.5,20	11.5,14.5,16.5,19.1
Seedling depth (mm)	8-18	8-18	8-18
Transplanting frequency (singal-line)(hole/min)	0-600	0-600	0-600
transmission type	HST	HST	HST
front tire dimension	Φ650 Explosion-proof tyre	Φ650 Explosion-proof tyre	Φ650 Explosion-proof tyre
rear tire dimension	Φ950 Rubber tires with thick wheels	Φ950 Rubber tires with thick wheels	Φ950 Rubber tires with thick wheels
balance systme type	Electronic	Electronic	Electronic
planting arm type	Rotary transplanting	Rotary transplanting	Rotary transplanting

Model	2ZG-8D2			2ZG-8D2K
structure type	ride type high speed			ride type high speed
engine producer	Changchai Co,LTD	Anhui Quanchai Power Co. LTD	Changchai Co,LTD	Anhui Quanchai Power Co.LTD
engine type	3M78-25G411J	V12-25C42	3M78-25G411J	V12-25C42
fuel type	diesel			diesel
rate power	18.5KW			18.5KW
rate rpm	3000			3000
dimension(mm)	3240x2220x2580			3240x2680x2580
working lines	8			8
Line spacing(mm)	250			300
Hole distance adjustment mode	Handle adjustment			Handle adjustment
Hole distance to adjust the number of gears	7			7
hole distance(mm)	100,120,140,160,180,000,000			100,120,140, 160, 180, 210, 240
Planting depth(mm)	10-55			10-55
shift(mm)	14,15.6,17.5,20			14,15.6,17.5,20
Seedling depth (mm)	8-18			8-18
Transplanting frequency (singal-line)(hole/min)	0-600			0-600
transmission type	HST			HST
front tire dimension	Φ650 Explosion-proof tyre			Φ650 Explosion-proof tyre
rear tire dimension	Φ950 Rubber tires with thick wheels			Φ950 Rubber tires with thick wheels
balance systme type	Electronic			Electronic
planting arm type	Rotary transplanting			Rotary transplanting
