Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIOU
-
Model Number:
-
HF-100
-
Voltage:
-
110V/220V
-
Product name:
-
Ventilation Exhaust Fan,Axial Flow Fan,In-line Duct Fan
-
Material:
-
PP Plastic
-
Frequency:
-
50/60hz Ac Axial Fan
-
Application:
-
Exhaust Ventilation
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
Duct Fan
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QIOU
-
Model Number:
-
HF-100
-
Voltage:
-
110V/220V
-
Product name:
-
Ventilation Exhaust Fan,Axial Flow Fan,In-line Duct Fan
-
Material:
-
PP Plastic
-
Frequency:
-
50/60hz Ac Axial Fan
-
Application:
-
Exhaust Ventilation
Product Description

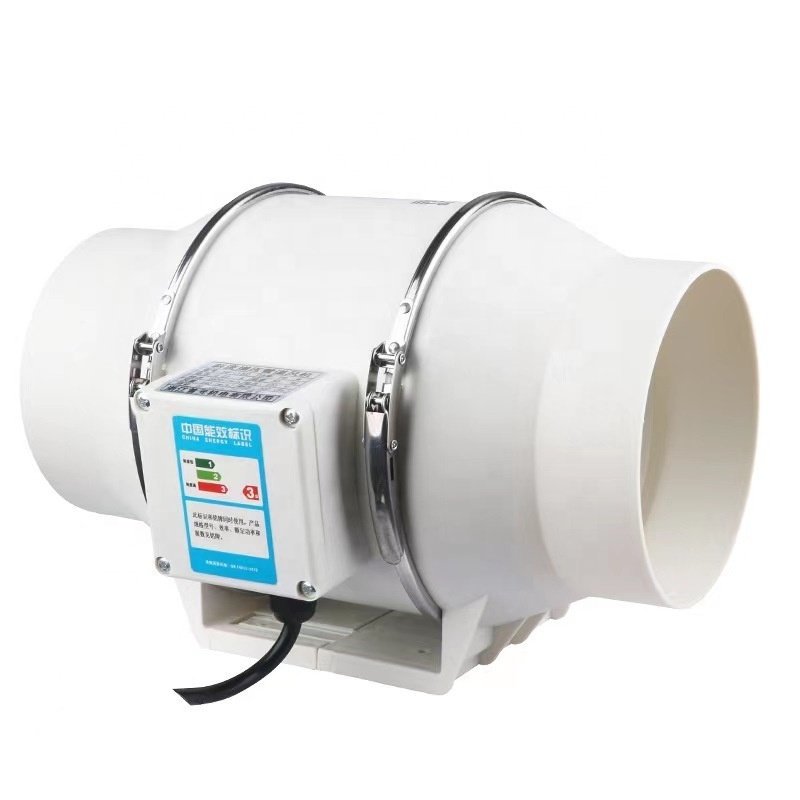

4inch 100mm Low noise Pipe Type Ventilation Exhaust Fan Commercial Powerful Extractor Jet Turbo In-line Booster Duct Fan
* The fan body is made of high-grade plastic material, with high efficient and mixed-flow ABS impeller
* Suitable for the places with the requirements of low noise and high static pressure in the ceiling duct
* Good heat dissipation performance aluminum cover combine with sealed ball bearing motor, long life with low energy consumption
* Equip the removable fastener between fan casing and outlet/inlet, maintenance and cleaning are available
* Operating temperature range -20°C-50°C
* Long working life over 50000hours
* Insulation Class B
* Enclosure class IP44
* Perfect for homes, apartments, office, public place, hotel , gym and etc.
* This inline duct fan includes a plug,we also customize the other plug type.
* Suitable for the places with the requirements of low noise and high static pressure in the ceiling duct
* Good heat dissipation performance aluminum cover combine with sealed ball bearing motor, long life with low energy consumption
* Equip the removable fastener between fan casing and outlet/inlet, maintenance and cleaning are available
* Operating temperature range -20°C-50°C
* Long working life over 50000hours
* Insulation Class B
* Enclosure class IP44
* Perfect for homes, apartments, office, public place, hotel , gym and etc.
* This inline duct fan includes a plug,we also customize the other plug type.
Specification
|
Model
|
Power
|
Air Flow
|
Pressure
|
Voltage
|
Frequency
|
Speed
|
Noise
|
|
HF-100
|
35W
|
220m3/h
|
150Pa
|
110V/220V
|
50/60Hz
|
2600rpm
|
28dBA
|
|
HF-125
|
45W
|
310m3/h
|
180Pa
|
|
|
2600rpm
|
30dBA
|
|
HF-150
|
75W
|
540m3/h
|
300Pa
|
|
|
2600rpm
|
48dBA
|
|
HF-200
|
130W
|
900m3/h
|
380Pa
|
|
|
2600rpm
|
52dBA
|
|
HF-250
|
225W
|
1450m3/h
|
480Pa
|
|
|
2450rpm
|
53dBA
|
|
HF-315
|
320W
|
2900m3/h
|
630Pa
|
|
|
2500rpm
|
60dBA
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
