Heavy Duty Robot Rubber Track for Unmmaned Ground Vehicles UGV Robots 130x50x44

Heavy Duty Robot Rubber Track for Unmmaned Ground Vehicles UGV Robots 130x50x44

FOB Reference Price: Get Latest Price

≥2 Pieces

US $88

≥20 Pieces

US $70

≥100 Pieces

US $60

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Rubber and Fiber,Jointless technology,Steel wire reinforcement

Width:: 130mm

Pitch Length:: 50mm

Lug Height:: 7.5mm

Links:: 44

Total Length:: 2200mm

Weight:: 5.2kg/pc

Application:: unmmaned ground vehicles UGV robots

MOQ:: 2PCS

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: GQRT

Product Name:: Rubber Tracks

Material:: Rubber and Fiber,Jointless technology,Steel wire reinforcement

Width:: 130mm

Pitch Length:: 50mm

Lug Height:: 7.5mm

Links:: 44

Total Length:: 2200mm

Weight:: 5.2kg/pc

Application:: unmmaned ground vehicles UGV robots

MOQ:: 2PCS

Product Description

Heavy Duty Robot Rubber Track for Unmmaned Ground Vehicles UGV Robots 130x50x44

This track is widely used on agriculture and construction area, is versatile in all terrains including mountain, snow, mud, sand

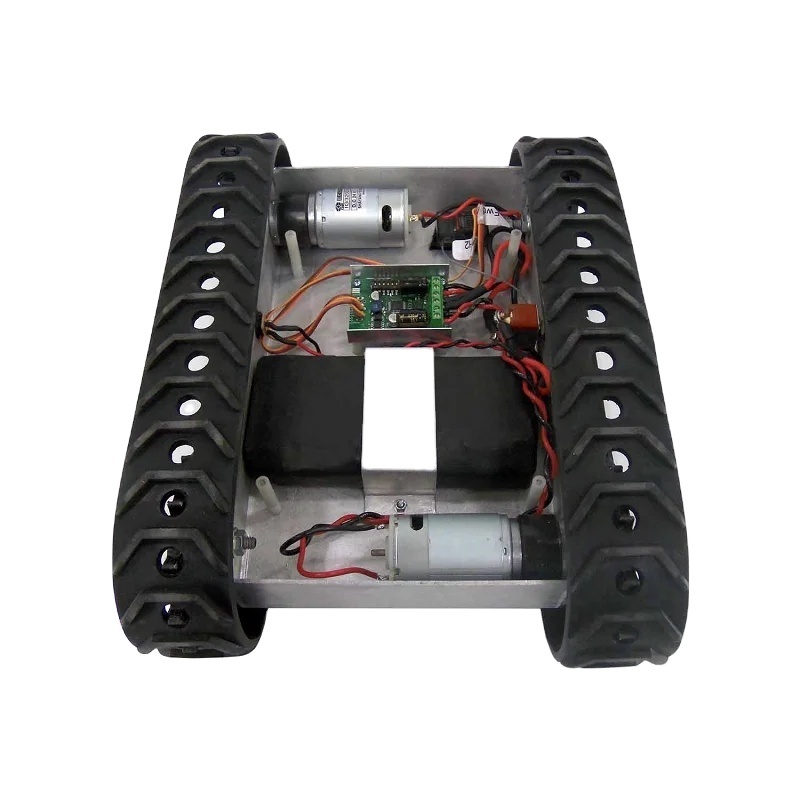

etc. It has good wear resistance and puncture resistance features, great for UGV robot chassis, rubber track system, off-road
track system.

Remark: Only for mechanical equipment that does not exceed a total weight of 150kg.

* If you need more info. about this track i.e.: drawing, pls feel free to contact us.

Product Specification

Discover more about Heavy Duty Robot Rubber Track 130x50x44

Model			KX130
Track Width (mm)			130
Pitch Length(mm)			50
Links			44
Total Length(mm)			2200
Weight(kg/pc)			5.2
Min Links			44
Drive Sprockets Recommend Thickness(mm)			30
Drive Sprockets Diameter not less than(mm)			100

Custom Matching Sprockets

• To make best fit of track and sprocket, it’s recommended to let us make the sprocket for you. Just let us know the the sprocket diameter and inner installation hole size you required, we’ll make sprocket drawing for confirmation after order placed.
• Available custom sprocket material: polymer, aluminum
