A:
Two tracks three pvc sliding doors.
B:
Two-track pvc sliding door
.
C:
Four tracks three pvc sliding doors
.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WANJIA
-
Model Number:
-
upvc sliding doors
-
PVC profile thickness:
-
2.0mm/2.5mm
-
PVC profile color:
-
can be customized
-
glass type:
-
tempered/frosted/tinted/coated/laminated
-
glass layer:
-
single/double/triple
-
glass thickness:
-
4/5/6/8/10/12/15/20mm
-
accessories:
-
German ROTO/China KINGLONG or CHUGN
-
dimension:
-
can be customized
-
feather:
-
sound insulation
-
Profile styles:
-
ordinary , Conch,shide Mensi
-
Certificate:
-
ISO9001/CE/AS2047
Quick Details
-
Door Material:
-
Plastic
-
Feature:
-
Sound Insulation
-
Main Material:
-
PVC
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WANJIA
-
Model Number:
-
upvc sliding doors
-
PVC profile thickness:
-
2.0mm/2.5mm
-
PVC profile color:
-
can be customized
-
glass type:
-
tempered/frosted/tinted/coated/laminated
-
glass layer:
-
single/double/triple
-
glass thickness:
-
4/5/6/8/10/12/15/20mm
-
accessories:
-
German ROTO/China KINGLONG or CHUGN
-
dimension:
-
can be customized
-
feather:
-
sound insulation
-
Profile styles:
-
ordinary , Conch,shide Mensi
-
Certificate:
-
ISO9001/CE/AS2047
Products Description
|

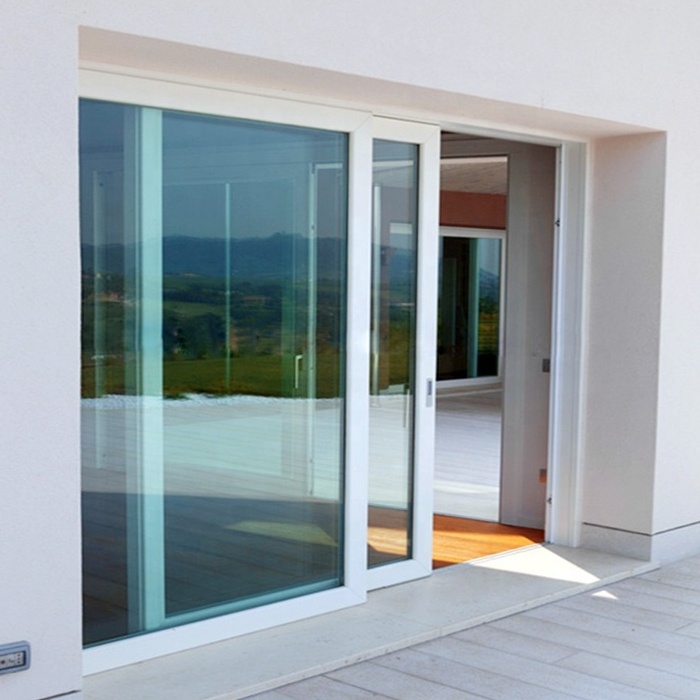

PVC sliding door
|
|
|
|
|
||||
|
1. The wall thickness of the main profile meets the requirements of the national standard GB/T8814-2004 for profiles and the standard GB/T28887-2012 for plastic windows for construction;
2. Standard notch design, which improves the performance of the whole window, realizes flexible opening, convenient use and security anti-theft function;
3. The large section design of the profile, the internal fan material adopts the integrated design, and the principle of equal pressure and decompression between the outer frame and the inner fan improves the airtightness of the door and window and the torque resistance of the profile itself, the drop hammer impact, etc. Ensure that doors and windows are not easy to crack in cold regions;
4. Reasonable drainage channel design to effectively prevent rainwater from penetrating;
5. The four corners of the sash are made of stainless steel corner reinforcement, and the 45 degree angle is more precise;
6. The frame is a double-track structure, and the frame and fan have unique drainage groove design;
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Types: pvc sliding door
Glass types:clear float glass, reflective glass, tinted glass, low iron glass
Glass Thickness:3mm-19mm
PVB Thickness:0.38mm, 0.76mm, 1.52mm
PVB Color:clear, white, red, blue, grey, green, bronze, pink, orange, yellow
Min Size:300mm*300mm
Max Size:3660mm*2440mm, 3300mm*2140
Glass Material Tempered glass
Glass Color Clear glass
Size Customized
Glass Thickness 3-19mm
Certification CCC CE SGCC
