- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-

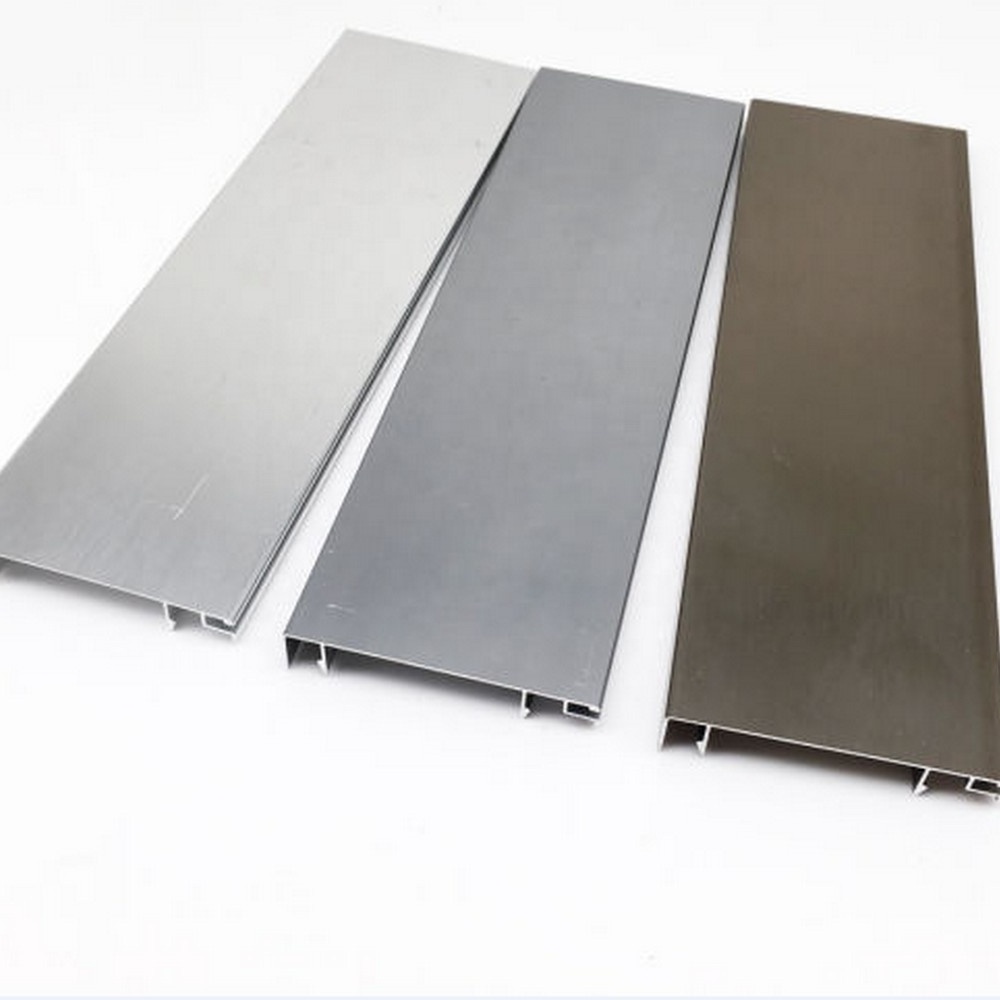

Aluminium Skirting Profile For Wall
-
Brand Name:
-
ZHONGLIAN (pailian)
-
Company history:
-
since 1992
-
Material:
-
100% alloy :6063-T5 / 6061-T6
-
Standard Export length:
-
5.8m for 20ft , 5.9m /6.0m for 40'GP
-
Workers:
-
more than 700 staffs
-
Guarantee:
-
customer certificate ,like BV , Son-cap ,ISO
-
Monthly output:
-
2400tons -3000tons
-
Standard:
-
middle and high quality
-
General Color:
-
Silver, mirror, champagne, bronze, black,customized
-
Machining:
-
Cutting,punching,drilling,milling,bend
Quick Details
-
Grade:
-
6000 Series
-
Tolerance:
-
±1%
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Aluminium Skirting Profile For Wall
-
Brand Name:
-
ZHONGLIAN (pailian)
-
Company history:
-
since 1992
-
Material:
-
100% alloy :6063-T5 / 6061-T6
-
Standard Export length:
-
5.8m for 20ft , 5.9m /6.0m for 40'GP
-
Workers:
-
more than 700 staffs
-
Guarantee:
-
customer certificate ,like BV , Son-cap ,ISO
-
Monthly output:
-
2400tons -3000tons
-
Standard:
-
middle and high quality
-
General Color:
-
Silver, mirror, champagne, bronze, black,customized
-
Machining:
-
Cutting,punching,drilling,milling,bend
Product Description
|
Product specifications
|
|
|
|
|
||||
|
Item Name
|
ZHONGLIAN Champagne Brushed Modern Model Aluminium Cabinet Profile for Kitchen
|
|
|
|
||||
|
Material
|
Our major material is AA6063,6061,6463.we also can make AA6082,6005,2024,2014,7075 etc.
|
|
|
|
||||
|
Temper
|
T4,T5,T6
|
|
|
|
||||
|
Thickness
|
General profiles thickness: 0.8 - 5.0 mm ,Anodized protection thickness: 8 - 25 um, Powder coating color thickness: 40 - 120 um.
|
General profiles thickness: 0.8 - 5.0 mm;
|
|
|
||||
|
Length
|
General Loading Length is 3m/6m. Special length can customized.
|
|
|
|
||||
|
Shape
|
Customized
|
|
|
|
||||
|
Surface Treatment
|
mill, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polish, brushed
|
|
|
|
||||
|
Color
|
Metal silver, champagne, black, white, mirror, customized request available
|
|
|
|
||||
|
Application
|
windows and doors, curtain walls, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar. Industrial profile, Decoratino profile,
|
|
|
|
||||
|
Machining
|
CNC, drilling, milling, cutting, welding, bending, assembling
|
|
|
|
||||
|
MOQ
|
General Profile 500kgs.Big profile 1ton-3tons.
|
|
|
|
||||
|
Production Capacity
|
5000 tons monthly, 60000 tons annually.
|
|
|
|
||||
|
Brand Name
|
ZHL
|
ZHL (YALIAN ALUMINIUM)
|
|
|
||||
|
Certificate And Standard
|
1) ISO9001-2008/ISO 9001:2008;
2) CQM Certification; 3) SGS, CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD available |
|
|
|
||||
|
Guarantee
|
15 years for the surface treatment indoor using
|
|
|
|
||||
|
Packing Details
|
Inside : packed with plastic film to protect each piece/Outside: Wrap to be bundles by waterproof craft paper or EPE film. Customized requesti available
|
|
|
|
||||
|
Delivery
|
Die Developing and Sample testing: 12-18 days/Product Production 20-30days.
|
|
|
|
||||
|
FOB Port
|
Shenzhen/Guangzhou/Foshan
|
|
|
|
||||
|
Payment Terms
|
T/T 30% for deposit, balance before delivery.
|
|
|
|
||||
|
Settlement Terms
|
Charge by gross weight.
|
|
|
|
||||
|
More Detail
|
|
|
|
|
||||
|
Aluminium Alloy Chemical Composition
|
|
|
|
|
||||
|
Alloy
|
6063(%)
|
6063A(%)
|
6061(%)
|
6082(%)
|
||||
|
Si
|
0.2-0.6
|
0.3-0.6
|
0.4-0.8
|
0.7-1.3
|
||||
|
Fe
|
0.35
|
0.15-0.35
|
0.7
|
0.5
|
||||
|
Cu
|
0.1
|
0.1
|
0.15-0.4
|
0.1
|
||||
|
Mn
|
0.1
|
0.15
|
0.15
|
0.4-1.0
|
||||
|
Mg
|
0.45-0.9
|
0.6-0.9
|
0.8-1.2
|
0.6-1.2
|
||||
|
Cr
|
0.1
|
0.05
|
0.04-0.35
|
0.25
|
||||
|
Zn
|
0.1
|
0.15
|
0.25
|
0.2
|
||||
|
Ti
|
0.1
|
0.1
|
0.15
|
0.1
|
||||
|
Other(each)
|
0.05
|
0.05
|
0.05
|
0.5
|
||||
|
Other(each)
|
0.15
|
0.15
|
0.15
|
0.15
|
||||
|
Al
|
Remainder
|
Remainder
|
Remainder
|
Remainder
|
||||
|
