Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL-22QB
-

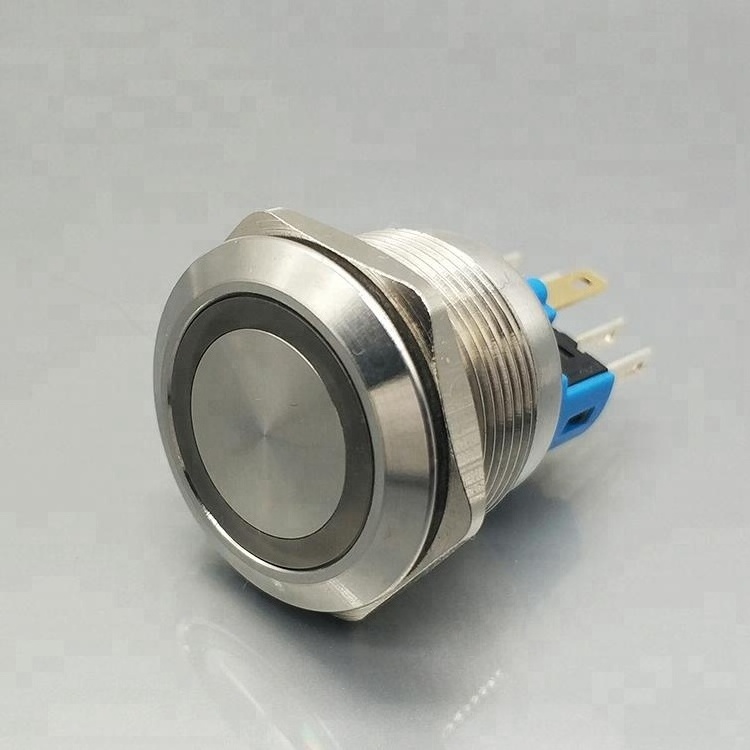

Product name:
-
Push Button Switch
-
Mounting hole diameter:
-
22mm
-
Contact combination:
-
1NO 1NC
-
Specifications:
-
5A/250VAC
-
Operation type:
-
momentary/self-locking
-
Terminal type:
-
J pin terminal
-
Head shape:
-
ball/flat/high round/concave
-
Button material:
-
brass nickel plated/stainless steel
-
LED color:
-
red/orange/yellow/green/blue/green/white
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65/IP67 IK10
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL-22QB
-
Product name:
-
Push Button Switch
-
Mounting hole diameter:
-
22mm
-
Contact combination:
-
1NO 1NC
-
Specifications:
-
5A/250VAC
-
Operation type:
-
momentary/self-locking
-
Terminal type:
-
J pin terminal
-
Head shape:
-
ball/flat/high round/concave
-
Button material:
-
brass nickel plated/stainless steel
-
LED color:
-
red/orange/yellow/green/blue/green/white
-
Certification:
-
CE
- Xiamen Olink Imp&Exp is professional in ELECTRONIC 15 years , with good quality and short lead time.
- Our company occupies nearly 10,000 sq. meters and the area of the workshop is 30,000 sq. meters. There are more than 500 employees including 60 technicians.
- We have the three main series of the products containing electronic connectors , terminal blocks, wire harness and switches up to 200 types and 2000 specs.
- Technical Parameters
| Terminal Type | J Pin Terminal | Protection Grade | IP65/IP67,IK10 | |
| Structure | 1NO1NC | Material | Contact | Silver alloy |
| Specifications | 5A/250VAC | Button | Stainless steel | |
| Contact Resistance | ≤50mΩ | Zn-Al alloy(Made to order any color) | ||
| Insulation Resistance | ≥1000MΩ | Body | Brass nickel plated/Stainless steel | |
| Dielectric Strength | 2000VAC | Zn-Al alloy(Made to order any color) | ||
| Environent Temperature | -20℃~+55℃ | Base | PBT | |
| Mechanical Life | >1000000 times |
Lamp
Parameters |
Rated
Voltage |
2V.3V.5V.6V.12V.24V.36V.48V.110V.220V |
| Electical Lifer | >200000 times | |||
| Panel Thickness | 1~6mm | |||
| Nut Torque | 5-14Nm | Color | Red Orange yellow | |
| Operating Pressure | 5-6N | green blue White | ||
| Operating Distance | About 2.8mm | Life | 50000 Hours | |
Q:Why choose us?
A:1.100% home made,competitive price and fast delivery.
2.strict quality control.Certified by ISO9001:2000/ELT/TUV/CE/PSE/CQC/ROHS/UL.
Q:How long is your delivery time?
A:Sample is 1-3 days;Mass products is 5-7 days.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Paypal,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
