Quick Details
-
Brand Name:
-
UNi-CROWN
-
Model Number:
-
UN-25D
-
Place of Origin:
-
Taiwan
-
Horsepower:
-
1/8 HP
-
Structure:
-
Rocking Piston
-
Cable Length:
-
30 cm
-
Outlet Size:
-
175 X 93 X 143 cm
-
Power:
-
AC, Electric
-
Product description:
-
AC Oil-less silent Small vacuum air pump for Automatic equipment
-
Type:
-
Oilless
-
Usage:
-
Vacuum pumps and Air Compressors
-
Fuel:
-
none
-
Certification:
-
CE & RoHS
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Drinking water treatment, Family Homes, Machining, Metal and Equipment Manufacturers
-
Pressure:
-
Low-pressure
-
Voltage:
-
AC 110V or 220V
-
Brand Name:
-
UNi-CROWN
-
Model Number:
-
UN-25D
-
Place of Origin:
-
Taiwan
-
Horsepower:
-
1/8 HP
-
Structure:
-
Rocking Piston
-
Cable Length:
-
30 cm
-
Outlet Size:
-
175 X 93 X 143 cm
-
Power:
-
AC, Electric
-
Product description:
-
AC Oil-less silent Small vacuum air pump for Automatic equipment
-
Type:
-
Oilless
-
Usage:
-
Vacuum pumps and Air Compressors
-
Fuel:
-
none
-
Certification:
-
CE & RoHS

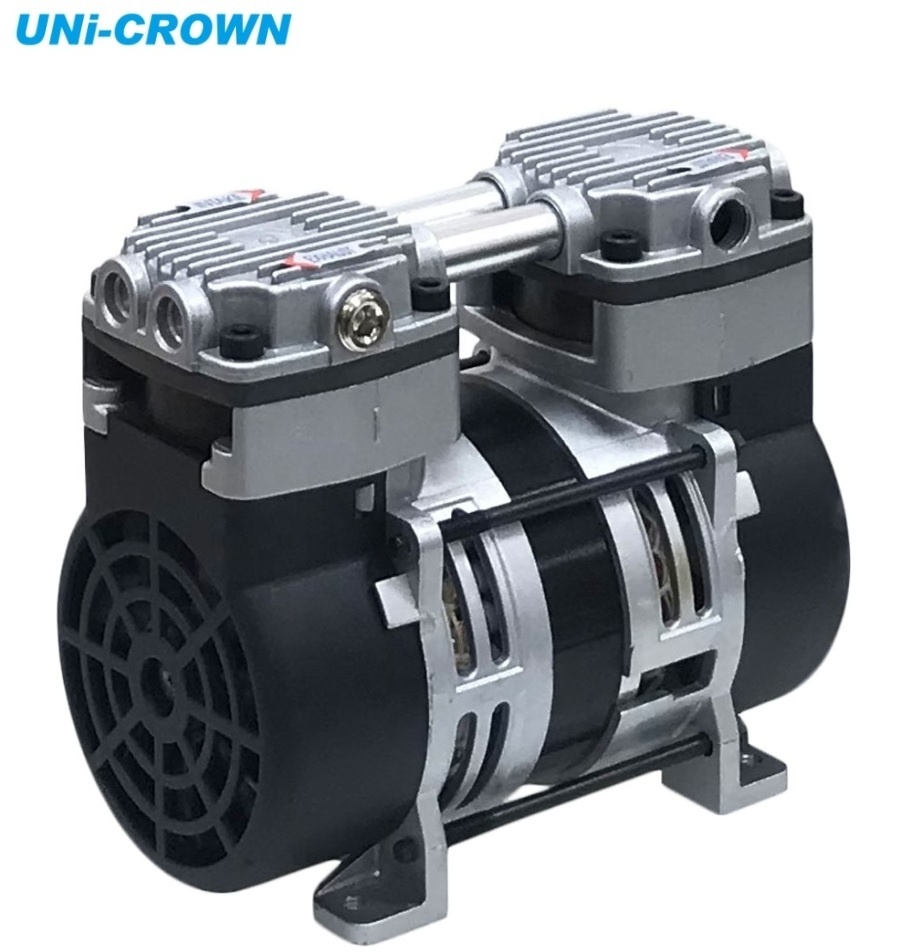

AC Oil-less silent Small vacuum air pump for Automatic pick and place equipment
Application:
* Lab. instruments
* Various instruments
* Medical application
* Automatic machine assembly
* Vary kinds of machinery.
* Various vacuum and pressure applications
Product Features:
* Oilless operation
* Compact design
* Low noise level
* Motor mounted with thermal protection
* Rugged construction / low maintenance
* AC 110 V or 220 V
Dimensions: L175 x W93 x H143 mm
Installation diameter: 1/4"
Specifications
| Model | Voltage | Flow | Vacuum degree | Maximum pressure | Power consumption | Weight |
| Unit | (Hz) | (L/min) | (mmHg) | (Kgf/cm2) | (W) | (Kg) |
|
UN-25D
(AC 110V)
(AC 220V) |
60 Hz | 40 | 600 | 1.5 | 130 | 3.2 |
| 50 Hz | 34 | 600 | 1.5 | 130 | 3.2 |
