Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
RFY
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0hp
-
Cable Length:
-
/
-
Outlet Size:
-
32mm~50mm
-
Power:
-
/
-
motor:
-
IE2 IE3
-
Theory:
-
Reciprocating Pump
-
Standard or Nonstandard:
-
Standard
-
Working condition:
-
Continuous
-
Customized product:
-
Available
-
Quick-wear part:
-
Seal, spring, piston, ect
-
Sealing:
-
Rubber seal
-
Warranty of pump:
-
12 months
-
Casing material:
-
Stainless steel
-
Packing:
-
Plywood case or carton with foam
-
Shipment:
-
By sea, air, express, ect
Quick Details
-
Application:
-
Industrial Utilities, Pharmaceutical industry
-
Pressure:
-
0~1.0Mpa
-
Voltage:
-
/
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
RFY
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0hp
-
Cable Length:
-
/
-
Outlet Size:
-
32mm~50mm
-
Power:
-
/
-
motor:
-
IE2 IE3
-
Theory:
-
Reciprocating Pump
-
Standard or Nonstandard:
-
Standard
-
Working condition:
-
Continuous
-
Customized product:
-
Available
-
Quick-wear part:
-
Seal, spring, piston, ect
-
Sealing:
-
Rubber seal
-
Warranty of pump:
-
12 months
-
Casing material:
-
Stainless steel
-
Packing:
-
Plywood case or carton with foam
-
Shipment:
-
By sea, air, express, ect

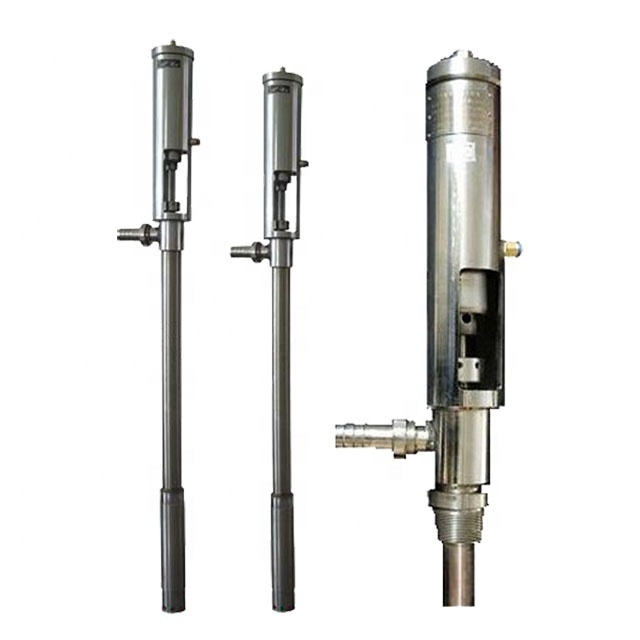

RFY Stainless steel Vertical Pneumatic Barrel Pump For 55 Gallon Drum
1. RFY air operated barrel pump is driven by compressed air from air compressor.
2. There’s air plunger makes reciprocating motion to driven open and off of guiding plunger, so as to transfer fluid. By adjusting the air strength, the flow rate of fluid is adjustable.
3. The barrel pump could be used to transfer high viscosity liquid, such as cosmetics, hair gel, slurry, chemical, oil, water, etc.
4. It is widely used in leather, leather shift film, rolling leather, color-coated, printing and dyeing, pharmaceuticals, coatings, chemicals, textiles, paint, painting, and other industries.
| Casing/Inner parts material: | Stainless steel / Stainless steel |
| Maximum viscosity: | 1.2×10 5 C.S.T |
| Maximum drive rating: | 10kgf/cm 2 |
| Maximum caliber: | 50mm(2inch) |
| Maximum discharge-side pressure: | 1.0MPa(10bar) |
| Flow rate range: | 0.8-5m 3 /h(3.5-22US.GPM) |
| Model | RFY0.8T-1 | RFY1.2T-1 | RFY1.2T-2 | RFY3.2T-1 | RFY3.2T-2 | RFY5.0T |
| Inlet and outlet of outer diameter(mm) | 51/32 | 60/32 | 55/32 | 72/38 | 55/32 | 88/50 |
| Capacity(m 3 /h) | 0.8 | 1.2 | 1.2 | 3.2 | 3.2 | 5 |
| Head(m) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Max. grain diameter(mm) | Φ0.8 | Φ1.2 | Φ1.2 | Φ3 | Φ1.2 | Φ5 |
| Max. supply pressure(kgf/cm 2 ) | 10 | 10 | 10 | 10 | 10 | 10 |
| Pressure(MPa/min) | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 |
| Max. viscosity(c.s.t) | 120000 | 120000 | 120000 | 120000 | 120000 | 120000 |
| Outlet diameter (Inch) | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/4" | 2" |
| Gas supply port diameter(Inch) | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Outlet pressure(MPa) | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 |
| Cylinder pressure ratio | 2:01 | 2:01 | 2:01 | 3:01 | 4:01 | 3:01 |
| Air consumption(m 3 /min) | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 |
| Volume(cm 3 ) | 143×19×18 | 152×19×18 | 147×19×18 | 166×21×18 | 158×21×18 | 172×23×21 |
| Weight(kg) | 14 | 16 | 15 | 23 | 19 | 37 |
| Specification(mm) | 100×1380 | 100×1450 | 100×1400 | 120×1600 | 120×1500 | 150×1680 |
Air Operated Barrel Pump:
Accessories:
Safe packing with foam:
