Quick Details
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
750*530*950
-
Weight:
-
186 KG
-
Machinery Function:
-
Crushing animal bone and plastic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Inlet Size(mm):
-
200*120mm
-
Product name:
-
bone grinding machine
-
Rotary knife diameter:
-
148mm
-
Rotary knife quantity:
-
9
-
Rotary knife length:
-
60mm
-
Capacity:
-
100-150kg/h
-
Fixed knife length:
-
180mm
-
Mesh size:
-
6-8mm
-
Rotating speed of knife shaft:
-
617r/min
Quick Details
-
Brand Name:
-
Furui
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220v 380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
750*530*950
-
Weight:
-
186 KG
-
Machinery Function:
-
Crushing animal bone and plastic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Inlet Size(mm):
-
200*120mm
-
Product name:
-
bone grinding machine
-
Rotary knife diameter:
-
148mm
-
Rotary knife quantity:
-
9
-
Rotary knife length:
-
60mm
-
Capacity:
-
100-150kg/h
-
Fixed knife length:
-
180mm
-
Mesh size:
-
6-8mm
-
Rotating speed of knife shaft:
-
617r/min
High efficiency bone grinding machine/bone grinder/chicken bone crusher with CE certification
Introduction of bone grinding machine
This meat bone cutter with high efficient claw shape mightiness break bone machine. It's particularly suitable for dry and fresh cow sheep bones, pig bones, sheep bones, donkey bone, chicken bones and other animal bone and fish bones broken, broken range 5-80 mm.
Features of bone grinding machine
1.The bone Saw processing machinery, high efficiency, low energy consumption, safe and convenient operation, beautiful appearance significantly.
2.The machine can cooperate with belt, using automated feeding and discharging materials,
reduce labor intensity.
3.Lead blade, cutting angle cutting blades, improve efficiency, crushing grains, good quality
with long service life.
4.The knife is made of high quality alloy steel with special treatment, superior wear resistance.
Technical parameters of meat and bone grinder
|
FR-150 |
FR-230 |
FR-300 |
FR-400 |
FR-500 |
FR-600 |
|
|
Power |
2.2kw |
4kw |
5.5kw |
7.5kw |
11kw |
30KW |
|
Inlet Size(mm) |
200*120 |
250*160 |
320*200 |
420*220 |
520*260 |
820*500 |
|
Rotary knife diameter |
148mm |
225mm |
240mm |
270mm |
280mm |
350mm |
|
Rotary knife quantity |
9 knives |
6 knives |
9 knives |
12knives |
15knives |
18knives |
|
Rotary knife length |
60mm |
115mm |
100mm |
100mm |
100mm |
100mm |
|
Fixed knife length |
180mm |
230mm |
300mm |
400mm |
500mm |
300mm |
|
Fixed knife quantity |
2 knives |
2 knives |
2 knives |
2 knives |
2 knives |
4knives |
|
Capacity (KG/H) |
100-150 |
150-200 |
200-250 |
250-300 |
300-350 |
350-400 |
|
Mesh size |
φ6mm-8mm |
φ8mm |
φ8mm |
Φ10mm |
Φ10mm |
Φ10mm |
|
Rotating speed of knife shaft |
617r/min |
617r/min |
617r/min |
617r/min |
617r/min |
576r/min |
|
Machine size(mm) |
750*530*950 |
900*700*1050 |
1000*750*1180 |
1060*880*1320 |
1150*1000*1450 |
2000*1400*2180 |
|
Machine weight |
186kg |
280kg |
348kg |
450kg |
680kg |
800kg |

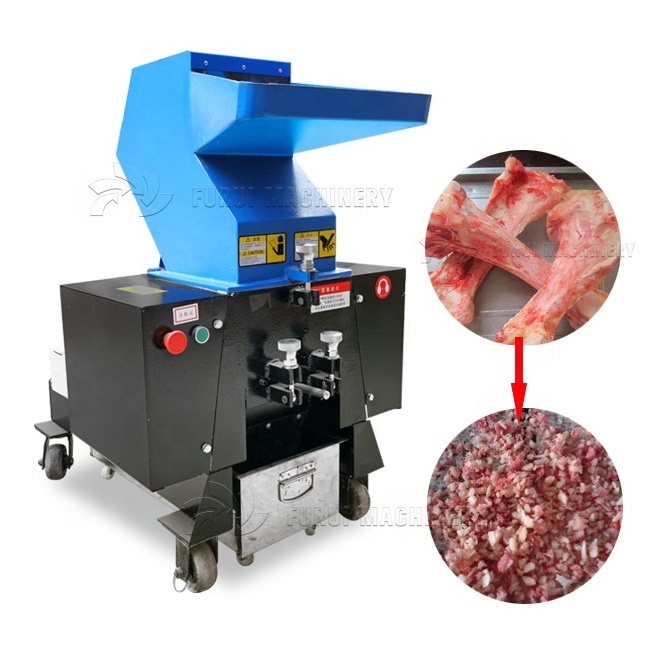

Pictures of meat and bone grinder
1 . Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
1. After-sale service:
We provide 12 months' warranty(After the warranty, we can provide life-long repair service).
2. Customization:
We make customized diesel engine crusher plastic machine.
3. Design:
* Mechanical Design: We make a good mechanical design to ensure they can operate without
any frictions, so that it can have a long service life.
* If you have some special scenes in your mind, you can draw it down and we can produce the your pictures.
Also, we can make the movie scenes!
* Inspection: we have a strict Quality Inspection Department, and every machine would be tested before delivery.
If you are interested in our products, please contact me , we will reply within 24 hours!!!
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4:
1.Technical support by phone, email ,WhatsApp,Wechat or iMessages around the clock
2. Friendly English version manual
3. Engineer available to service machinery overseas
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately. And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support
and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.
