Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CAGE
-
Model Number:
-
VS1
-
Product Name:
-

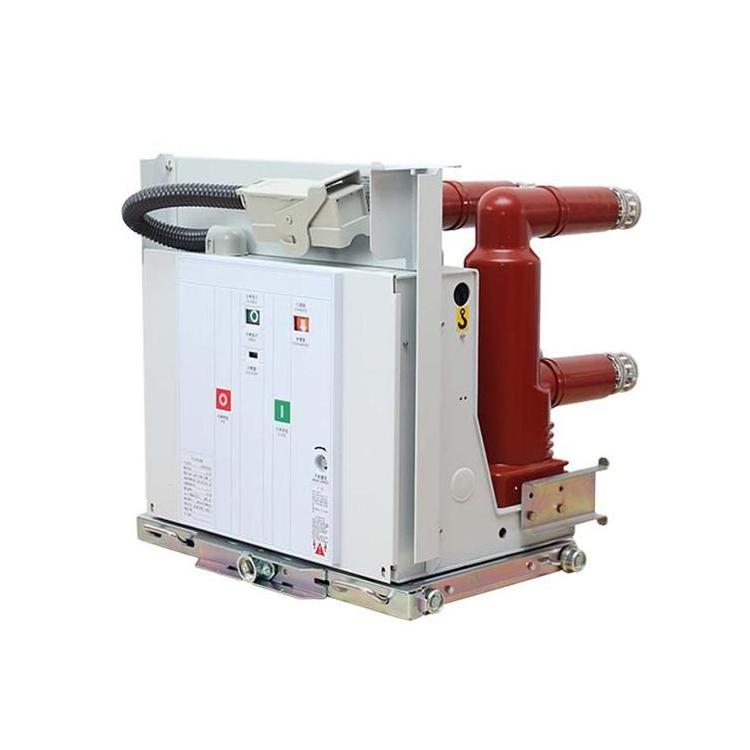

Indoor High Voltage Vacuum Circuit Breaker
-
Rated Frequency:
-
50/60 Hz
-
Poles Number:
-
3
-
Mechanical Life:
-
10000times
Quick Details
-
Breaking Capacity:
-
20kA, 25kA, 31.5kA
-
Rated Voltage:
-
12KV
-
Rated Current:
-
630A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CAGE
-
Model Number:
-
VS1
-
Product Name:
-
Indoor High Voltage Vacuum Circuit Breaker
-
Rated Frequency:
-
50/60 Hz
-
Poles Number:
-
3
-
Mechanical Life:
-
10000times
PRODUCT PARAMETERS
|
Rated voltage
|
12KV
|
|
Rated current
|
630A
|
|
Rated short-circuit breaking current
|
20KA,25KA,31.5KA
|
|
Rated short-circuit making current
|
50KA，63KA, 80KA
|
|
Rated peak withstand current
|
50KA，63KA, 80KA
|
|
4s rated short-circuit withstand current
|
20KA,25KA,31.5KA
|
|
Rated operating sequence
|
On-0.3s-off on-180s-off on
|
|
Mechanical life
|
10000times
|
|
Rated short-circuit current breaking timess
|
50V
|
|
Rated closing voltage of operating mechanism (DC)
|
AC/DC 110、220V
|
|
Rated opening voltage of operating mechanism (DC)
|
AC/DC 110、220V
|
|
Clearance between open contacts
|
9±1mm
|
|
Overtravel (contact spring compression length)
|
3.5±0.5ms
|
|
Three-phase split, closing bounce time
|
≤2ms
|
|
Contact closing bounce time
|
≤2ms
|
PRODUCT DISPLAY
RELATED PRODUCTS
COMPANY PROFILE
CERTIFICATES DISPLAY
FAQ
Q:Are you trading company or manufacture?
A: We are factory at Yueqing China.
Q:Can I get some samples
?
A: Yes, 1 set sample order is acceptable.
Q: What is your packaging standard?
A: Usually we use standard foam and carton packaging. If you have special requirements, we can also meet your requirements.
Q:What is the delivery time?
A:It depends on the quantity.
Q: What are your payments?
A:T/T、Western Union、L/C, etc.
Q: Can your factory produce according to customers' requirements?
A:Yes, customized products are acceptable. Please send us the details.
