Coalescing oil water separator/oil filter China

Coalescing oil water separator/oil filter China

FOB Reference Price: Get Latest Price

≥2 Pieces

US $48

≥100 Pieces

US $45

≥500 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 1.9 kg

Dimension(L*W*H):: 3.5inch,5inch,etc.

Model No.:: Coalescence-separator filter

Usage:: Remove mass water & impurities

Filter medium:: Glass fiber glass fiber & Polyester fiber

Service life:: 10-12 months

Working temperature:: 0 ~ 120 °C

Precision:: 0.1 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron,etc.

Differential pressure:: < 0.6 psig

The initial pressure difference:: 0.4 psig or less

Price:: EXW / FOB / CFR,etc.

Certification:: ISO9001:2000

Quick Details

Core Components:: separator filter

Place of Origin:: Henan, China

Brand Name:: Huahang

Weight:: 1.9 kg

Dimension(L*W*H):: 3.5inch,5inch,etc.

Model No.:: Coalescence-separator filter

Usage:: Remove mass water & impurities

Filter medium:: Glass fiber glass fiber & Polyester fiber

Service life:: 10-12 months

Working temperature:: 0 ~ 120 °C

Precision:: 0.1 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron,etc.

Differential pressure:: < 0.6 psig

The initial pressure difference:: 0.4 psig or less

Price:: EXW / FOB / CFR,etc.

Certification:: ISO9001:2000

Coalescing oil water separator/oil filter China

Coalesce-separator Filter Element: Removing impurities & water deeply

There are t wo filter elements in one group for Cpalescer-separator filter:

Coalescer filter element —mainly congregate the water molecule to make it to a liquid water

Separator Filter element —separate the liquid water from the oil. Liquid water will be expelled.

Coalescing filter is made of a variety of composite materials by the special craft processing and become, with hydrophilic properties, it can not only filter medium mechanical impurities, but also through the demulsification, coalescence, the emulsification state of water separated from the medium, and became larger droplets, facilitate further realize the purification of the medium.

Coalescing filter mainly choose after surface treatment of glass fiber or polyester fiber as the coalescence of medium , the structure of the filter material through the special design, make the filter medium has a good performance of coalescence. The filtering precision can reach 0.1 microns .

Coalesce-separator Features & Advantages

1. Glass fiber coalescing filter high density gradient, coalescence and fog droplet in gas, efficient filtration precision is high. Stable structure, there is no medium of fibers, won't cause pollution to environment, downstream products.

2. Polyester fiber coalesce filter cartridge multilayer structure guarantee the filtration precision, high efficiency of droplet coalescence airflow; Stable structure, fiber strength is higher, there is no medium of fibers, won't cause pollution to environment, downstream products; Has good compatibility with various fluid; Good environmental protection, 100% synthetic materials, complete combustion residues.

Coalesce-separator Functions

Removing impurities,
Removing mass water –water content30%(Made up by special fibre)

Coalesce-separator Product specifications

Outer diameter of 3.5 inches, 4.5 inches, 6 inches; ,18,20,32,36,40,72 16 inches in length Filter skeleton material: stainless steel and other materials

Coalesce-separator Appliable line

1, jet fuel, gasoline, kerosene, diesel oil;

2, liquefied petroleum gas, tar, benzene, toluene, xylene, isopropyl benzene, propyl benzene, etc.

3, turbine oil, and other low viscosity hydraulic oil, lubricating oil;

4, cyclohexane, isopropyl alcohol, ethanol, ethyl ketone, etc.

5, and other hydrocarbon hydrocarbon compounds

Coalesce-separator Performance

1. Scope: precision less than 0.1 micron, 0.3 micron, 0.5 micron, 1 micron, 5 microns, 10 microns

2. The initial pressure difference: 0.4 psig or less

3. Replace the differential pressure: < 0.6 psig

4. Operating temperature: 0 ~ 120 °C

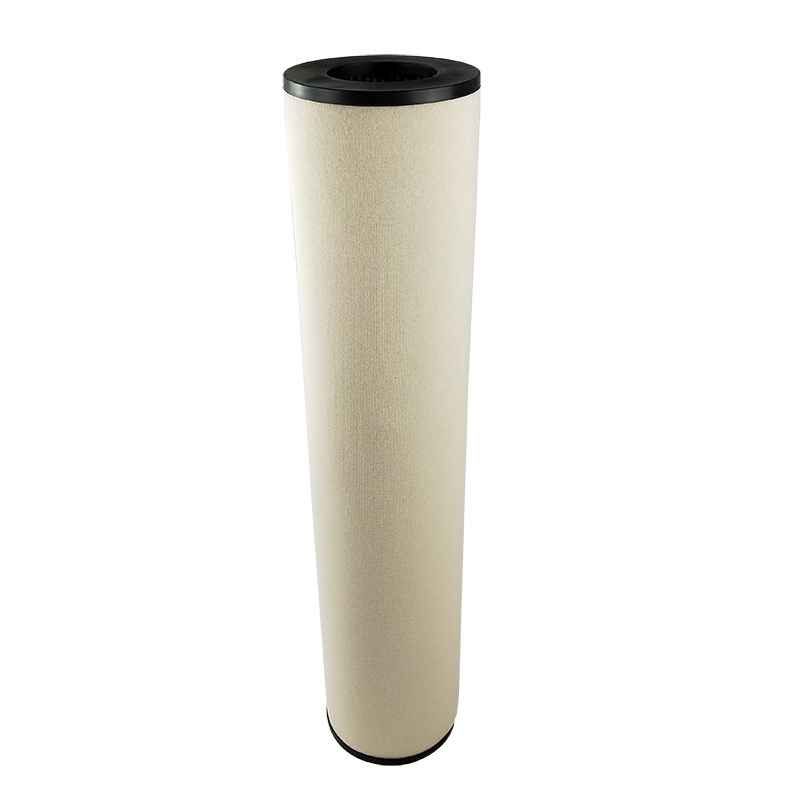

Some Coalescer-Separator oil filter pictures for your references
