Quick Details
-
Product name:
-
Door Access Control System
-
Material:
-
Metal
-
Application:
-
Office/Home/Buidling/School/Hotel
-
Color:
-
Blue
-
Power supply:
-
DC12V
-
Communication:
-
RS232/485
-
Size:
-
160*106mm
-
Card Reader Protocol:
-
Wiegand26
-
Support Card Reader:
-
2PCS
-
Support ID Card:
-
20000PCS--60000PCS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VNOSEC
-
Model Number:
-
ZN-800B
-
Product name:
-
Door Access Control System
-
Material:
-
Metal
-
Application:
-
Office/Home/Buidling/School/Hotel
-
Color:
-
Blue
-
Power supply:
-
DC12V
-
Communication:
-
RS232/485
-
Size:
-
160*106mm
-
Card Reader Protocol:
-
Wiegand26
-
Support Card Reader:
-
2PCS
-
Support ID Card:
-
20000PCS--60000PCS

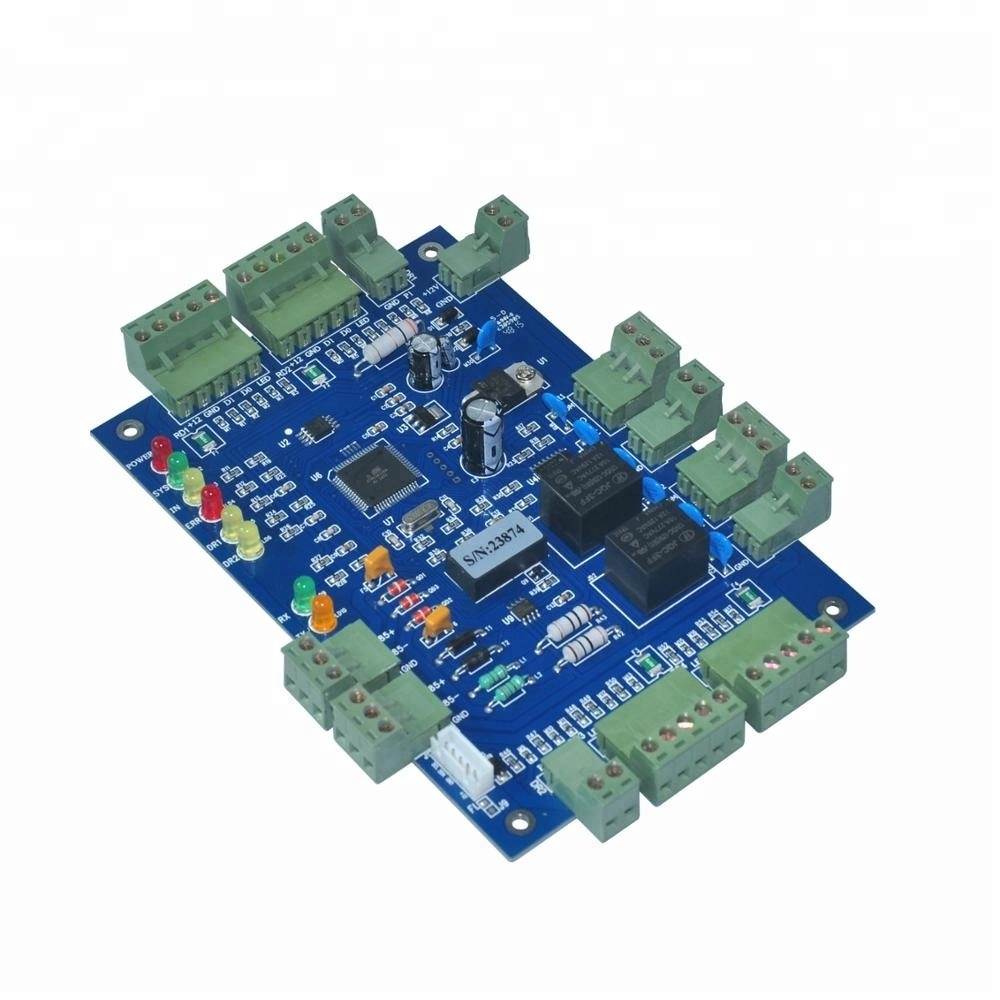

access control board Introduction :
These Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.
Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
| Product Parameters: | |
| PCB board size: | 160mm * 106mm |
| Case Size: | 273mm * 228mm * 65mm |
| Power Supply: | 12VDC 3-7A |
| Circuit board power consumption: | less than 100mA |
| Reader Input Format: | Wiegand26 (compatible with all readers under the agreement) |
| Communication: | TCP/IP 10M/100M*RS232/RS485 |
| self adaptive Function Description: | can control four doors, enter via card swiping and exit via card swipping or button. |
| Connect Reader | 2/4PCS |
| Can control the gate output relay: | 2pair |
| Open delay time: | 1-600 seconds adjustable |
| Maximum number of connections: | No limite Operating temperature: -40 to 70 degrees Celsius |
| Run Humidity: | 10-90% RH, non-condensing |
| User registration card capacity: | 20,000 cards Permissions |
| Signal output communication format and baud rate: | Support LAN, Intranet, fix Ipinternet WAN.RS232.RS485. |
| Power failure protection measures: | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller: | 100 meters, suggest within 80 meters |
| Max distance for the bus line: | Depends on network cover area. |
| Max distance between controller to the PC: | No limited |
