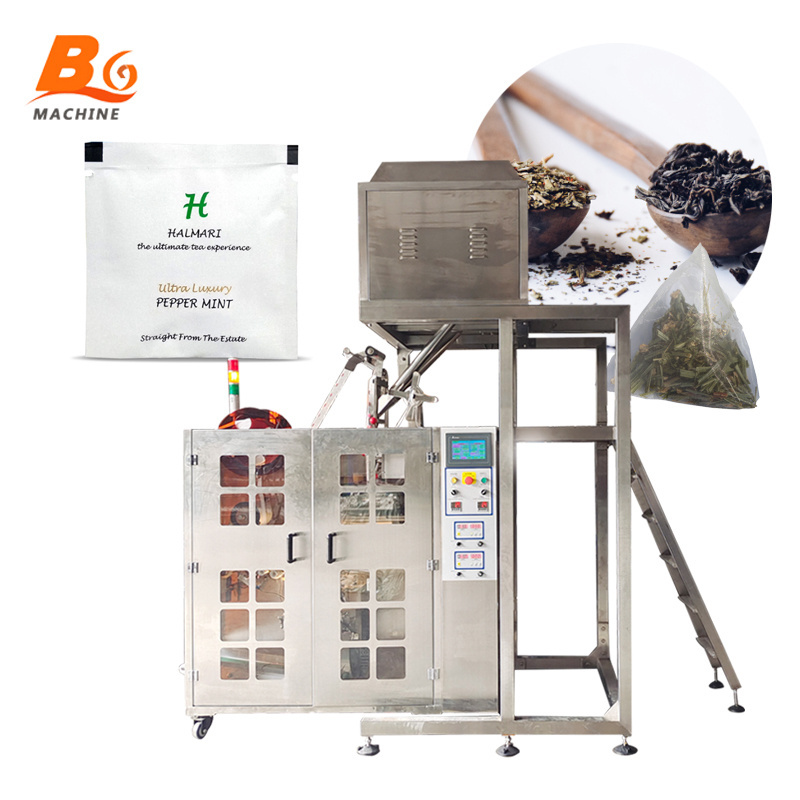

BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g

BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g

FOB Reference Price: Get Latest Price
≥1 Sets
US $10000
≥2 Sets
US $9000
≥3 Sets
US $8000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
400
Voltage:
220V
Place of Origin:
Guangdong, China
Brand Name:
Burgen
Dimension(L*W*H):
(L)970*(W)680*(H)1950mm
Product name:
Nylon Pouch Tea Packing Machine
Controller System:
PLC
Optional Devices:
Data printer, Air-filling Device, Pouching Devic
Packing Speed:
Max.30 Bags/Min
Machine Material:
Stainless Steel 304 and carbon steel
Bag Length:
Max.150mm
Bags Width:
Max.100mm
Size of tag:
25x25mm
Composite Material:
OPP/CPP/PE/PET/PO
After-sales Service Provided:
Online Support

Quick Details

Function:
FILLING, Wrapping, Labeling, Sealing, SLITTING
Packaging Type:
Stand-up Pouch, Bags, Film, Foil, Pouch, triangle sealing/single/double bag tea pouch
Packaging Material:
Plastic, Paper, Metal, Glass, Wood, nylon/corn fiber/non-woven tea bags
Weight (KG):
400
Voltage:
220V
Place of Origin:
Guangdong, China
Brand Name:
Burgen
Dimension(L*W*H):
(L)970*(W)680*(H)1950mm
Product name:
Nylon Pouch Tea Packing Machine
Controller System:
PLC
Optional Devices:
Data printer, Air-filling Device, Pouching Devic
Packing Speed:
Max.30 Bags/Min
Machine Material:
Stainless Steel 304 and carbon steel
Bag Length:
Max.150mm
Bags Width:
Max.100mm
Size of tag:
25x25mm
Composite Material:
OPP/CPP/PE/PET/PO
After-sales Service Provided:
Online Support
ONE-STOP SOLUTION
BG Fully Automatic Nylon PLA Triangle Pyramid Tea Bag Packing Machine for 2g 5g

>> We Are a Manufacturer
One-stop solution for packing machines and packing films Save
▷Packaging Machine Parameters
Product Name
Ultrasonic pyramid triangle tea bag packing machine
inner and outer bag width
50~75mm,85~95mm
inner and outer bag lengh
50~75mm,85~120mm
Labeling side
25*25mm
Power
9.7KW
Capacity
30-50bags/min(Determined by packing material)
Filling presision
≤±1%(Determined by packing material)
Sealing type
Triangle bag and flat bag
Filling range
2-10ml
Packaging material
Nylon,Polyester net,non-woven fabrics,ultrasonic sealing materials
Air consumption
0.6Mpa 0.4m³/min

Application:

Nylon triangle tea bag adopts the imported environmental nylon , weaving cloth material from Japan, which is of sense of high quality food class filter material without poison and bacteria, with heat-resistance approved by China safety inspection, the single color printing of pulling paper on packing is made from imported poisonless ink suitable for food, and could 100% recycle and reduce the environmental pollution. Of which the sealing take use of unique method- ultrasonic mark sealing , tight, sanitary, safety, reducing abundant sealing width, without wasting filter material, this plastic high quality sense of tea bag image is more natural and delicated fragrance compared with common tea bag, which is more beautiful and high level, and it is more easy for public to accept.


Feature

1/ The measuring system adopts adjustable volume cups or electric weighing (electric scale), it depends the final packaging products, we will recommend most suitable system.
2/ Machine with PLC control, the adjustment finished through color touch screen, frequency converter easy to change speed, servo motor driving which is accurate and powerful.
3/ Intelligent and advanced temperature controller, it controls temperature very accurately, and guarantee the most beautiful sealing effect.
4/ No film auto stop and alarm funtion.
5/ Electro-optical tracking system, this will guarantee most accurate tracking, and guarantee same and complete company logo.
6/ All operations of bag-making, weighing, filling, ultrasound sealing, cutting, counting can be completed automatically at one time. Date coding machine optional, this can be added on the envelop machine. and print expiry date or batch number on the outer tea bags.
7/ The surface of machine and component contact materials adopt 304 stainless steel, which are easy to clean.
8/ Low noise, quiet working condition.
9/ Outer bag machine can be added and make a line, the outer bag can be pillow sealing or 3 side sealing.
APPLICATION
◆ APPLICATION & BAG TYPE ◆
Sachet Sample

Tea Bag Packing Machine suits for all kinds of tea .
Such as tea leaves, medical tea, tonic tea, herbal tea, coffee, plant powder in Triangle nylon tea bag with outer envelope.

》》Click to customize the exclusive packaging program!!

MACHINE DETAILS

01. Hopper

Using high quality stainless steel material, high precision weighing, stable amplitude, adjustable.

02. Miniature electronic scales
Can choose stainless steel 、plastic material, support custom 2 head, 4 head, 6 head scale, each scale can put different products,at the same time measured down, the accuracy of up to 0.2G, suitable for packaging tea, herbal, flower tea, such as small weight
products

03. Ultrasonic sealing

The inner bag is fully ultrasonic sealed, which can be cut straight to avoid film waste, and can handle different packaging
materials, such as nylon, PLA fiber, PET, non-woven fabric or other ultrasonic sealing materials.


04. Bag Former

With the extemal packaging of film rolling device,the film is more smooth.

05. Multilingual touch screen

Multi-language touch screen can switch multiple languages at the same time, when the machine has a problem, automatic switch,automatic alarm, suspend operation, and display the machine problem.
Spare Parts Brand
COMPANY PROFILE
→ Our Team
Certifications
PACKING&DELIVERY

WHY CHOOSE US
If have any special requirements can be discussed,we will pack it as requested.
Delivery Time : Machine will be shipped in 15 working days after payment,before shipment,our technician will test the machine well,so our client can use directly when got the machine.
Further information (video,pictures, technical parameter and other models) needed,pls feel free to let me know.

Q&A

Q1: What information should I tell you to help me choose the most suitable packaging machine ?
A1: product to be packaged, bag size or film width, bag shape (pillow bag, guesset bag or four bags), package weight and net weight, what kind of film material, product photo, bag photo,Quantity, production, and your true and correct contact details.


Q2: Can you provide after-sales service ?
A2: We provide lifetime after-sales service . We provide free Internet technical help, English technical manual, detailed operation video, and we can also provide engineers with on-site machine operation and machine maintenance training.

Q3:Why should we choose your company?
A3: We specialize in R&D, manufacturing and sales of various packaging equipment for more than 10 years and provide the best after-sales service.

Q4: How long is the warranty period for the machine?
A4: The warranty period is one year (nonhuman damage).

Q5: What's your usual payment term for orders?
A5: We accept terms of T/T 30% in advance as down payment and 70% before loading in factory.
