Quick Details
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
other
-
Product name:
-
Pillow Block bearing
-
Material:
-
GCR15
-
MOQ:
-
10PCS
-
Housing material:
-
Iron Cast
-
Feature:
-
Long Life
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Bearing Material:
-
100% Chrome Steel
-
Model:
-
UC.UCP.UCF.UCT
-
Service:
-
OEM ODM
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other
-
Brand Name:
-
SYL or OEM
-
Model Number:
-
Sbds 3032 Sbds3032
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
other
-
Product name:
-
Pillow Block bearing
-
Material:
-
GCR15
-
MOQ:
-
10PCS
-
Housing material:
-
Iron Cast
-
Feature:
-
Long Life
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Bearing Material:
-
100% Chrome Steel
-
Model:
-
UC.UCP.UCF.UCT
-
Service:
-
OEM ODM

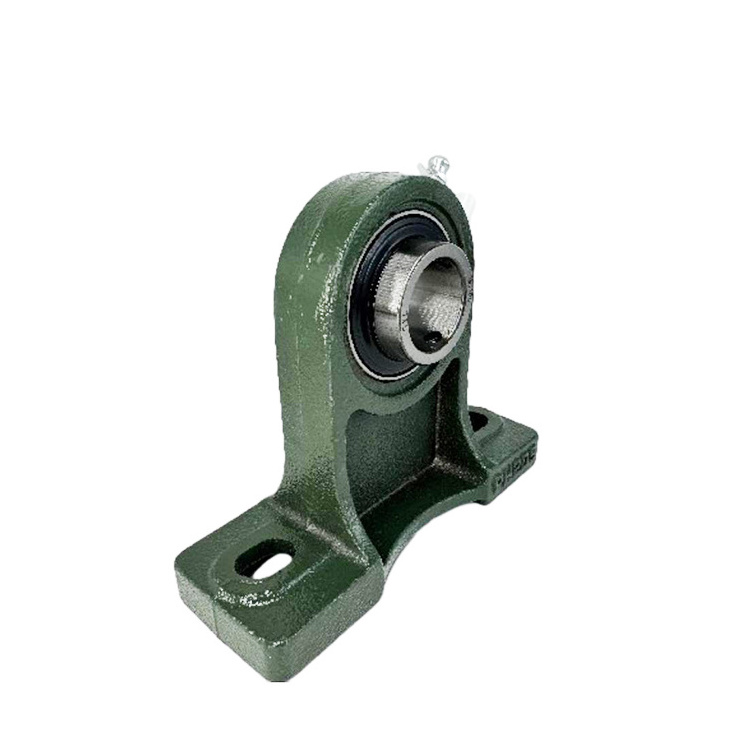

High speed pillow block bearing
Sbds 3032 Sbds3032
long service life waterproof pillow block bearing housing
Product introduction
The inserts bearings are the deep groove ball bearings with wide inner rings, it insert bearings in housing work as unit bearings. The housing are mainly casting or pressed steel.The bearing unit are compact in design with perfect sealing devices.
They are widely used in agricultural machiney, textile machinery, food processing machinery and conveyor system field etc. Can supply the outer diameter ф 40- ф 300mm pillow block ball bearings.
They are widely used in agricultural machiney, textile machinery, food processing machinery and conveyor system field etc. Can supply the outer diameter ф 40- ф 300mm pillow block ball bearings.
|
Material
|
Chrome Steel, GCR15, Cast Iron, Stainless Steel
|
|
Type
|
UC,UK,SA,SB,UEL Series Insert bearing, UCF,UCP,UCT,UCFL,UCPA,UCFC,UCFA,UCFB,UCPH Series Insert Bearing With Pillow Block
|
|
Model Number
|
UCF205
|
|
Grade
|
PO,P6,P5,P4,P2
|
|
Shield
|
ZZ ,2RS, OPEN
|
|
Used For
|
Mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery, etc.
|
|
Brand
|
SYL or OEM
|
The company has invested heavily in introducing international advanced automatic production line for salt bath heat treatment to improve the bearing accuracy.
High hardness bearings ensure the service life, durability and reduce the trouble of frequent damage and replacement.
Is a professional bearing manufacturing company integrating production and sales. Support customization.
Adopt high quality steel materials, Low noise, High load carrying capacity, High limit speed enhanced operational reliability.
|
Bearing No
|
ID
(mm) |
Thickness
(mm) |
Bearing No
|
ID
(mm) |
Thickness
(mm) |
|
UCFL203
|
17
|
33.3
|
UCFA203
|
17
|
32.04
|
|
UCFL204
|
20
|
33.3
|
UCFA204
|
20
|
32.04
|
|
UCFL205
|
25
|
35.7
|
UCFA205
|
25
|
35.7
|
|
UCFL206
|
30
|
40.2
|
UCFA206
|
30
|
40.2
|
|
UCFL207
|
35
|
44.1
|
UCFA207
|
35
|
44.4
|
|
UCFL208
|
40
|
51.2
|
UCFA208
|
40
|
51.2
|
|
UCFL209
|
45
|
52.2
|
UCFA209
|
45
|
52.2
|
|
UCFL210
|
50
|
54.6
|
UCFC203
|
17
|
28.3
|
|
UCFL211
|
55
|
58.4
|
UCFC204
|
20
|
28.3
|
|
UCFL212
|
60
|
68.7
|
UCFC205
|
25
|
29.8
|
|
UCF203
|
17
|
33.3
|
UCFC206
|
30
|
32.2
|
|
UCF204
|
20
|
33.3
|
UCFC207
|
35
|
36.4
|
|
UCF205
|
25
|
35.7
|
UCFC208
|
40
|
41.2
|
|
UCF206
|
30
|
40.2
|
UCFC209
|
45
|
40.2
|
|
UCF207
|
35
|
44.4
|
UCFC210
|
50
|
42.6
|
|
UCF208
|
40
|
51.2
|
UCFC211
|
55
|
46.4
|
|
UCF209
|
45
|
52.2
|
UCFC212
|
60
|
56.7
|
|
UCF210
|
50
|
54.6
|
UCFC213
|
65
|
55.7
|
|
UCF211
|
55
|
58.4
|
UCFC214
|
70
|
61.4
|
|
UCF212
|
60
|
68.7
|
UCFC215
|
75
|
62.5
|
|
UCF213
|
65
|
69.7
|
UCFC216
|
80
|
67.3
|
|
UCF214
|
75.4
|
70
|
UCFC217
|
85
|
69.6
|
|
UCF215
|
78.5
|
75
|
UCFC218
|
90
|
78.3
|
|
UCF216
|
83.3
|
80
|
UCFB203
|
17
|
31
|
|
UCF217
|
87.6
|
85
|
UCFB204
|
20
|
31
|
|
UCF218
|
97.3
|
90
|
UCFB205
|
25
|
34.1
|
|
UCF305
|
25
|
38
|
UCFB206
|
30
|
38.1
|
|
UCF306
|
30
|
43
|
UCFB207
|
35
|
42.9
|
|
UCF307
|
35
|
48
|
UCFB208
|
40
|
49.2
|
|
UCF308
|
40
|
52
|
UCFB209
|
45
|
49.2
|
|
UCF309
|
45
|
57
|
UCFB210
|
50
|
51.6
|
|
UCF310
|
50
|
61
|
UCF315
|
75
|
82
|
|
UCF311
|
55
|
66
|
UCF316
|
80
|
86
|
|
UCF312
|
60
|
71
|
UCF317
|
85
|
96
|
|
UCF313
|
65
|
75
|
UCF318
|
90
|
96
|
|
UCF314
|
70
|
78
|
|
|
|
