Quick Details
-
Name:
-
32 in 1 IP QAM
-
Input Channel:
-
1024
-
Output Channel:
-
32
-
QAM Channel:
-
32 non-adjacent carrier
-
RF Range:
-
50~960MHz, 1kHz stepping
-
Output Level:
-
-20dBm~+10dBm(87~117dbV)
-
MER:
-
≥ 40dB
-
Demission:
-
420mm*440mm*44.5mm (W*L*H)
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YATAI
-
Model Number:
-
nds3332
-
Name:
-
32 in 1 IP QAM
-
Input Channel:
-
1024
-
Output Channel:
-
32
-
QAM Channel:
-
32 non-adjacent carrier
-
RF Range:
-
50~960MHz, 1kHz stepping
-
Output Level:
-
-20dBm~+10dBm(87~117dbV)
-
MER:
-
≥ 40dB
-
Demission:
-
420mm*440mm*44.5mm (W*L*H)
Product Description

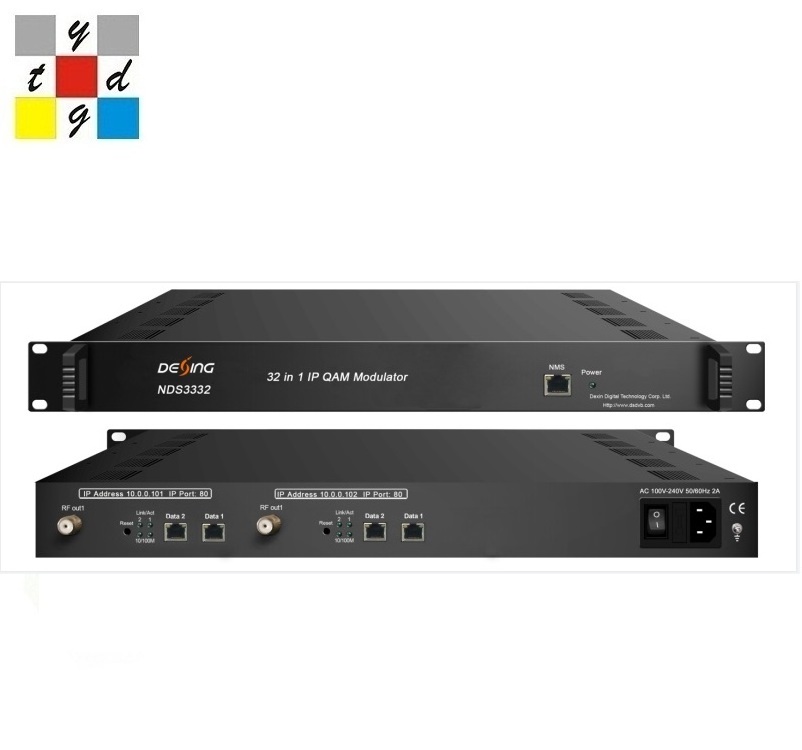

32 in 1 IP QAM out 32 channel CATV QAM modulator
product overview
NDS3332 32 in 1 IP QAM modulator is DEXIN Mux-scrambling-modulating all-in-one device. It supports maximum 1024 IP input through the 3 GE ports and 32 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output
through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.
through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.
Key Features
* 3GE ports (max 1024 IP in):
* Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out
* Data port (located on front panel), max 128 IP in
* Max 840Mbps for each GE input
* Supportsaccurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDSremapping per channel
* Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Supports RS(204,188) encoding
* SupportWeb-based Network management
* Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out
* Data port (located on front panel), max 128 IP in
* Max 840Mbps for each GE input
* Supportsaccurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDSremapping per channel
* Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Supports RS(204,188) encoding
* SupportWeb-based Network management
Specification
|
Input
|
Input
|
Max 1024 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP
|
|
|
|
|
Transport Protocol
|
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
|
|
|
|
|
Transmission Rate
|
Max 840Mbps for each GE input
|
|
|
|
Mux
|
1Input Channel
|
1024
|
|
|
|
|
Output Channel
|
32
|
|
|
|
|
Max PIDs
|
256 per channel
|
|
|
|
|
Functions
|
PID remapping(auto/manually optional)
|
|
|
|
|
|
PCR accurate adjusting
|
|
|
|
|
|
PSI/SI table automatically generating
|
|
|
|
Scrambling
Parameters |
Max simulscrypt CA
|
|
4
|
|
|
|
Scramble Standard
|
|
ETR289, ETSI 101 197, ETSI 103 197
|
|
|
|
Connection
|
|
Local/remote connection
|
|
|
RF Output
|
Interface
|
1 F typed output port for 16 carriers, 75Ω impedance
|
|
|
RF Range
|
50~960MHz, 1kHz stepping
|
|
|
Output Level
|
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
|
|
|
MER
|
≥ 40dB
|
|
General
|
Demission
|
420mm×440mm×44.5mm (WxLxH)
|
|
|
Temperature
|
0~45℃(operation), -20~80℃(storage)
|
|
|
Power Supply
|
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
