Quick Details
-
Application:
-
Tunnels, sewage treatment,building
-
Design Style:
-
Modern
-
Type:
-
curved wall formwork
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
Zeemo
-
Model Number:
-
ZMCW27
-
Product name:
-
Curved wall formwork
-
Material:
-
plywood
-
Surface treatment:
-
plastic coated or film faced
-
Size:
-
Customized
-
Thickness:
-
15-18mm
-
Weight:
-
20kg/ sqm
-
Accessories:
-
bolts nuts,screw,nuts
-
Feature:
-
repeatable 5-20 times
-
Bending strength:
-
EN310
-
Elasticity in bending:
-
EN310
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Tunnels, sewage treatment,building
-
Design Style:
-
Modern
-
Type:
-
curved wall formwork
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
Zeemo
-
Model Number:
-
ZMCW27
-
Product name:
-
Curved wall formwork
-
Material:
-
plywood
-
Surface treatment:
-
plastic coated or film faced
-
Size:
-
Customized
-
Thickness:
-
15-18mm
-
Weight:
-
20kg/ sqm
-
Accessories:
-
bolts nuts,screw,nuts
-
Feature:
-
repeatable 5-20 times
-
Bending strength:
-
EN310
-
Elasticity in bending:
-
EN310
Specification
Product Specification：
|
Size of back stud
|
Distance of LVL beams
|
Thickness of panels
|
|
28x100mm
|
200mm
|
14mm
|
Technical Data:
|
Testing items
|
|
Unit
|
Standard used
|
Tested value
|
|
|
Bonding quality
|
|
N/mm²
|
EN314
|
0.72
|
|
|
Bending strength
|
Longitudinal grain
|
N/mm²
|
EN310
|
50.0
|
|
|
|
Cross grain
|
N/mm²
|
|
40.2
|
|
|
Elasticity in bending
|
Longitudinal grain
|
N/mm²
|
EN310
|
5137
|
|
|
|
Cross grain
|
N/mm²
|
|
3519
|
|
|
Bearing concrete pressure
|
|
KN
|
EN310
|
70
|
|
Case
Zeemo tank formwork technology is very mature and has completed many projects.
SINGAPORE SEWAGE TREATMENT PLANT PROJECT
HK WASTE TREATMENT PLANT
TRINITY WATER TREATMENT PLANT ,TRINIDA &TOBAGO
Can be made into a variety of irregular shapes
Product Description

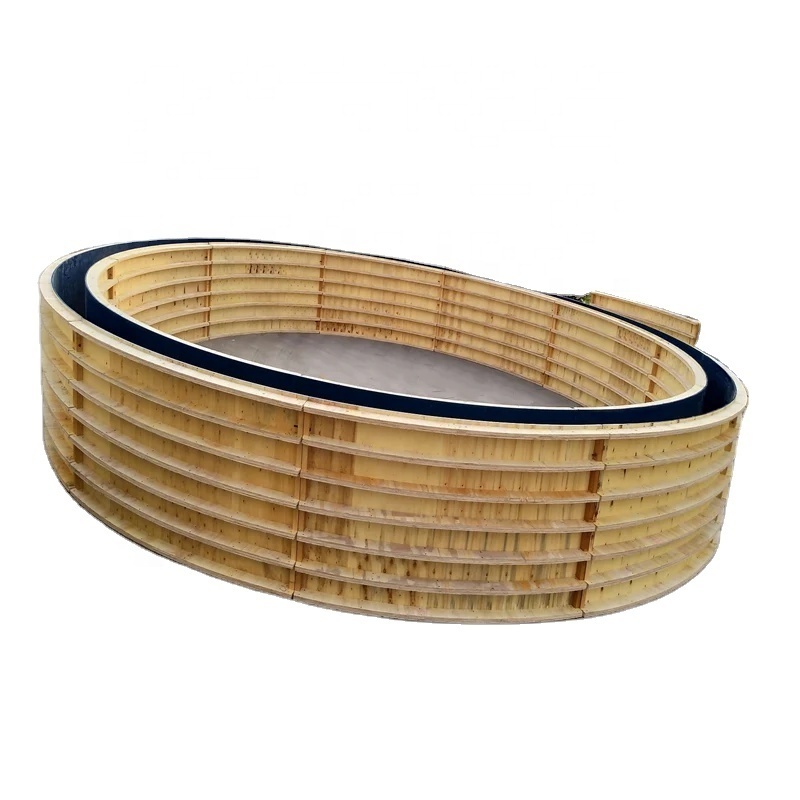

Zeemo customized plywood sewage treatment tank formwork
ZEEMO curved formwork is made of plywood, plastic coated face/back/edge.
This formwork is mostly used in irregular buildings, such as water tank, wall arches,
wavy wall
etc.
Advantage:
1.Easy installation, easy dismantle.Lightweight than steel ,easy handling, save time and labor
2.Lower cost
3.No need mold-release agent,water can clean, because surface is plastic.
4. Repeatable 5-20 times
5.Nice concrete finish ,no need re-work.
Installation:
1.Shape fixed , no need calibrate onsite
2.place the parts on the ground, joint the parts by fasteners.
2.place the parts on the ground, joint the parts by fasteners.
3.props and supports.
Certifications
Packing & Delivery
Packing Details:
1.Export package covered with waterproof shrinking film& craft paper.
2. Packing in pallet, curve parts 13pcs/pallet or special logistic packing according to customer request.
