Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Weight (KG):
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applicable Material:
-
metal and hard plastic
-
Laser source:
-
fiber laser
-
Marking Speed:
-
≤10000mm/s
-
Laser Power:
-
Fiber 50w/60W/100w
-
Laser wavelength:
-
1064μm
-
Marking Depth:
-
0.01-5mm
-
rated power consumption:
-
less than 1000w
-
standard marking area:
-
300*300mm
-
key wrod:
-
3d laser engraving machine
Quick Details
-
Working Accuracy:
-
0.002mm
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Weight (KG):
-
100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applicable Material:
-
metal and hard plastic
-
Laser source:
-
fiber laser
-
Marking Speed:
-
≤10000mm/s
-
Laser Power:
-
Fiber 50w/60W/100w
-
Laser wavelength:
-
1064μm
-
Marking Depth:
-
0.01-5mm
-
rated power consumption:
-
less than 1000w
-
standard marking area:
-
300*300mm
-
key wrod:
-
3d laser engraving machine

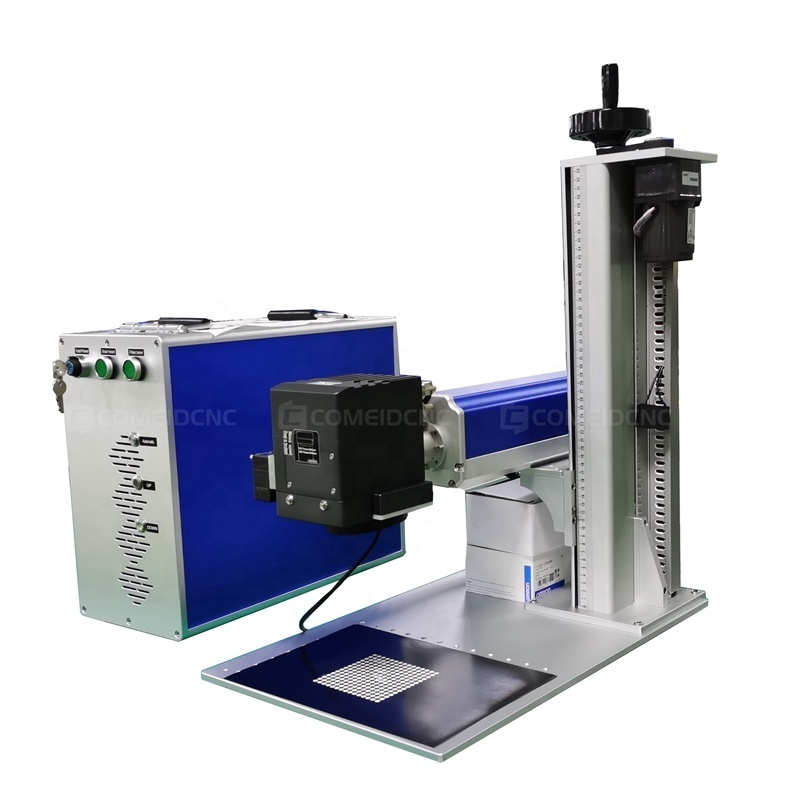

Mini bench top 100W 3D Laser Engraving Machine for metal steel aluminum
1. Our machine wiring have cable number, emergency stop protective cover,
2. P ower supply 100W JPT 100M7 fiber laser source,
3. M irror Jin Haichuang brand,
4. The computer professional industrial computer, together with the cabinet .
5. Newest difital galvo scanner head with 2 red dot and alarm. Aluminum Alloy body,
6. EZCAD 3.0 3D control system and software.
7. Metal: Stainless Steel, Brass, Aluminum, Steel, Iron etc. Non-metal: ABS, Nylon, PES, PVC,
|
Product |
metal laser marking machine |
|
Purpose |
Marking |
|
Laser source fiber |
100W JPT 100M7 |
|
Laser Wave Length |
1064nm |
|
Laser Output Power |
100w |
|
Gross Power |
<=1000kw |
|
Marking Speed |
10000mm/s |
|
Galvanometer |
Yes |
|
Lens |
F-Theta Lens |
|
Working Area |
200*200mm,300*300mm |
|
Beam Diameter/Quality |
M2<1.2 |
|
Repeatability |
0.01mm |
|
Positioning Accuracy |
0.01mm |
|
Min Line Width |
>=0.01mm |
|
Marking/Cutting Depth |
0.01-0.5mm(depending on material) |
|
Control |
Original EZ CAD3.0 3D |
|
Cooling |
Air cooled |
|
No.Axis |
2 Axis(Manual) |
|
Retation |
Optional(Aitomatic only) |
|
Power Supply |
AC220V,50/60HZ,1k VA(110-120V optional) |
|
Controller |
Computer with marking software |
|
USB2.0 Compatible |
YES |
|
Graphic format supported |
BMP DXF PLT AI |
|
Operation temperature |
0-40 degree |
|
Key Word |
3d laser engraving machine |
1. Optical Fiber Laser, easy operation and maintenance.
2. L aser source can use about 100000 hours.
3. Small volume and weight, less than 126KGS.
4. The software compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5. Runs without consumable spare parts, perfect for continuous working.
6.Computer Requires: XP and Win7 (32 bit)
7. Offer training videos CD.
