Quick Details
-
Brand Name:
-
Lonking
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
4750*2000*2500mm3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Type:
-
Powered Pallet Truck
-
Color:
-
Customer Demanded
-
Engine:
-
Xinchai
-
Weight:
-
8537kg
-
Tire:
-
Solid Pneumatic
-
Certification:
-
ISO CE
Quick Details
-
Min. Lifting Height:
-
2464mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lonking
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
4750*2000*2500mm3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Type:
-
Powered Pallet Truck
-
Color:
-
Customer Demanded
-
Engine:
-
Xinchai
-
Weight:
-
8537kg
-
Tire:
-
Solid Pneumatic
-
Certification:
-
ISO CE
Contact us
More forklifts

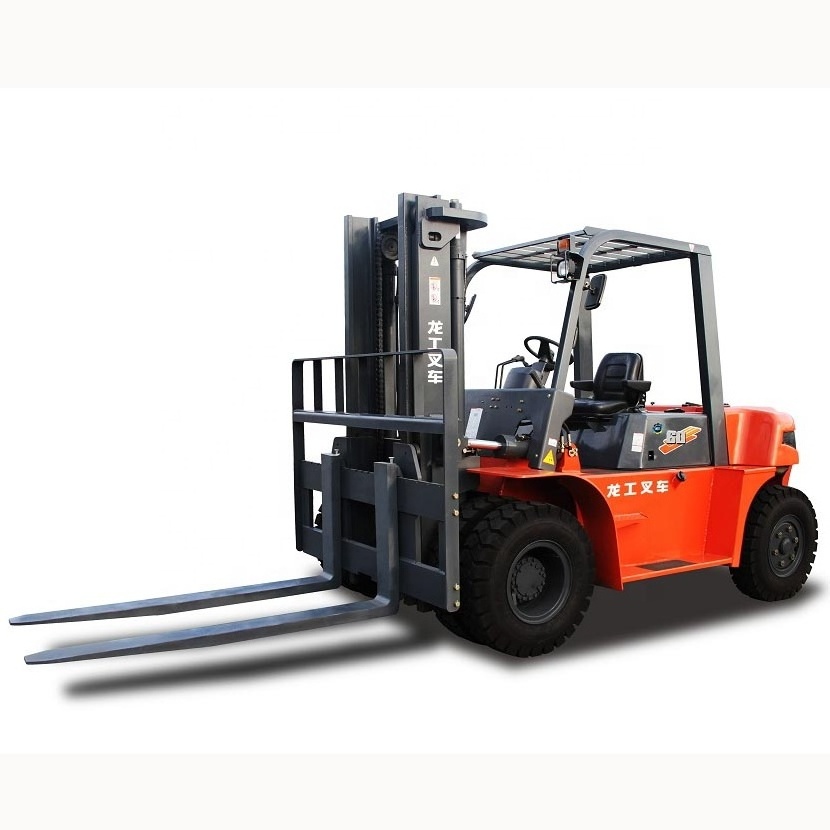

Logistics Equipment LG60DT features:
Internal Combustion Forklift
High Capacity Copper Radiator
Advanced Radiating Technology
Powerful Engine
High Visibility Mast
Following is detailed technical parameters Followingis detailed technical parameters
| Model | Unit | LG50DT | LG60DT | LG70DT | LG75DT | |
| CPCD50 | CPCD60 | CPCD70 | CPCD75 | |||
| Power type | / | diesel | diesel | diesel | diesel | |
| Rated capacity | kg | 5000 | 6000 | 7000 | 7500 | |
| J Load center | mm | 600 | 600 | 600 | 600 | |
| H1 STD lifting height | mm | 3000 | 3000 | 3000 | 3000 | |
| H3 freee lifting height | mm | 206 | 206 | 211 | 216 | |
| L5×W×T forke size | mm | 1220×150×60 | 1220×150×60 | 1220×150×65 | 1200×150×70 | |
| Mast tilt angle | deg | Forward 6 Backward12 | Forward 6 Backward12 | Forward 6 Backward12 | Forward 6 Backward12 | |
| L3 Front overhang | mm | 595 | 595 | 600 | 655 | |
| L4 Rear overhang | mm | 600 | 675 | 720 | 900 | |
| Dimension | L1 Overall length(with fork) | mm | 4715 | 4790 | 4840 | 5175 |
| W1 Overall width | mm | 1995 | 1995 | 1995 | 1995 | |
| h2 STD mast lower height | mm | 2500 | 2500 | 2500 | 2570 | |
| h4 OverHead guard height | mm | 2450 | 2450 | 2450 | 2510 | |
| the height of Load-backrest | mm | 1440 | 1440 | 1440 | 1440 | |
| R1 Min. turning radius | mm | 3240 | 3300 | 3370 | 3460 | |
| Ra Min intersecting aisle | mm | 5230 | 5315 | 5390 | 5515 | |
| Max travel speed(load/unload) | Km/h | 24/29 | 24/29 | 24/29 | 24/29 | |
| Max lifting speed(load/unload) | mm/s | 510/530 | 510/530 | 500/530 | 510/480 | |
| Gradeablity(load/unload) | % | 38/20 | 35/20 | 32/20 | 25/20 | |
| Self weight | kg | 8250 | 8950 | 9600 | 10200 | |
| tyre | front tires | / | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-20-14PR |
| Rear tires | / | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| Tread | S front tires | mm | 1470 | 1470 | 1470 | 1470 |
| P Rar tires | mm | 1700 | 1700 | 1700 | 1500 | |
| L2 axle distance | mm | 2300 | 2300 | 2300 | 2250 | |
| Min.ground clearance | m2 Mast | mm | 200 | 200 | 200 | 270 |
| m1 Frame | mm | 230 | 230 | 230 | 300 | |
| fuel tank capacity | ltr | 160 | 160 | 160 | 160 | |
| Engine | Tier 3 Emission engine | |||||
| Model | / | Yunnei /YN4F136-30CR | xichai/CA4DF3-12GCG3U | Yuchai/YC4A125-T300 | chaochai/CY6B332 | |
| Rated capacity | kW/r | 90/2400 | 85/2200 | 92/2200 | 85/2200 | |
| Rated torque | N·m/r | 460/1500-1800 | 460/1400-1500 | 480/1600-1800 | 450/1400-1800 | |
| cylinder number | / | 4 | 4 | 4 | 6 | |
| Displacement | L | 4 | 4.75 | 4.837 | 5.785 | |
