Quick Details
-
Wheel Size(mm):
-
175
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
450*150
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jeyew
-
Voltage:
-
Customized, 380V /220V / Customized
-
Dimension(L*W*H):
-
1550*1110*1650
-
Weight (KG):
-
650
-
Power (kW):
-
1.14
-
Product name:
-
M618 surface grinding machine
-
Keyword:
-
Surface grinder
-
After-sales Service:
-
Online Service
-
Worktable size:
-
460*180mm
-
Max travel of table:
-
500*190mm
-
Color:
-
Customizable
-
Package:
-
Wooden Case
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
170
-
Wheel Size(mm):
-
175
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
450*150
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jeyew
-
Voltage:
-
Customized, 380V /220V / Customized
-
Dimension(L*W*H):
-
1550*1110*1650
-
Weight (KG):
-
650
-
Power (kW):
-
1.14
-
Product name:
-
M618 surface grinding machine
-
Keyword:
-
Surface grinder
-
After-sales Service:
-
Online Service
-
Worktable size:
-
460*180mm
-
Max travel of table:
-
500*190mm
-
Color:
-
Customizable
-
Package:
-
Wooden Case
Product Description
Specification

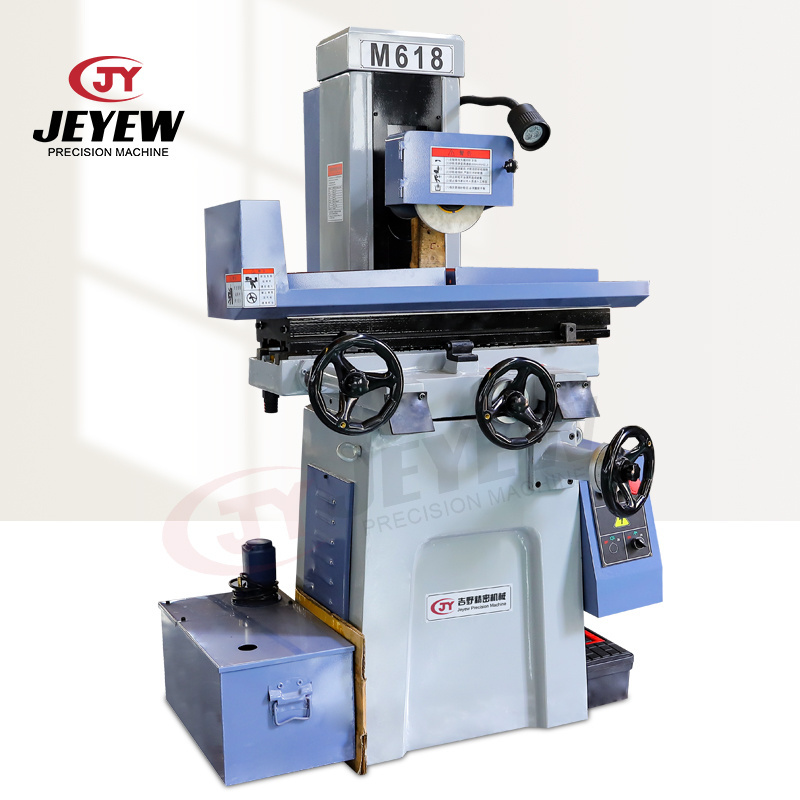

Mini surface grinding machine M618 micro surface grinding machine mini surface grinder
characteristics:
The spindle of M618 manual surface grinding machine adopts P4 grade precision bearing, which has high reliability and convenient maintenance.The machine tool adopts double V sticking plastic track horizontally, one V and one flat longitudinal track, and ball steel track (adopt overall quenching), which has high stability and accuracy, and easy and flexible operation.
The spindle of M618 manual surface grinding machine adopts P4 grade precision bearing, which has high reliability and convenient maintenance.The machine tool adopts double V sticking plastic track horizontally, one V and one flat longitudinal track, and ball steel track (adopt overall quenching), which has high stability and accuracy, and easy and flexible operation.
The movable parts are lubricated by hand-pulled oil lumps and equipped with various special accessories to meet the requirements of arc grinding and other complex forming.
|
Specification
|
|
Unit
|
M618
|
|
Worktable
|
Working surface of table
|
mm
|
450*150
|
|
|
Max table travel
|
mm
|
500
|
|
|
Max grinding size(W*L*H)
|
mm
|
170*500*270
|
|
|
T Slot(Number*Width)
|
mm
|
1*14
|
|
|
Max table load
|
kg
|
80
|
|
Grinding head
|
Distance between table surface and grinding wheel shaft center
|
mm
|
380
|
|
|
Table speed
|
m/min
|
Manual
|
|
|
Vertical feed handwheel 1 grad
|
mm
|
0.01
|
|
|
Vertical feed handwheel 1 Rev
|
mm
|
4.0
|
|
|
Cross feed handwheel 1 grad
|
mm
|
0.02
|
|
|
Cross feed handwheel 1Rev
|
mm
|
4.0
|
|
|
Feed per time(max)
|
mm
|
/
|
|
|
Feed per time(min)
|
mm
|
/
|
|
Work precision
|
Grinding wheel(OD*W*ID)
|
mm
|
175*13*31.75
|
|
|
Spindle speed(50Hz)
|
rpm
|
2850
|
|
|
Parallelism of the machined surface to the base surface
|
mm
|
300:0.005
|
|
|
Surface roughness
|
um
|
Ra0.63
|
|
Motor
|
Spindle motor
|
kw
|
1.1
|
|
|
Machine main motor
|
kw
|
1.14
|
|
Machine size
|
Net weight
|
kg
|
650
|
|
|
Gross weight
|
kg
|
700
|
|
|
Dimension(L*W*H)
|
mm
|
1550*1110*1650
|
