Quick Details
-
Application:
-
Crawler Excavator
-
Type:
-
Hydraulic
-
Material:
-
Steel
-
Certification:
-
ISO9001:2008
-
Model:
-
S120T S150T S300T
-
Master cylinder nominal pressure:
-
1200~3000KN
-
Master cylinder stroke:
-
150~220MM
-
The rated pressure:
-
28~63MPA
-
Color:
-
red, yellow and blue
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SJ
-
Name:
-
hydraulic track pin press
-
Application:
-
Crawler Excavator
-
Type:
-
Hydraulic
-
Material:
-
Steel
-
Certification:
-
ISO9001:2008
-
Model:
-
S120T S150T S300T
-
Master cylinder nominal pressure:
-
1200~3000KN
-
Master cylinder stroke:
-
150~220MM
-
The rated pressure:
-
28~63MPA
-
Color:
-
red, yellow and blue

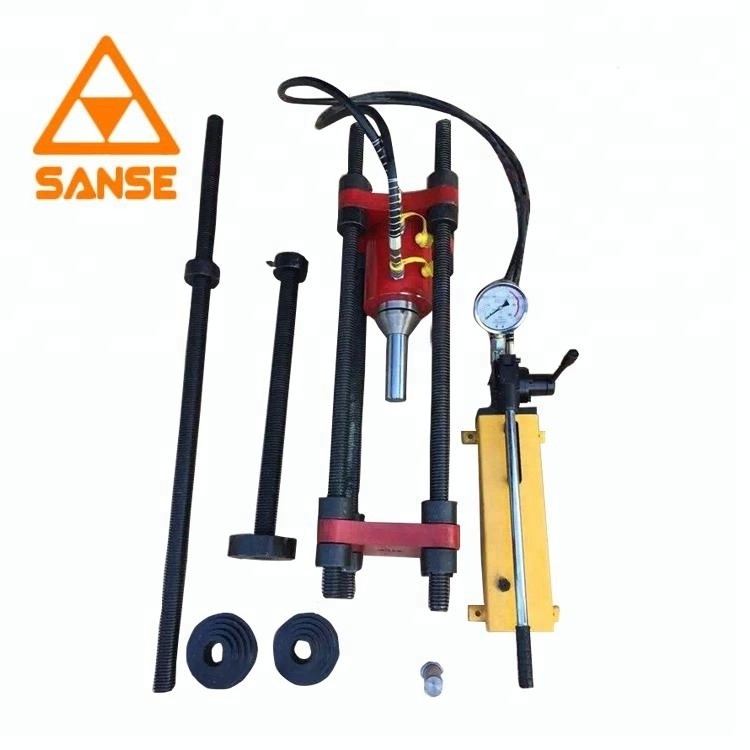

Manual pressure chain machine----
Primarily used to adopts crawler excavator, Help track link and pin production, renovation and maintenance.
Features:Apply all chain within 300 tons of models.Can hand to the site.Do not rely on electricity.Service anytime and anywhere.The efficiency is very high.
Advantages of our products
1.The agent factory
2.Good quality and reasonable price
3.Professional suggestion
4.Can customize according to customer's requirement!
|
Model |
S-150 T |
S-300 T |
|
Master cylinder nominal pressure: |
1500 KN |
3000 KN |
|
Master cylinder stroke: |
180 mm |
220 mm |
|
The rated pressure: |
31.5 mpa |
63 mpa |
|
Center height: |
30 mm to 90 mm |
30 mm to 110 mm |
|
Reference colors: |
red, yellow and blue |
red, yellow and blue |
Pressure chain machine, S- 150 T
A pply to pitch under 260 caterpillar track section of dismantling.The adoption of advanced welding technology, body consists of three pillars of connection, the stability is good.Center height can be adjusted by the same, light body, with manual pump station is suitable for field operation, at the same time as the workshop renovation tools, high efficiency, saving time and effort, but also can be used as a small hydraulic press disassembling a few small parts.Roller chain - 150 t working principle: this machine is according to the principle of hydraulic energy into mechanical energy, high pressure pump as power source, the piston rod drives the disassembling tools, of caterpillar axis pin and pin to tear open outfit.Replace the original cutting and hammering method, the sound track is not damaged.Ideal is the crawler excavator maintenance, assembly special tools.Field rescue, only need to pull down a screw, machine as for broken caterpillar track section, fixed, can easily broken caterpillar shaft pin and pin removal or installation.Technical parameters:Master cylinder nominal pressure: 150 t , The largest diameter: 50 mm
Pressure chain machine, S- 300 T
A dopting the advanced welding technology, the body is composed of three columns connection, the stability is good.Center height can be adjusted, the flexible body can tear open outfit, suitable for field operation.High efficiency, and saves time and effort, and at the same time also can be used as a small hydraulic press disassembling a few small parts.This machine is suitable for large excavator, large field rescue repair caterpillar engineering vehicles.Can tear open outfit caterpillar track pitch of 135-360 heavy import drivers, bulldozers and other caterpillar caterpillar class models.The United States imported 5230 b carter caterpillar dedicated machine.The machine can also be used together with electric pump stations.300 tons of manual pressure chain machine technical parameters:Diameter: 85 mm
