Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Newmao
-
Model Number:
-
NMDP-42 Series
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
96W
-
Cable Length:
-
1M
-
Outlet Size:
-
1/2"-14 MNPT
-
Power:
-
96W, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Head:
-
38 meter
-
Type:
-
Positive Displacement 4 Chamber Diaphragm Pump
-
Port:
-
1/2"-14 MNPT
-
Priming Capabilities:
-
6 Feet (1.8m) suction lift
-
Run Dry:
-
Capable for Normal Workloads 5 Minutes
-
Motor:
-
Permanent Magnet, Intermittent Duty
-
Protection:
-
Thermal Overload Start on 239 °F(115° C), Automatic Restart
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Family Homes, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Mining industry, Raw Water Intake, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
55PSI / 3.8BAR
-
Voltage:
-
12/24V
-
Warranty:
-
1 year
-
Brand Name:
-
Newmao
-
Model Number:
-
NMDP-42 Series
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
96W
-
Cable Length:
-
1M
-
Outlet Size:
-
1/2"-14 MNPT
-
Power:
-
96W, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Head:
-
38 meter
-
Type:
-
Positive Displacement 4 Chamber Diaphragm Pump
-
Port:
-
1/2"-14 MNPT
-
Priming Capabilities:
-
6 Feet (1.8m) suction lift
-
Run Dry:
-
Capable for Normal Workloads 5 Minutes
-
Motor:
-
Permanent Magnet, Intermittent Duty
-
Protection:
-
Thermal Overload Start on 239 °F(115° C), Automatic Restart
RV water treatment
Yacht and boat water treatment
Agriculture irrigation
Housing water supply boost
High level building water boost
Liquid transfer
Products features
For better user experiences
Features & Benefits
1.Flow rate up to 5.0 GPM [18.9 LPM]
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
2.Can run dry without damage
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
|
Product Name
|

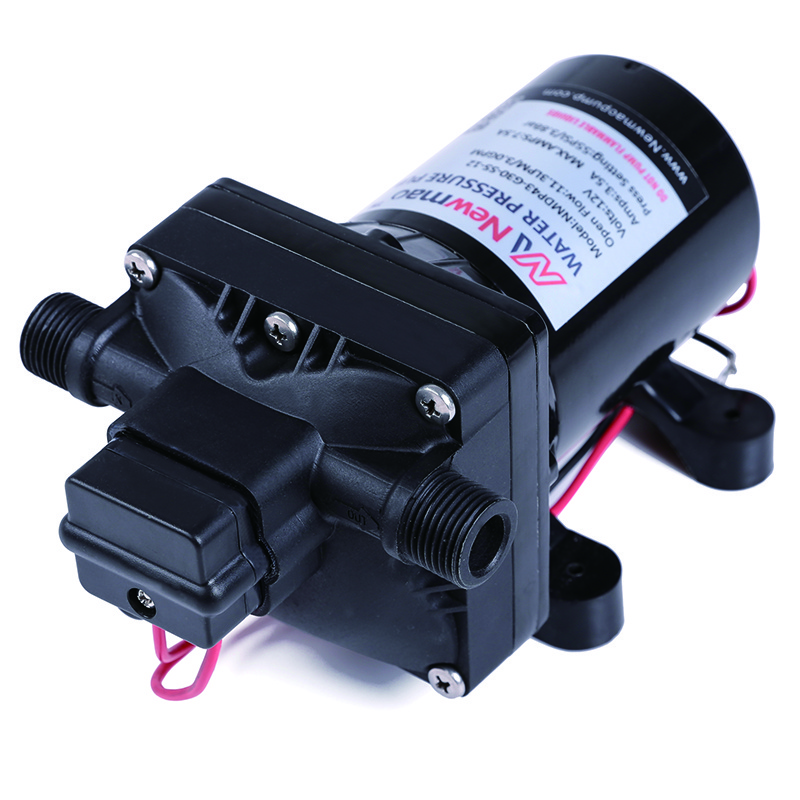

Newmao 42 series water pump DC 12V/24V
|
|
Pump Type
|
4 Chambers Positive Displacement Diaphragm Pump
|
|
Max Flow Rate
|
5.0 GPM [18.9 LPM]
|
|
Max Pressure
|
55 PSI / 3.8 Bar Max shut-off pressure
|
|
Voltage
|
DC 12V / 24V
|
|
Max Amp
|
4.0 A
|
|
Fuse
|
8.0 A
|
|
Switch Type
|
Built-in bypass and on-demand pressure switch
|
|
Diaphragm Material
|
Santoprene
|
|
Valve Material
|
Viton, and EPDM is available
|
|
Duty Cycle
|
Continuous
|
|
Self Priming
|
6' [1.8 m] suction
|
|
Max Fluid Temp
|
140 °F [60 °C]
|
|
Inlet & Outlet Port
|
1/2"-14 MNPT
|
The 42 Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 4 chamber diaphragm pump provides up to 5.0 gallons per minute and is capable of self-priming, up to 6 vertical feet, and can run dry without damage. Serves 3 or more
1/2"-14 MNPT
. This automatic demand water system. pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
.
The 42 series
|
Model
|
Voltage
|
Open flow
(GPM/LPM)
|
Max draw
|
Shut-off pressure
(PSI / BAR)
|
Ports
|
Wire connections
|
|
NMDP42-G20-55-12
|
12V
|
2.0 / 7.6
|
6.5A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G20-55-24
|
24V
|
2.0 / 7.6
|
3.5A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G30-55-12
|
12V
|
3.0 / 11.3
|
8.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G30-55-24
|
24V
|
3.0 / 11.3
|
4.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G40-55-12
|
12V
|
4.0 / 15
|
10.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G40-55-24
|
24V
|
4.0 / 15
|
6.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G50-55-12
|
12V
|
5.0 / 18.9
|
15.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
|
NMDP42-G50-55-24
|
24V
|
5.0 / 18.9
|
7.0A
|
55 / 3.8
|
1/2"-14 MNPT
|
2-pin / Lead
|
Dimensions
Performance
|
Unit N.W
|
3.0KG
|
|
Unit Size
(L x W x H)
|
26cm x 15 cm x 13 cm
|
|
Unit G.W
|
3.3 KG
|
|
Master Carton Qty
|
8 pcs / carton
|
|
Master Carton Size (L x W x H)
|
53.5cm *31.5 cm *28.5 cm
|
|
Master Carton Weight
|
27 KG
|
