Quick Details
-
Throat Depth (mm):
-
1.5 mm
-
Brand Name:
-
Luzhong Machine
-
Power (kW):
-
0 kW
-
Weight (KG):
-
490 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
Manual
-
Dimension(L*W*H):
-
168x76x115
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Rated Power:
-
None
-
Product name:
-

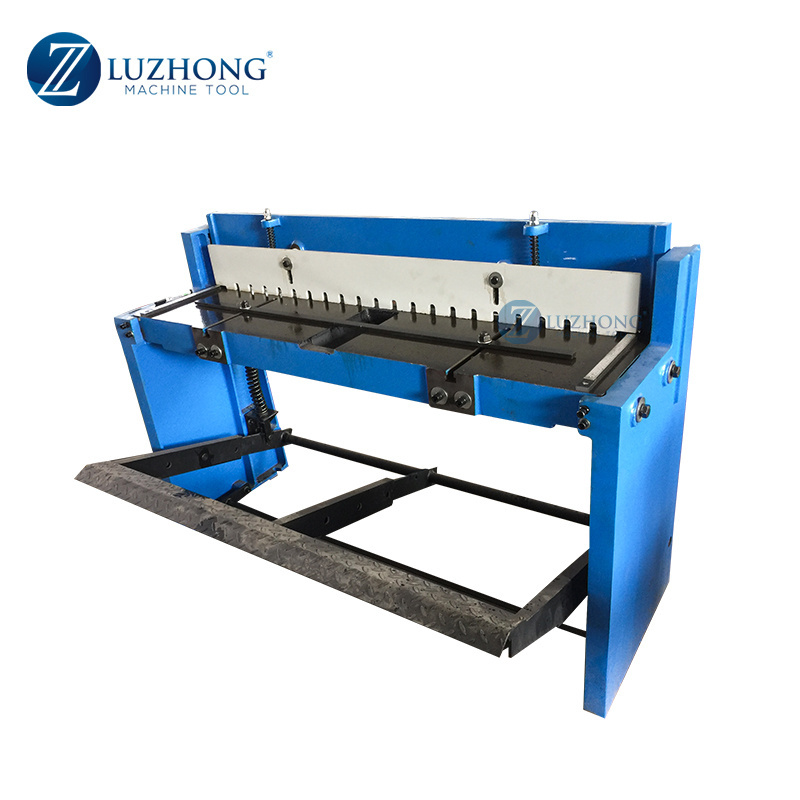

Shearing Machine Q01-1.5x1320A Manual Sheet Metal Shearing Machine
-
Color:
-
optional
-
Control system:
-
manual
-
Material:
-
sheet metal plate
-
Model:
-
Q01-1.5x1320A
-
Application:
-
manual sheet metal cutting machine
-
Width (mm):
-
1320
-
Max. Shearing thickness (mm):
-
1.5
-
Certification:
-
CE ISO
Quick Details
-
Max. Cutting Width (mm):
-
1320 mm
-
Max. Cutting Thickness (mm):
-
1.5 mm
-
Blade Length (mm):
-
1320 mm
-
Throat Depth (mm):
-
1.5 mm
-
Brand Name:
-
Luzhong Machine
-
Power (kW):
-
0 kW
-
Weight (KG):
-
490 KG
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
Manual
-
Dimension(L*W*H):
-
168x76x115
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support
-
Rated Power:
-
None
-
Product name:
-
Shearing Machine Q01-1.5x1320A Manual Sheet Metal Shearing Machine
-
Color:
-
optional
-
Control system:
-
manual
-
Material:
-
sheet metal plate
-
Model:
-
Q01-1.5x1320A
-
Application:
-
manual sheet metal cutting machine
-
Width (mm):
-
1320
-
Max. Shearing thickness (mm):
-
1.5
-
Certification:
-
CE ISO
Product Description
Specification
Specifications
The foot shear features pedal shearing without using your hands.Used
Strong cutting capability, reduction of labor intensity
Features:
The Manual shear is with a fully welded steel structure, high strength
Strong cutting capability, reduction of labor intensity
Foot pedal can extend and shorten freely
The height of foot pedal is low, easy operation
Used for mild steel aluminum copper, brass zinc plastic and leads
High carbon and chrome steel blade
Technical Specifications
The foot shear features pedal shearing without using your hands.Used
Strong cutting capability, reduction of labor intensity
Features:
The Manual shear is with a fully welded steel structure, high strength
Strong cutting capability, reduction of labor intensity
Foot pedal can extend and shorten freely
The height of foot pedal is low, easy operation
Used for mild steel aluminum copper, brass zinc plastic and leads
High carbon and chrome steel blade
Technical Specifications
|
Model
|
Q01-1.0x1000
|
Q01-1.5X1320
|
Q01-2X1000
|
Q01-2X1000A
|
Q01-1.5X1320A
|
|
Width (mm)
|
1000
|
1320
|
1000
|
1000
|
1320
|
|
Max. Shearing thickness (mm)
|
1.0
|
1.5
|
2.0
|
2.0
|
1.5
|
|
Back gauge range (mm)
|
0-700
|
0-700
|
0-700
|
0-800
|
0-800
|
|
Packing size (cm)
|
140x76x115
|
168x76x115
|
140x76x115
|
140x76x115
|
168x76x115
|
|
N.W./G.W. (kg)
|
365/410
|
491/545
|
405/450
|
355/400
|
430/500
|
