Quick Details
-
product number:
-
TS-IR03
-
Application:
-
Home Automation
-
Material:
-
Plastic
-
Color:
-
Black
Quick Details
-
Usage:
-
home appliances
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
tilt switch
-
product number:
-
TS-IR03
-
Application:
-
Home Automation
-
Material:
-
Plastic
-
Color:
-
Black

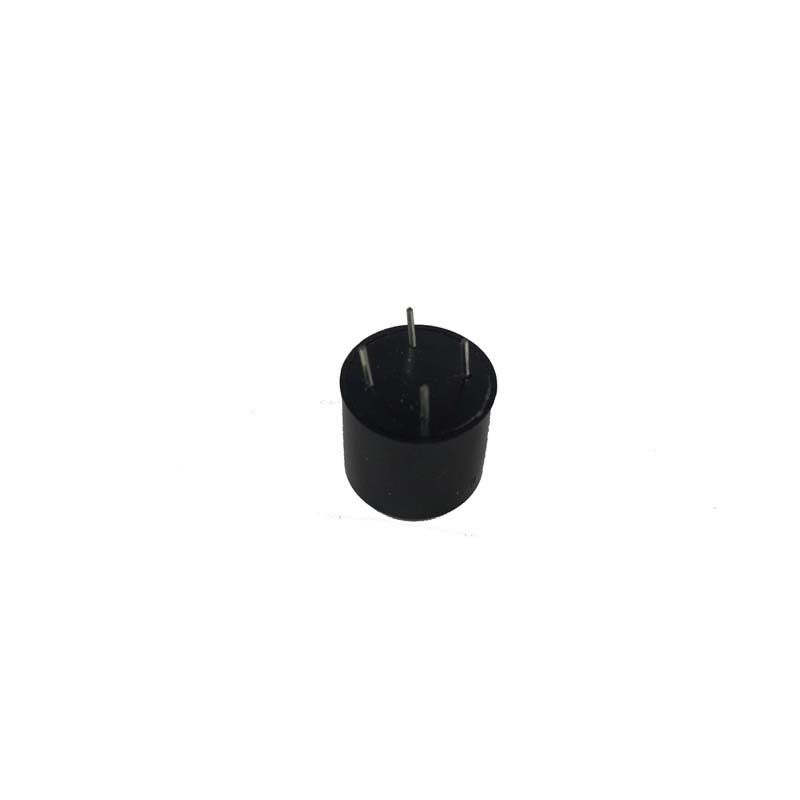

TS-IR03 starter kit tilt switch sensor tilt switch wireless tilt sensor for arduino
Application:
Heaters,
Electrical Irons
Fans,
Air Purifiers
Humidifiers,
Cooling Fans,
Air Conditions or other appliances that need to be protected from tipping.
Product features:
1. High precision in detecting tipping angle
2. Fast response time
3. High sensitivity
4. Small in size and low in cost
5. Satisfying the requirements in Safety Standards
6. This product itself will remain within RoHS compliant version
| Absolute maximum ratings (Ta=25℃) | |||||||
| Parameter | Symbol | Limit | Units | ||||
| Input(IR) | Forward Current | I F | 20 | mA | |||
| Reverse Voltage | V R | 5 | V | ||||
| Power Dissipation | P D | 70 | mW | ||||
| Output(Phototransistor) | C-E Voltage | V CEO | 30 | V | |||
| E-C Voltage | V ECO | 4.5 | V | ||||
| Collector current | I C r | 30 | mA | ||||
| Power Dissipation | P D | 80 | mW | ||||
| Operating Temperature | Topr | -20~+65 | °C | ||||
| Storage Temperature | Tstg | −40~+80 | °C | ||||
| Working Life | Life | 50000 | h | ||||
| Lead soldering Temperature | Tsol | 260±5 | ° C | ||||
| Electro-Optical Characteristics (Ta=25℃) | |||||||
| Parameter | Symbol | Min. | Typ. | Max. | Units | Conditions | |
| Input | Forward Voltage | V | -- | 1.2 | 1.6 | V | IF=20mA |
| Reverse Current | I R | -- | -- | 10 | uA | Vr=5V | |
| Peak wavelength | λ | -- | 940 | -- | nm | ||
| Output | Dark Current | I CEO | -- | 1 | 100 | nA | Vc E =10V |
| C-E Saturation Voltage | V CE(SAT) | -- | -- | 0.4 | V | IC=2mA,Ee=1mW/cm2 | |
| Transfer Characteristics | Collector Current | I C(ON) | 0.3 | ---- | -- | mA | VCE=5V,IF=10mA |
| Leakage Current | I CEOD | -- | -- | 1 | uA | VCE=5V,IF=10mA | |
| Rise time | Tr | -- | 15 | -- | u sec |
VCE=2V
IC=1mA RL=1KΩ |
|
| Fall time | Tf | -- | 15 | -- | u sec | ||
Notes:
The switch can be detected by 360° full radial direction against tipping over
2. 30°±5°/ Tip over action angle is 30°±5°in every radial direction
3. 70°±5° /Recover action angle is 70°±5°in every radial direction
