Quick Details
Quick Details
-
Model Number:
-
PAT-635
-
Place of Origin:
-
China
Product Description
It consists of a transmitter
5.8GHZ
wireless transmission schemes and having advantages of long distance transmission, strong anti-interference and high mobility. By means of radio waves, it can transmit the signal from DVD player, DVRCCTV camera, IPTV, Satellite receiver, Digital TV Set Top Box or any other AV devices at the transmitter end to TV sets in different rooms at the receiver end. It can support the R remote control at the receiver end to realize the function of wireless control of devices from another place. So that you can enjoy freely wireless HDAV sharing data and HI-FI audio and video effect

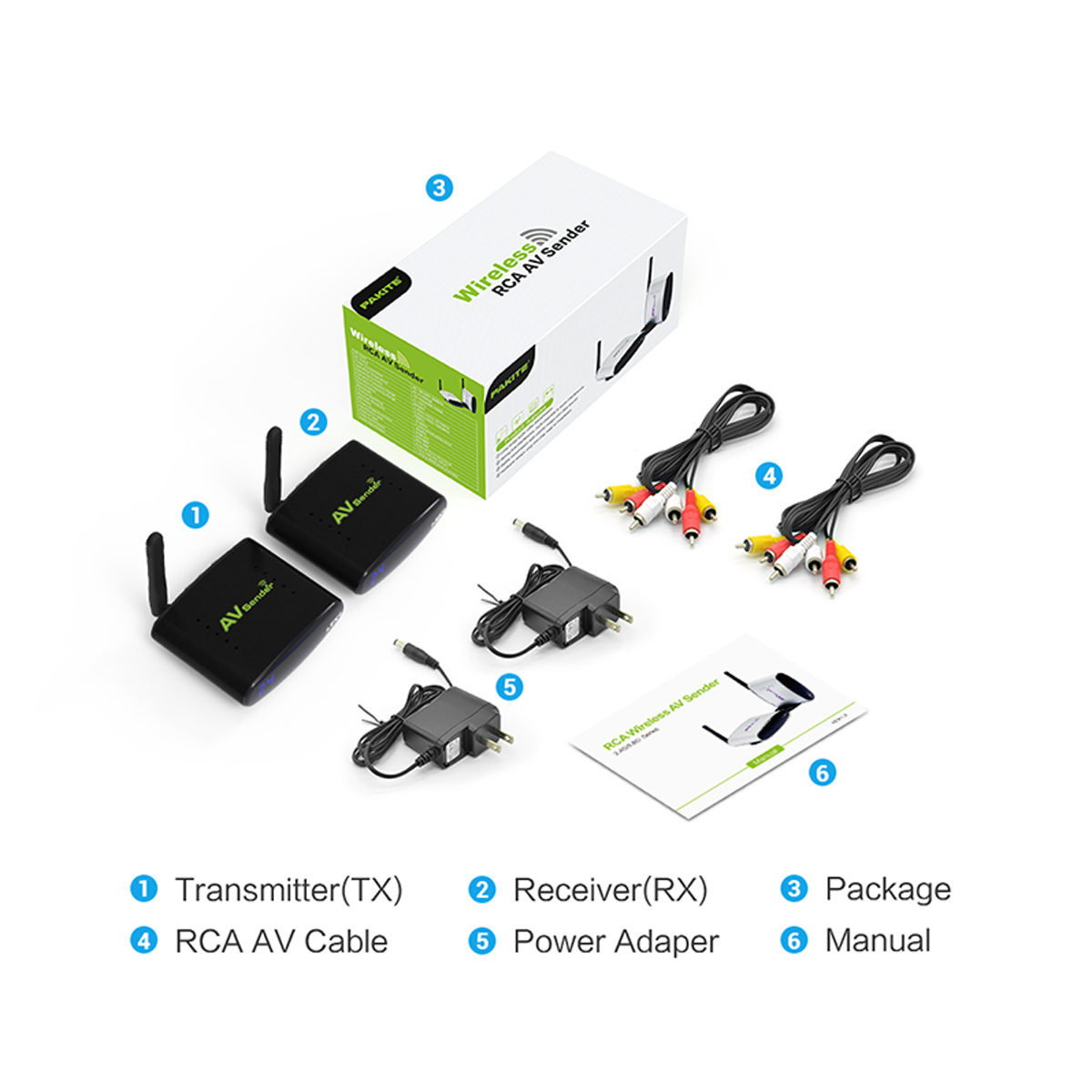

Package included:
1 x Transmitter
1 x Receiver
1 x RCA AV Cable
1 x Power Adapter
1 x User manual
Specification:
1.DC Input:AC100-240V 50 / 60HZ
2.DC Output:5V = = 1000MA
3.Power Consumption:TX : 100MA / RX : 170MA
4.Operating Temperature:0- + 50℃
5.Operating Humidity:85 % RH
6.Operating Frequency Range:5545-5945MHZ
7.Demodulation:FM / PLL
8.Bandwidth:16.5MHZ
9.Channel Switching:
24CH
10.Receiver Sensitivity:-86dbm
11.S/N Ratio:50dB Min
12.Output Image Resolution:720X480P
13.Input/Output Jack:RCA Jack
14.Video Input/Output:1vp-p , 750Ω , PAL / NTSC
15.Audio Input/Output:1.5vp-p , 600Ω , Dual Channels
16.Model:PAT-635
17.Color:Black
18.Transmission distance:
200meters
19.Package weight:0.6kg
20.Package size:21*11.5*10cm
Function and features:
1.Support multiple channels to choose, effectively avoiding interference from wireless signals such as wireless routing
2.The transmitter supports 1 channel AV signal input, and the receiver supports 1 channel AV signal output
3.When the transmitter and the receiver are in the same channel, the transmitter is supported to use with multiple receivers
4.Support PAL/NTSC audio and video transmission, wireless receiving images are clear and stable, colorful ,clear sound and no noise
5.Full hardware design, no software, plug and play, compact appearance, size: 10 x 8.5 x 3.0 5. 8GHZ module has passed the FCC and CE certification, wireless application is safe and reliabl
