Using domestic engine, gearbox, low speed and high torque, the climbing performance is greatly improved.
With superior waterproof performance, high-level waterproof sealing treatment is adopted for vehicle lines and electrical
appliances, which effectively avoids the phenomenon of electric leakage due to excessive water in the roadway.
Large angle steering, smaller turning radius, more suitable for complex road conditions with narrow and curved roadways.
Domestically used regular steel frames for automobiles are more tough than traditional riveted and welded frames, and they remain
intact after heavy pressing.
All parts are all national first-line brand products, with strong versatility and quality reaching domestic level.
- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5000
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Beijun
-
Place of Origin:
-
Shandong
-
Engine Brand:
-
changchai
-
Gear Box Brand:
-
other
-
Cargo Tank Dimension:
-
4500*2000*2650
-
Product name:
-
BJC-80
-
Color:
-
red
-
Brand:
-
Beijun
-
Carriage size:
-
2800*2600*600
-
Capacity (Load):
-
1-8
-
engine power:
-
85kw
-
Track specifications and models:
-
450*90*70
-
Dead weight of vehicle:
-
5000kg
-
speed km/h:
-
0-25
-
rated load:
-
8ton
Quick Details
-
Condition:
-
New
-
Horsepower:
-
85
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5000
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support
-
Brand Name:
-
Beijun
-
Place of Origin:
-
Shandong
-
Engine Brand:
-
changchai
-
Gear Box Brand:
-
other
-
Cargo Tank Dimension:
-
4500*2000*2650
-
Product name:
-
BJC-80
-
Color:
-
red
-
Brand:
-
Beijun
-
Carriage size:
-
2800*2600*600
-
Capacity (Load):
-
1-8
-
engine power:
-
85kw
-
Track specifications and models:
-
450*90*70
-
Dead weight of vehicle:
-
5000kg
-
speed km/h:
-
0-25
-
rated load:
-
8ton
Product Overviews

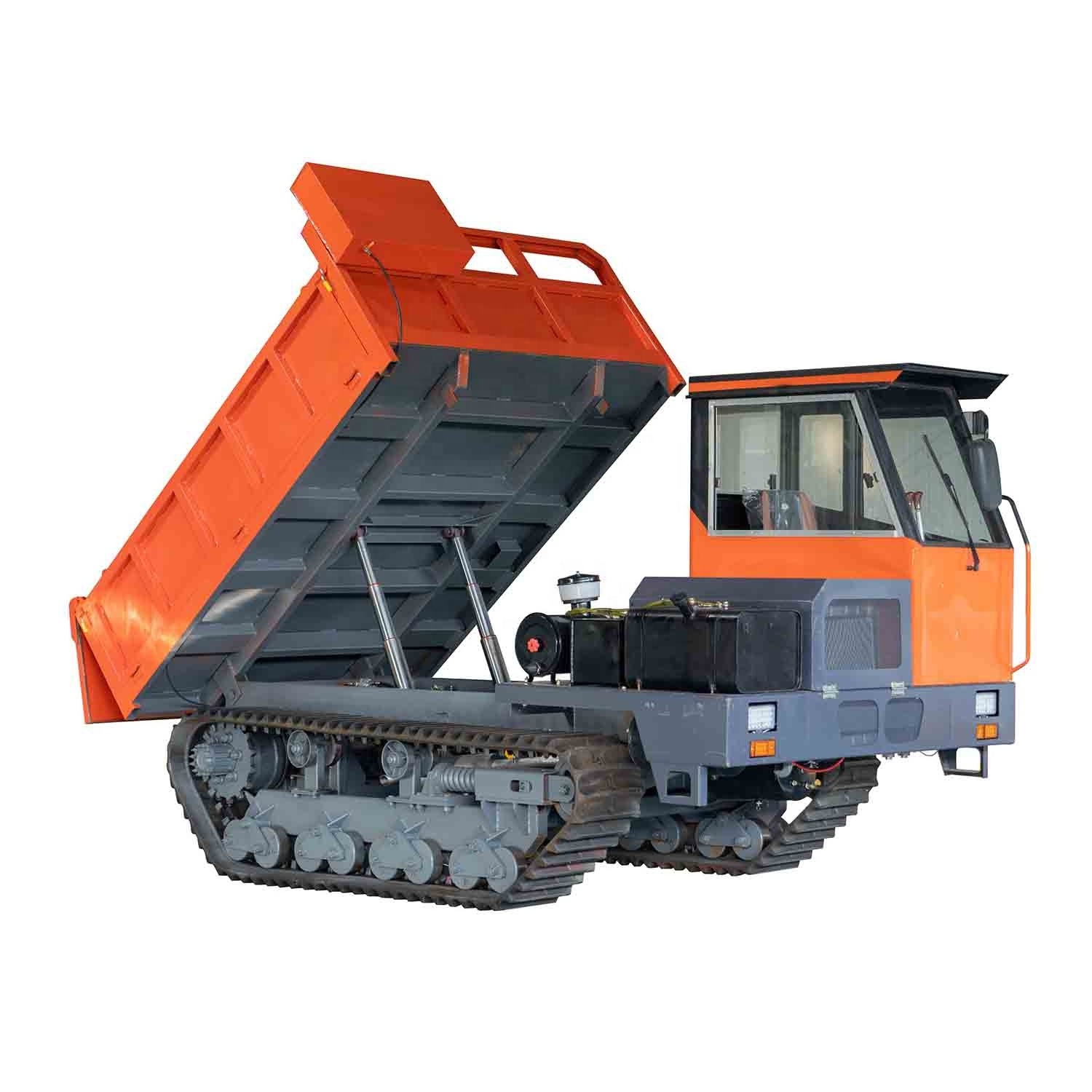

Performance characteristics of BJC-80 seated crawler transport vehicle
Product Paramenters
|
Type number
|
BJC-80 Vehicle
|
|
Length*width*height (mm)
|
4500*2000*2650
|
|
Cabin size (mm)
|
2800*2000*600
|
|
Carriage plate thickness (mm)
|
Bottom 4 sides 3
|
|
Chassis width (m)
|
2
|
|
Engine model
|
Yuchai 4102 Turbo
|
|
Engine power
|
85KW
|
|
Drive method
|
Air brake rear axle brake
|
|
Crawler specifications
|
450*90*70
|
|
Crawler system
|
Engineering rubber track
|
|
Number of unilateral tugs
|
8 groups
|
|
Tug diameter
|
Increased solid wheel 206 Bearing
|
|
Gearbox model
|
Wanliyang 545 Gearbox
|
|
Drive axle model
|
Dongfeng 153
|
|
Hydraulic cylinder model
|
115*900 Double top dumper
|
|
Start method
|
Electric Kai
|
|
Rated load (T)
|
8
|
|
Vehicle weight( kg)
|
5000
|
|
Gear
|
5 forward，Reverse 1 gear
|
|
Driving speed (km/h)
|
0-25
|
