Quick Details
-
Dimension(L*W*H):
-
1630*1250*900
-
Application:
-
carpentry
-
Weight (KG):
-
460 KG
-
Power (kW):
-
3kw
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
motor and bearings
-
Name:
-

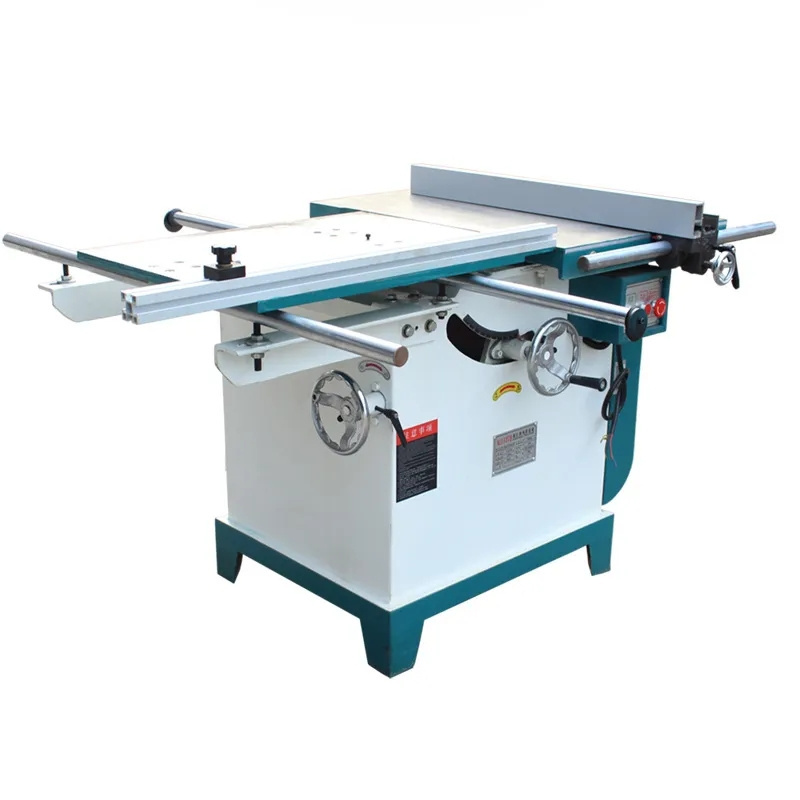

MJ113TB Universal tilting circular saw
-
Shaft speed:
-
3800r/min
-
Spindle dia:
-
30 mm
-
Blade Diameter:
-
305 mm
-
Maximum sawing thickness:
-
950 mm
-
Work piece length:
-
1450mm
-
Maximum longitudinal section width:
-
1450mm
-
Inclination angle of saw blade:
-
90°~ 45°
-
45 degree cutting height::
-
65MM
-
The maximum stroke of the push table::
-
680 mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Usage:
-
Sawing Plank/Square Log
-
Voltage:
-
380V/50HZ/3PH, Or Customized
-
Dimension(L*W*H):
-
1630*1250*900
-
Application:
-
carpentry
-
Weight (KG):
-
460 KG
-
Power (kW):
-
3kw
-
Marketing Type:
-
hot sale with competitive price
-
Core Components:
-
motor and bearings
-
Name:
-
MJ113TB Universal tilting circular saw
-
Shaft speed:
-
3800r/min
-
Spindle dia:
-
30 mm
-
Blade Diameter:
-
305 mm
-
Maximum sawing thickness:
-
950 mm
-
Work piece length:
-
1450mm
-
Maximum longitudinal section width:
-
1450mm
-
Inclination angle of saw blade:
-
90°~ 45°
-
45 degree cutting height::
-
65MM
-
The maximum stroke of the push table::
-
680 mm
Product Description
Specification
|
Shaft speed
|
3900r/min
|
|
Spindle dia
|
30 mm
|
|
Blade Diameter
|
305 mm
|
|
Maximum sawing thickness
|
100 mm
|
|
Maximum transverse width
|
950 mm
|
|
Maximum longitudinal section width
|
650mm
|
|
Inclination angle of saw blade
|
90°～ 45°
|
|
Fixed Table size
|
900×880 mm
|
|
move Table size
|
700×400 mm
|
|
Dimensional stroke of mobile worktable
|
1000mm
|
|
Workbench height
|
805mm
|
|
Motor power
|
3kw
|
|
Overall dimension
|
1580×1340×1000 mm
|
|
Net weight
|
280kg
|
|
Gross weight
|
280kg
|
Packing & Delivery
MJ113TB Universal tilting circular saw Woodworking swing angle sliding table panel saw
Packaging Detailssingle
Packing size:1600x1360x1002mm
Gross weight; 280kg
Packing quantity:one piecePortQingdao,Ningbo,Shanghai,Guangzhou
Packaging Detailssingle
Packing size:1600x1360x1002mm
Gross weight; 280kg
Packing quantity:one piecePortQingdao,Ningbo,Shanghai,Guangzhou
