Quick Details
-
Color Temperature(CCT):
-
3000-6500K
-
CRI (Ra>):
-
83
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HNX-TM65-40W4F
-
Brand Name:
-
HonLight
-
Input Voltage(V):
-
AC85-265V /AC200-240V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
4800
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Product Name:
-
LED batten light ceiling hanging led light waterproof led strip light
-
Power:
-
20W/36W/40W/ 60W
-
Length:
-
600mm/900mm/1200mm/1500mm/1800mm
-
Material:
-
Alumimum + PC Cover
-
Beam angle:
-
120 Degree
-
CRI:
-
83ra (high CRI90 also available)
-
Installation:
-
Surface or Suspended Installation
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
140
-
IP Rating:
-
ip65, IP65
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500K
-
CRI (Ra>):
-
83
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
HNX-TM65-40W4F
-
Brand Name:
-
HonLight
-
Input Voltage(V):
-
AC85-265V /AC200-240V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
4800
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Product Name:
-
LED batten light ceiling hanging led light waterproof led strip light
-
Power:
-
20W/36W/40W/ 60W
-
Length:
-
600mm/900mm/1200mm/1500mm/1800mm
-
Material:
-
Alumimum + PC Cover
-
Beam angle:
-
120 Degree
-
CRI:
-
83ra (high CRI90 also available)
-
Installation:
-
Surface or Suspended Installation

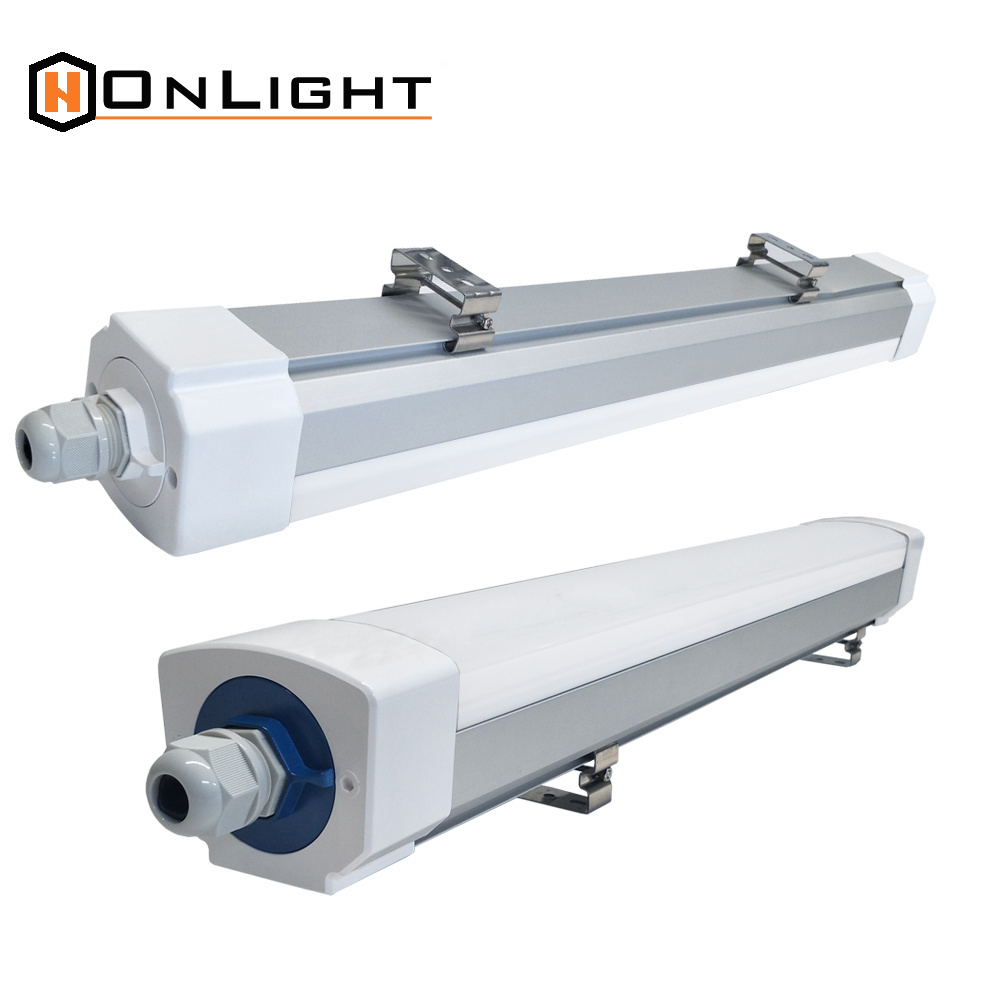

LED batten light ceiling hanging led light waterproof led strip light
- Aluminum Housing with Opal Frosted and Clear Strip Diffuser for option
- Available in different sizes from 0.6 m /2ft to 1.8 m / 6ft and powers from 20 watt to 80 watt
- Cable self-mounted, plug-and-play connection, detachable end cap fit for self-wiring connection
- 100~110 lm/w , 130~140 lm/w
- IP65 waterproof, IK07, Mini size for special area .
- L80B50 (Ta = 25℃): 75,000 hrs
With 6 years of continuous improvement and innovation, Eco Mini Series led tri proof light has been evolved to be one of HonLight products series to offer an extensive application range from commercial to industrial for any retrofit or new installation, also it is a genuine champion for being energy-efficient and cost-effective.
If you are looking for an ideal luminaire for your parking lot, garage, warehouse, supermarket, workshop, corridor, shop, etc, it will be your best option.
| Model Name | Macro Series | ||
| Model Number | HNX-TM65-20W2F | HNX-TM65-40W4F | HNX-TM65-60W5F |
| Material | Aluminum Housing + PC Diffuser | ||
| Power | 20 Watt | 40 Watt | 60 Watt |
| Length | 600mm / 2ft / 24 inch | 1200mm / 4ft / 48 inch | 1500mm / 5ft / 60 inch |
| Beam Angle | 120 degree | ||
| CRI | > 83ra | ||
| Power Factor | >0.95 | ||
| Lumen Efficacy | 90-140lm/w | ||
| IP Rate | IP65 | ||
| IK Rate | IK08 | ||
| Working Temperature | -25~+45℃ | ||
| Storage Temperature | -40~+70℃ | ||
| Microwave Motion Sensor | Optional | Optional | Optional |
| 1-10V Dimmable | Optional | Optional | Optional |
| Emergency (Built-in) | Optional | Optional | Optional |
| Installation | Ceiling Mounted or Suspened Mounted | ||
| Power Supply | Single end power wiring or Double end power wiring (linkable) | ||
| Certificate | CE ROHS LVD EMC | ||
| Model No | Qty/CTN | GW/CTN (KG) | CTN Size (CM) |
| HNX-TM65-20W2F | 9 pcs | 10.5 | 68*34*31 |
| HNX-TM65-40W4F | 9 pcs | 17.5 | 128*34*31 |
| HNX-TM65-60W5F | 9 pcs | 20.0 | 158*34*31 |
