Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Santo
-
Model Number:
-
JK, JM, JT, JKL
-
Color:
-
As your demand
-
Rated speed:
-
0~46m/min
-
Rope Capacity:
-
100~3600m
-
Bases:
-
FIxed type or moveable type
-
Motor Power:
-
3~160KW
-
Machine Weight:
-
165~46000Kg
-
Rope diameter:
-
7.7~65mm
-
Control:
-
cam controller
-
Rope guider:
-
included
-
Sling Type:
-
Wire Rope
Quick Details
-
Power Source:
-
Electric
-
Application:
-
Cranes,lifting, pulling, hoisting
-
Capacity:
-
5~650KN
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Santo
-
Model Number:
-
JK, JM, JT, JKL
-
Color:
-
As your demand
-
Rated speed:
-
0~46m/min
-
Rope Capacity:
-
100~3600m
-
Bases:
-
FIxed type or moveable type
-
Motor Power:
-
3~160KW
-
Machine Weight:
-
165~46000Kg
-
Rope diameter:
-
7.7~65mm
-
Control:
-
cam controller
-
Rope guider:
-
included
-
Sling Type:
-
Wire Rope
|
|
|
|

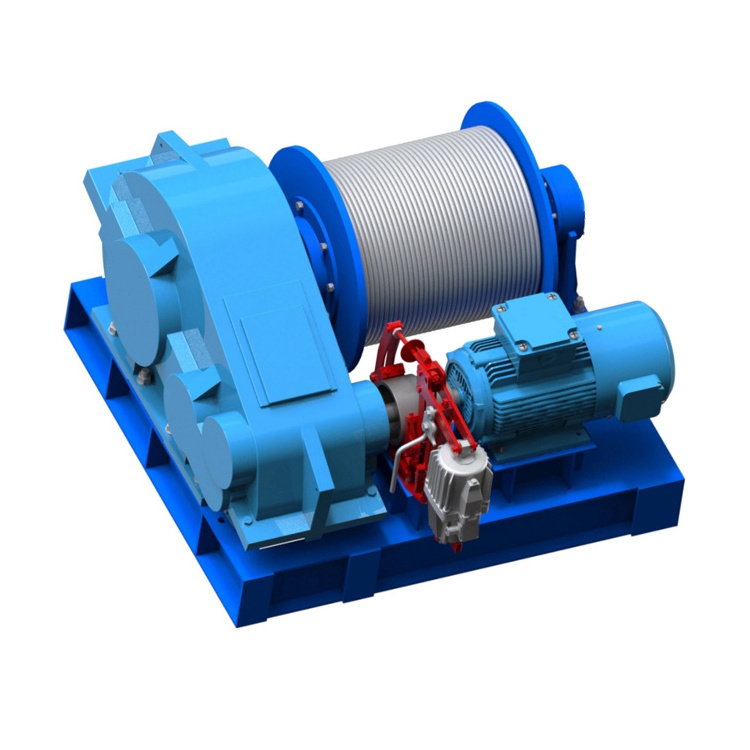

Electric winch generally includes the following units: 1. Motor. 2. Reduction gear box. 3. Rope drum. 4. Brake. 5. Electric control system. 6. Optional rope guider. Advantages of electric winch: 1. Top quality with competitive price. 2. Widely used in different places. widely used in factory, mining, shipyard or double beam cranes. 3. Easy installation and maintenance. 4. Compact structure and reasonable design. 5. Easy operating and control. 6. Low noise and good working condition. |
|
|
|
|
|
JM SERIES SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY |
|
|
JM Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure. |
|
Features:
|
|
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items |
Rated load,
|
Rated speed,
m/min |
Rope capacity,
m |
Rope diameter,
mm |
Motor |
Power |
Size,
mm |
Weight,
kg |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM1.6 | 16 | 16 | 150 | 12.5 | Y132M2-6 | 5.5 | 945*996*570 | 500 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M2-6 | 7.5 | 1430*1160*910 | 1100 |
| JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M2-6 | 7.5 | 1082*1014*610 | 536 |
| JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
| JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620*1260*945 | 1800 |
| JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1800 |
| JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235*1230*805 | 1850 |
| JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235*1230*805 | 2000 |
| JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1230*805 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
| JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075*1598*985 | 2650 |
Products showing and cases
|
JM SERIES HEAVY DUTY SLOW SPEED ELECTRIC WINCH FOR CRANE LIFTING, BRIDGE OR ROAD BUILDING AND INSTALLATION INDUSTRY |
|
| JM Heavy duty Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete constructure, Port and Mine application. | |
|
Features:
|
|
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items |
Rated load,
KN |
Rated speed,
m/min |
Rope capacity,
m |
Rope diameter,
mm |
Motor |
Power |
Size,
mm |
Weight,
kg |
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 135 | 0~5 | 290 | 28 | YZR225S-8 | 22 | 2990*2366*1650 | 6500 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280S-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Products showing and cases
|
JK SERIES FAST SPEED ELECTRIC WINCH FOR DRILLING, CRANE LIFTING AND INSTALLATION INDUSTRY |
|
| JK series fast speed electric winch is widely used for load material lifting, load transfering and as a lift machanism for crane. Suitable gor construction and small equipments installation of construction mine are lifting. | |
|
Features:
|
|
| Long Rope Horizontal Free Operator Training Lifting Winch Electric | |
| Items |
Rated load,
KN |
Rated speed,
m/min |
Rope capacity,
m |
Rope diameter,
mm |
Motor |
Power |
Size,
mm |
Weight,
kg |
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JM10B | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JM12.5 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JM13.5 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JM16 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JM20 | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JM25 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JM32 | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JM50 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JM65 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
