Quick Details
-
Power:
-
8.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Maximum Digging Height:
-
2686mm
-
Maximum Digging Depth:
-
1650mm
-
Machine Weight:
-
1000 kg
-
Max Digging Radius:
-
2850mm
-
Rated Speed:
-
1.5km/h
-
Product name:
-
1ton 1.2ton mini hydraulic escavadeira micro excavator cheap price
-
Type:
-
Crawler Moving excavator
-
Bucket digging force:
-
10.7KN
-
Size:
-
2750*900*1330mm
-
Engine:
-
KOOP/Changchai
-
Hydraulic system:
-
16Mpa
-
Keywords:
-
small digger excavator for sale
-
Color:
-
As customer's requirement
Quick Details
-
Operating Weight:
-
1000kgs
-
Bucket capacity:
-
0.025m3
-
Engine Brand:
-
KOOP
-
Power:
-
8.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CNMC
-
Maximum Digging Height:
-
2686mm
-
Maximum Digging Depth:
-
1650mm
-
Machine Weight:
-
1000 kg
-
Max Digging Radius:
-
2850mm
-
Rated Speed:
-
1.5km/h
-
Product name:
-
1ton 1.2ton mini hydraulic escavadeira micro excavator cheap price
-
Type:
-
Crawler Moving excavator
-
Bucket digging force:
-
10.7KN
-
Size:
-
2750*900*1330mm
-
Engine:
-
KOOP/Changchai
-
Hydraulic system:
-
16Mpa
-
Keywords:
-
small digger excavator for sale
-
Color:
-
As customer's requirement

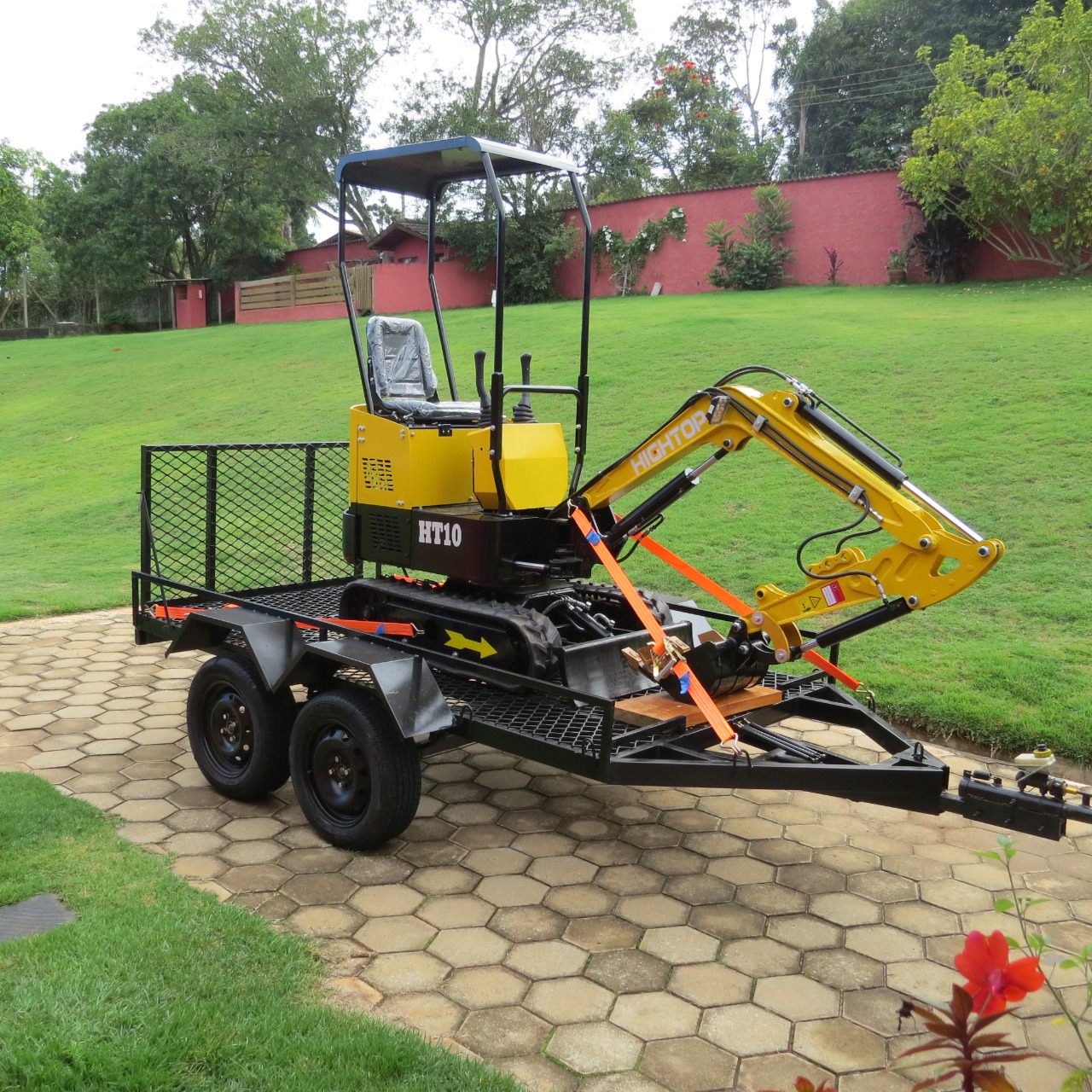

HT10 hydraulic mini excavator with competitive prices --CE ， ISO ,EPA ， Euro 5
1.With the
dial oscillates
2. It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on.
3.Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on.
4.It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.
2. It is suitable for loosing soil of vegetable green house, campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, concrete pavement crushing, sand-gravel material mixing, construction work on the narrow place and so on.
3.Use the quick hitch can add the attachment tools like auger, hydraulic hammer, loading bucket, gripper and so on.
4.It can reduce maintenance and operating costs. Liberate the workforce, improve the mechanization, low investment, high return.
|
Model
|
HT10
|
|
|
Weight
|
1000kg
|
|
|
Digging bucket capacity
|
0.025cbm/120kg
|
|
|
Bucket width
|
380mm
|
|
|
Engine
|
KOOP Diesesl engine
|
|
|
Optional EPA Engine
|
BRIGGS & STRATTON(G420FD)
|
|
|
Bore stroke
|
Single cylinder, fan cool
|
|
|
Rated power
|
8.2 kw/3600r/min or 9.9kw/3600r/min
|
|
|
Displacement
|
6.8ml/r
|
|
|
Travel speed
|
1.5km/h
|
|
|
MAIN DEMENSIONS
|
|
|
|
Overall dimension( LxWxH)
|
2775x930x2219 mm
|
|
|
Wheelbase
|
910 mm
|
|
|
Total length of track
|
1230mm
|
|
|
Platform ground clearance
|
380 mm
|
|
|
Platform back turning radius
|
784 mm
|
|
|
Chassis width
|
896 mm
|
|
|
Track width
|
180 mm
|
|
|
Chassis ground clearance
|
132 mm
|
|
|
Track height
|
320 mm
|
|
|
OPERATING RANGE
|
|
|
|
Max. Digging depth
|
1650 mm
|
|
|
Max. Vertical digging depth
|
1375 mm
|
|
|
Max. Digging height
|
2610 mm
|
|
|
Max. Dumping height
|
1850 mm
|
|
|
Max. Digging radius on ground
|
2850 mm
|
|
|
Min. Rotation radius
|
1330 mm
|
|
|
Max. Upgrade height of bulldozer blade
|
345 mm
|
|
|
Max. Digging depth of bulldozer blade
|
255 mm
|
|
Product Description
