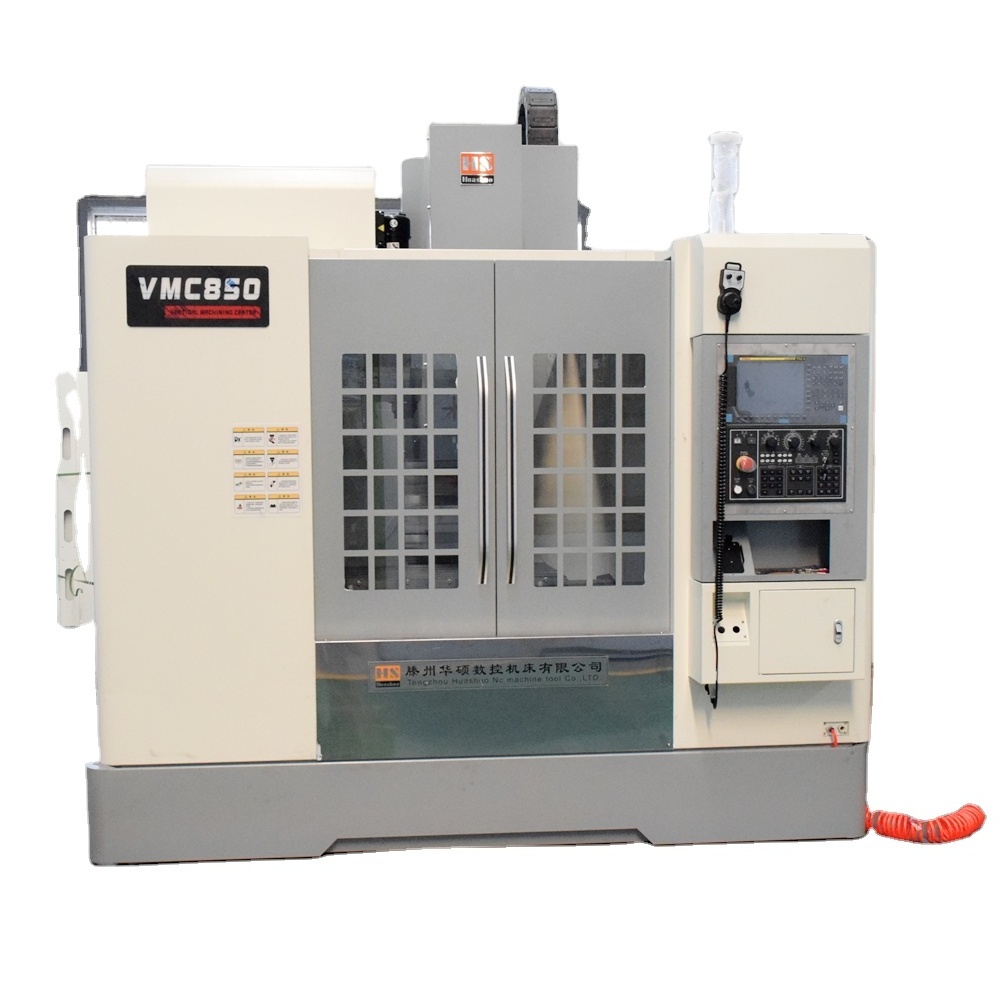

Made in China VMC850 Veitical Machine Center Heavy Duty Vertical 2Aixs Cnc Lathe Machine Cnc Vertical Lathe

Made in China VMC850 Veitical Machine Center Heavy Duty Vertical 2Aixs Cnc Lathe Machine Cnc Vertical Lathe

FOB Reference Price: Get Latest Price

≥1 Sets

US $14980

≥5 Sets

US $13980

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Table Travel (Y) (mm):: 500

Dimension(L*W*H):: 2700*2500*2800

Weight (T):: 5 T

Positioning Accuracy (mm):: 0.005

Repeatability (X/Y/Z) (mm):: 0.005

Range of Spindle Speed(r.p.m):: 0 - 10000 r.p.m

Spindle Motor Power(kW):: 7.5

Max. Table Load(kg):: 600 kg

Feed Speed(mm/min):: 0 - 10000 mm/min

Rapid Feed Speed(m/min):: 24

Place of Origin:: Shandong, China

Brand Name:: HUA SHUO

Voltage:: 380

Core Components:: Numerical control system

Product name:: CNC Machining Center VMC850

Machine Type:: CNC Vertical Machining Center

Application:: Metal Machining Center

Controlling Mode:: Fanuc Mitsubishi Siemens Gsk System

Product type:: Machining Center Cnc Mill Machine

After-sales Service Provided:: Video Technical Support

Color:: Custom-made

CNC Controller:: Fanuc Siemens Syntec KND GSK

Keywords:: Vmc Machine Center

Processing:: Metal Cutting Cnc Milling Machine

Quick Details

Table Size (mm):: 1000*500

Number of Axes:: 3, 4, 5

Table Travel (X) (mm):: 800

Table Travel (Y) (mm):: 500

Dimension(L*W*H):: 2700*2500*2800

Weight (T):: 5 T

Positioning Accuracy (mm):: 0.005

Repeatability (X/Y/Z) (mm):: 0.005

Range of Spindle Speed(r.p.m):: 0 - 10000 r.p.m

Spindle Motor Power(kW):: 7.5

Max. Table Load(kg):: 600 kg

Feed Speed(mm/min):: 0 - 10000 mm/min

Rapid Feed Speed(m/min):: 24

Place of Origin:: Shandong, China

Brand Name:: HUA SHUO

Voltage:: 380

Core Components:: Numerical control system

Product name:: CNC Machining Center VMC850

Machine Type:: CNC Vertical Machining Center

Application:: Metal Machining Center

Controlling Mode:: Fanuc Mitsubishi Siemens Gsk System

Product type:: Machining Center Cnc Mill Machine

After-sales Service Provided:: Video Technical Support

Color:: Custom-made

CNC Controller:: Fanuc Siemens Syntec KND GSK

Keywords:: Vmc Machine Center

Processing:: Metal Cutting Cnc Milling Machine

* Reasons to choose us

1. We are factory direct, you can use the lowest price to buy the best products.

2. The purchase of our products can enjoy a two-year warranty service.

3. We export to more than 30 countries and regions and have rich experience in remote technical support.

4. We have a professional team to provide you with pre-sales selection consultation, technical support in sales, after-sales parts service.

5. Free spare parts with shipping.

6. After sale office in differ country.

* Customer service team

* We have a professional team to provide you with 7*24 hours of service.

R&d team of famous engineers at home and abroad

We have a team of well-known engineers at home and abroad to provide you with product customization services.

pioject	Content	unit	Vmc855
workbench	Workbench area	mm	1000×550
		T-shaped groove	mm	5-18-100
		Max capacity	Kg	800
trip	Moving range X、Y、Z	mm	800×550×550
		Distance from spindle nose to workbench	mm	120-670
		Distance from spindle center to column guide rail surface	mm	550
Feed	Fast moving speed x, y, Z	m/min	36/34/34/min
Feed		Cutting feed speed x, y, Z	mm/min	10~10000mm/min
Spindle	Spindle taper hole		BT40
		Spindle speed	r/min	0-8000pm
		Spindle power	kw	AC servo 7.5-11
Tool magazine	Tool magazine capacity	Bundle	24
		Maximum tool weight	kg	8kg
		Maximum tool size	mm	φ150×300
Accuracy	Accuracy positioning accuracy x/y/z	mm	±0.008
Accuracy		Repeat positioning accuracy x/y/z	mm	±0.005
Dimensions	Overall dimension length width height	mm	300024003100
weight		KG	5400

1.Features: 2.High quality resin sand 3.Taiwan spindle 4.Taiwan ball screw and locking nut 5.Taiwan pressure cylinder 6.Taiwan linear railway 7.Japanese NSK bearing germany R+W coupling 8.Automatic lubrication system 9.Chip conveyor at optional

10.price favorable

Tengzhou Huashuo CNC Machine Tool Co. Ltd,Products from R & D, manufacturing, sales to after-sales management, strictly implement the ISO9001 quality management system, smooth and efficient production processes, rigorous and meticulous work, to carry out a detailed, precise, advanced testing facilities, to ensure that every product to maintain sustainable high-quality. Continuous innovation, improve efficiency, to provide professional, reliable, high quality, cost-effective products to serve customers worldwide.
