Hot sale Portable hydraulic oil jack pump manual hydraulic foot pump for chassis straightening machine PAS14

Hot sale Portable hydraulic oil jack pump manual hydraulic foot pump for chassis straightening machine PAS14

FOB Reference Price: Get Latest Price

≥2 Pieces

US $80

≥50 Pieces

US $69

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PAS14

Oil Tank material:: Aluminum reservoir

Weight:: 6.7kgs

Power Source:: Hydraulic

Structure:: air foot pump

Brand Name:: Deeleap

Max.pressure:: 700bar/10000psi

Fuel:: hydraulic oil

Drive mode:: pneumatic

Quick Details

Warranty:: 1 years

Place of Origin:: Shandong, China

Product name:: hydraulic foot pump for chassis straightening machine

Model Number:: PAS14

Oil Tank material:: Aluminum reservoir

Weight:: 6.7kgs

Power Source:: Hydraulic

Structure:: air foot pump

Brand Name:: Deeleap

Max.pressure:: 700bar/10000psi

Fuel:: hydraulic oil

Drive mode:: pneumatic

Product Overview

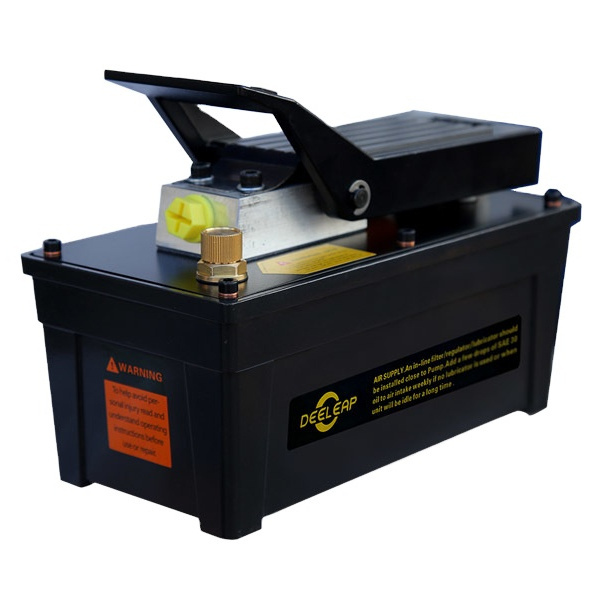

Hot sale Portable hydraulic oil jack pump manual hydraulic foot pump for chassis straightening machine PAS14

Applicable fields: applied to automobile maintenance, machining, marine, metal and equipment manufacturers, metallurgy, petroleum, chemical, electric power, lifting, construction, mining industry.

FEATURES AT A GLANCE

Function type: Single speed single acting

Drive mode: pneumatic

Operation mode: foot or hand pressure

Medium: L-HM32# or L-HV32# anti-wear hydraulic oil

Applicable tools: Applicable to single-acting cylinders and hydraulic tools.

side picture

front side

Back side

PRODUCT SPECIFICATIONS

No	Item	Data
1	Oil Tank material	Polyethylene reservoir
2	Oil tank capacity	1.7L
3	Available oil capacity	1.6L
4	Air pressure	6-8Mpa
5	Air consumption	255L/min
6	Rated pressure	70Mpa
7	Output flow (L/min)	No-load flow 1.16L/min	load flow 0.15L/min
8	Air inlet interface	1/4''-18NPTF	Oil outlet interface	3/8''-18NPTF

PRODUCT CONFIGURATION

Application Field

certificate

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Q1: How to contact sales?
A1: Please via wechat or whatsapp: +86-17616005788.

Q2: How to make payment?
A2: Paypal, Western Union, or T/T transfer.

Q3: How long does it take to process orders?
A3: Usually, It usually takes 10-15 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.

Q4: What is the packing method?
A4: For small piece, we use carton box; for big pieces, we use plywood case specially designed for exportation.

Q5: How to ship?
A5: By Sea, by air or International express (DHL, FEDEX, UPS etc. ) .

Q6: What is the warranty？
A6: 1 year after shipment.
