- Product Details
- {{item.text}}
Quick Details
-
Max Speed:
-
10foam boxes/hour
-
Voltage:
-
110V 220V
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
L2086* W1362* H1420mm
-
Weight:
-
300 KG
-
Product name:
-
Foam boxes sealing machine
Quick Details
-
Packaging Type:
-
Foam boxes
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Max Speed:
-
10foam boxes/hour
-
Voltage:
-
110V 220V
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
L2086* W1362* H1420mm
-
Weight:
-
300 KG
-
Product name:
-
Foam boxes sealing machine
Product Description

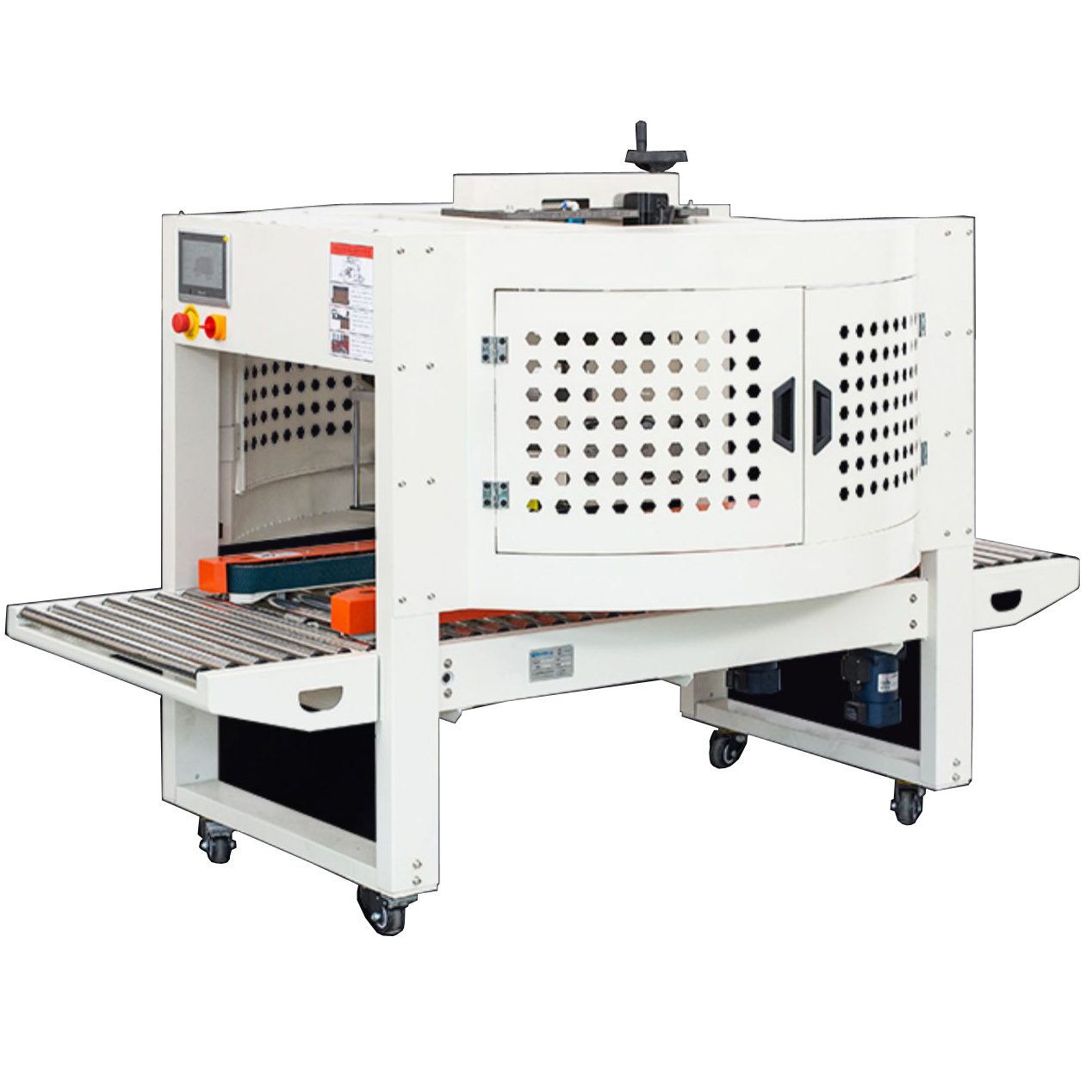

DFX5032M sealing machine is specially designed for foam box packaging, suitable for wrapping and sealing foam boxes of fresh fruits and other products.
Adopting PLC, touch screen and servo, with high positioning accuracy and strong adjustability.
Adopt PVC conveyor belt with strong grip , the conveying is stable, and the goods don’t need to be rotated, which can effectively protect the sealed goods, especially beneficial for the packaging of fresh products.
We could set the tape wrapping number according to the actual requirements.
Details:
1. Equipped with an adjustable hand wheel, the height of the working table could be adjusted according to the carton's height.
2. Famous brand dual motor, with stronger power.
3. Movable casters,could move the machine effortlessly.
Adopting PLC, touch screen and servo, with high positioning accuracy and strong adjustability.
Adopt PVC conveyor belt with strong grip , the conveying is stable, and the goods don’t need to be rotated, which can effectively protect the sealed goods, especially beneficial for the packaging of fresh products.
We could set the tape wrapping number according to the actual requirements.
Details:
1. Equipped with an adjustable hand wheel, the height of the working table could be adjusted according to the carton's height.
2. Famous brand dual motor, with stronger power.
3. Movable casters,could move the machine effortlessly.
Specification
|
Model
|
DFX5032M
|
|
Voltage
|
AC110V 220V 50/60Hz
|
|
Power
|
1000W
|
|
Sealing tape width
|
48-60mm
|
|
Sealing speed
|
10 foam boxes/min
|
|
Transmission type
|
Left Right Conveyor belt transmission
|
|
Max. sealing size
|
L 490mm* W310mm* H245mm
|
|
Min. sealing size
|
L 225mm* W125mm* H150mm
|
|
Overall size
|
L2086* W1362* H1420mm
|
