Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ22-11E
-
Mounting hole:
-
19mm
-
Electrical life:
-
50000
-
Mechanical life:
-
1000000
-
OEM&ODM:
-
Available
-
Certification:
-
CE,ROHS, CE
Quick Details
-
Protection Level:
-
IP65,IK09
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ22-11E
-
Mounting hole:
-
19mm
-
Electrical life:
-
50000
-
Mechanical life:
-
1000000
-
OEM&ODM:
-
Available
-
Certification:
-
CE,ROHS, CE

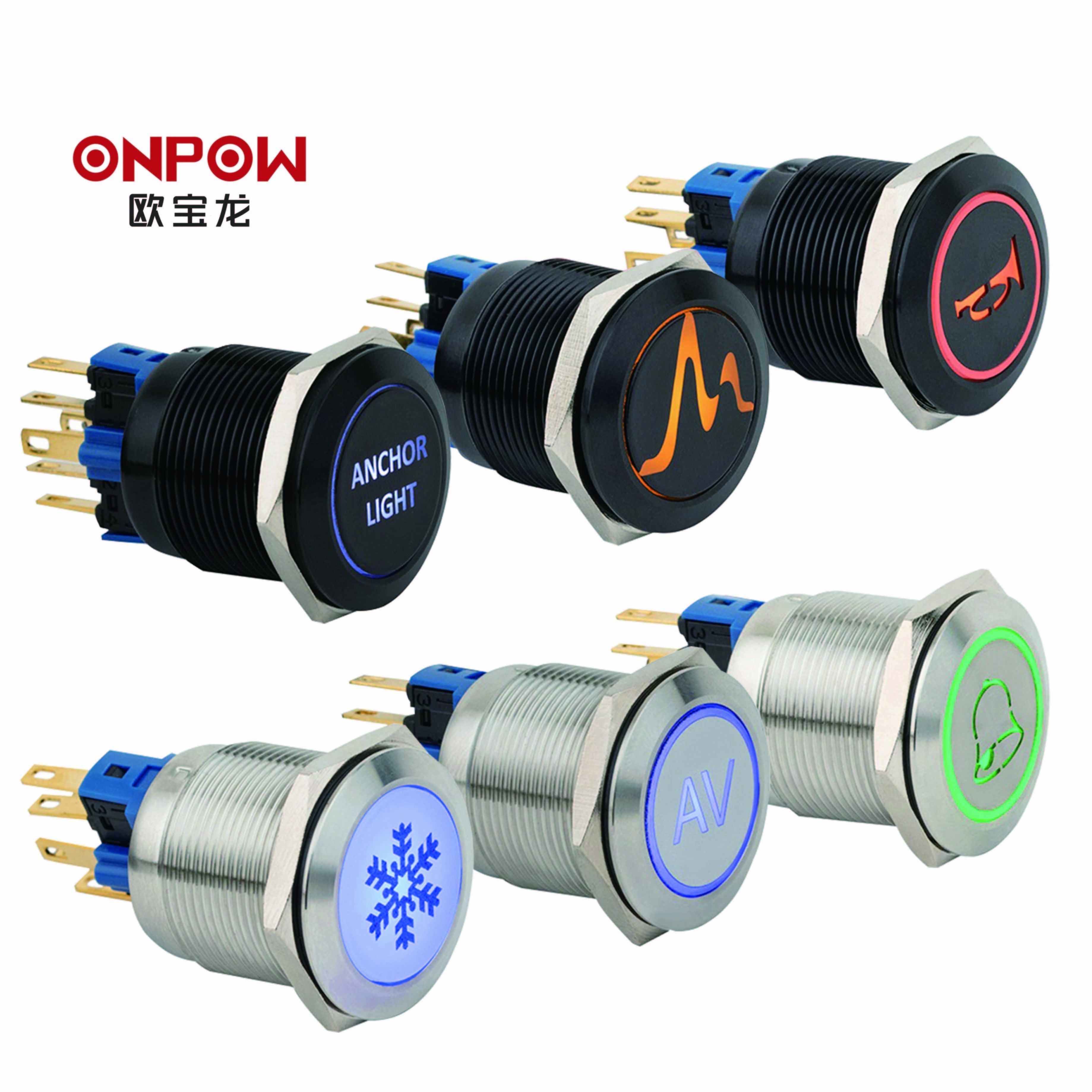

| Model Description | |
| Part number: |
GQ22-11E |
| Mounting Cut-out | 22mm |
| Head shape | Flat round head |
| Switch Combination |
1NO1NO
|
| Operation type |
Momentary/Latching
|
| Body Material | Stainless steel/Aluminum alloy(black) |
| Approval | CE,CCC,Rohs,Reach,IP65 |
| Other Technical data | |
| Item. | Parameter |
| Operating temperature | -25℃~+55℃ |
| Protection Levels | IK10 |
| Electrical Life | Over 50,000 times |
| Mechanical Life | 1,000,000 times |
| Waterproof | IP65(momentary version could be customzied for IP67) |
| Actuating Force | About 4 N |
| Actuating travel | About 2.5mm |
| Mounting panel thickness | 10mm Max. |
| Nut torque | Over 0.6Nm |
| Actuator | PC for lit sign |
| Contact | Silver Contact |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1500VAC min |
| Vibration resistance | 50Hz,amplitude about 1.2mm |
Packing: switches with high flat button
1. Neutral packing : 20 pcs/box, 25boxes/carton
2. Upon customers' request, but the price is different with neutral packing
3. Carton size: 30*50*35 cm
Shipping: switches with high flat button
1. DHL,TNT, FEDEX, UPS and other international express.
2. By air or by sea.
Pls contact us for discount for large quantity!
