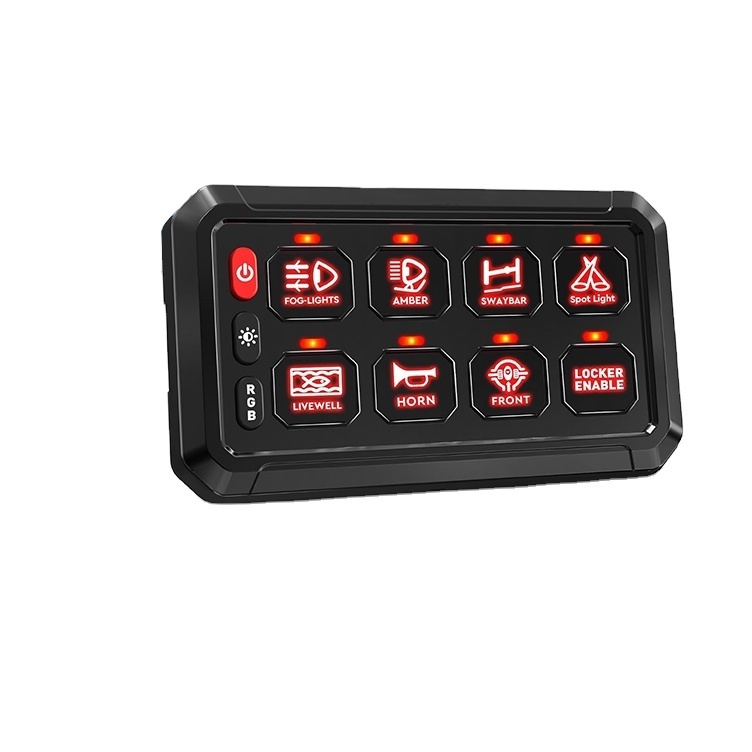

8 Gang Switch rgb Panel, Universal Circuit APP Control Relay System Box On-Off LED Switch Pod Box for Car Pickup Truck Boat

SPECIFICATIONS:
- Panel Size: 4.5*2.6*0.5 inch
- Circuit Box Size: 7.54*1.3*4.1 inch
- Panel Material: High quality ABS
- Circuit Box Material: Die-case aluminum
- Input Voltage: 12V / 24V DC
- Maximum Power: 600W at 12V / 1200W at 24V
- Maximum Current: 60A
- Operating Temperature: - 40° C ~ + 150° C
- Maximum Instantaneous Current: 100A

How to connect the red and white cables?
1. Connect the red cable to the width lamp. If you want to light up the LED lamps before the car start-up, please connect the
recommended because the higher the power is, the more the power of the battery will be consumed.
2. Connect the white cable to a momentary push button to adjust through three different brightness levels of the switch panel. if
you just want to have the most brightness switch panel, you can disconnect it.

· 8 GANG SWITCH PANELS - Operating voltage: 12V; maximum power rating: 1200W; maximum current rating: 60A. It can control 8 LED
lights and fully operate your boat marine accessories and other electronic equipments at the same time. It has high sensitivity,
stability and strong anti-interference ability.
