Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
oriemac
-
Weight:
-
28150kg
-
Dimension(L*W*H):
-
11990*2490*3900mm
-
Color:
-
Customers' Requirement
-
Engine:
-
Diesel
-
Engine emission standard:
-
Euro III
-
grade-ability:
-
38%
-
Certification:
-
ISO CE
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
40M
-
Max. horizontal conveying distance:
-
30M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
oriemac
-
Weight:
-
28150kg
-
Dimension(L*W*H):
-
11990*2490*3900mm
-
Color:
-
Customers' Requirement
-
Engine:
-
Diesel
-
Engine emission standard:
-
Euro III
-
grade-ability:
-
38%
-
Certification:
-
ISO CE
Product Description

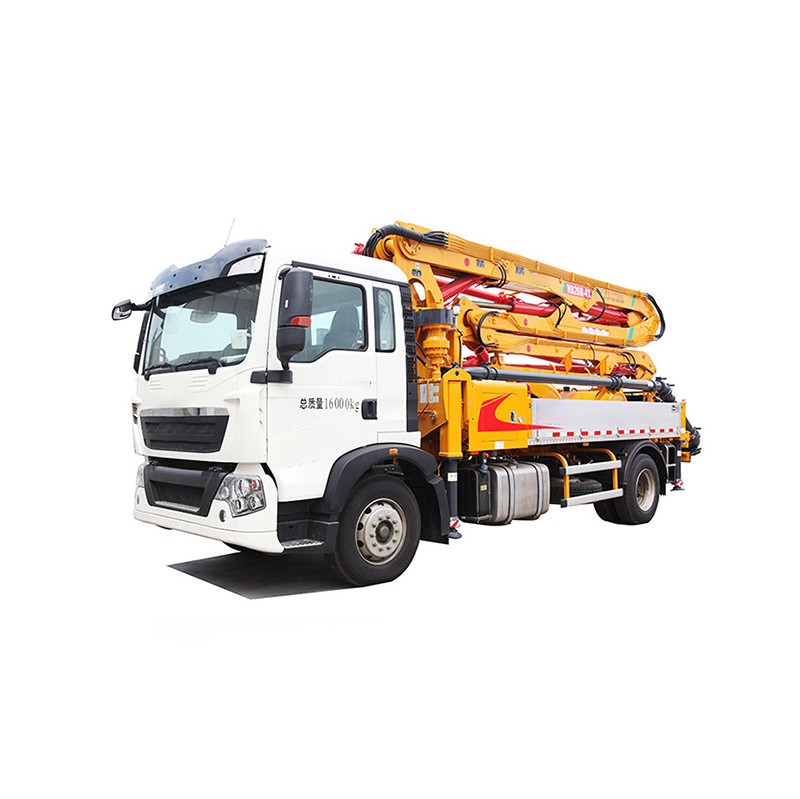

90M3/h Concrete Pump Truck Gear Box Price of Concrete Pump Car
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Max. speed | km | 90 |
| 2 | Min. turning diameter | m | 18.4 |
| 3 | Brake distance | m | 7 |
| 4 | Approach angle | ° | 31 |
| 5 | Departure angle | ° | 12 |
| 6 | Chassis model | CXZ51Q ( Japan ) | |
| 7 | Total weight | kg | 28150 |
| 8 | 1st axle load | kg | 6780 |
| 9 | 2nd, 3rd axle load | kg | 21220 |
| 10 | Engine model | 6WF1 | |
| 11 | Max. Engine power | kW | 287 |
| 12 | Max. Engine torque | N.m | 1862 |
| 13 | Max. grade-ability | % | 38 |
| 14 | Fuel consumption limit | L/100km | 34 |
| 15 | Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
Technical Data for Pumping Operation
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Theoretical output | m 3 /h | 138/90 |
| 2 | Max. delivery pressure | MPa | 8.7/13 |
| 3 | Reach height | m | 37.4 |
| 4 | Reach depth | m | 23.7 |
| 5 | Front outrigger transverse span | mm | 7280 |
| 6 | Rear outrigger transverse span | mm | 6600 |
| 7 | Outrigger longitudinal span | mm | 6860 |
| 8 | Delivery pipe diameter | mm | 125 |
| 9 | Remote control distance | m | 100 |
| 10 | Placing boom slewing range | ° | 370 |
