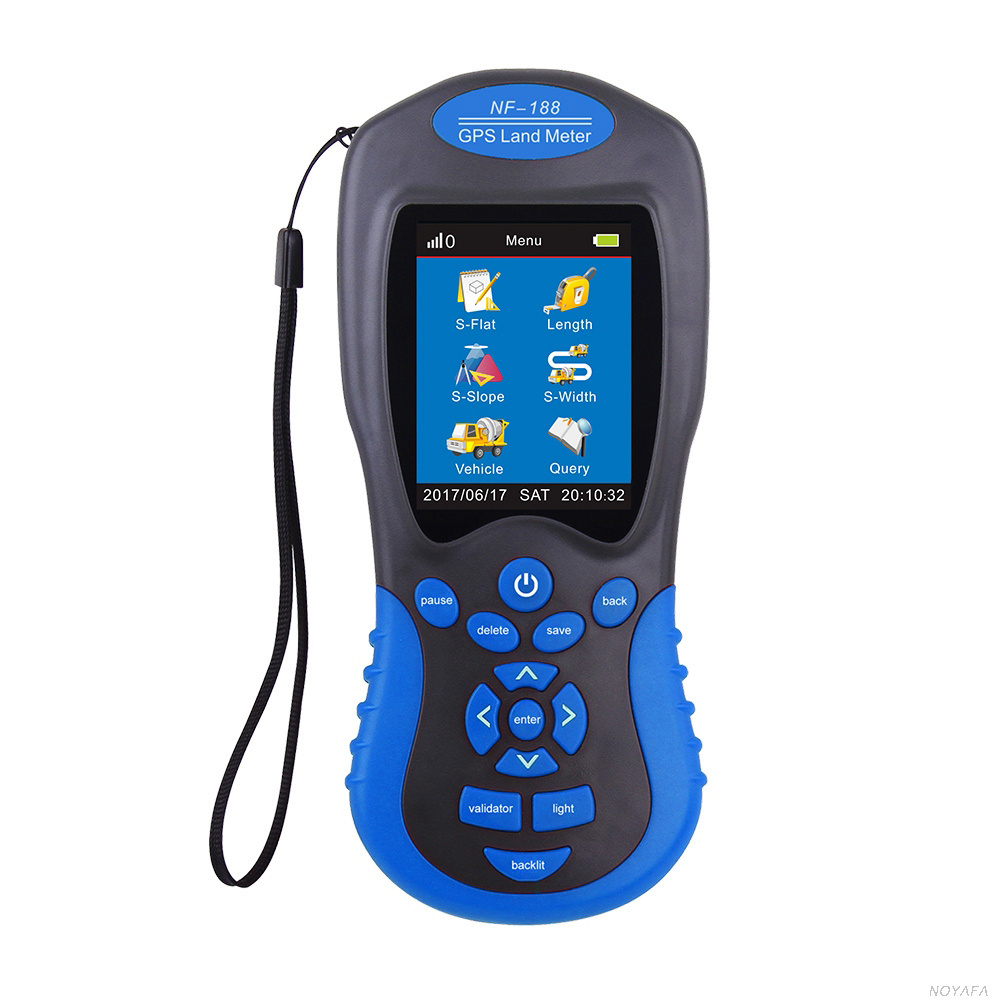

NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored
NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored

NF-188 Land Survey Calculating Area Handheld GPS Land Meter Graphics Trajectory Stored

FOB Reference Price: Get Latest Price
≥1 Pieces
US $39.85
≥30 Pieces
US $36.66
≥500 Pieces
US $35.07
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power supply:
3.7V/ 2000mAh batteries
Detecting range:
0-999999.9㎡
Units:
mu/ square / hectare / kilometres
Measuring error1:
3-5%
Length detect range:
0-999999.9 M
Measuring error:
0.1-3 M
Certification:
CE
Is customized:
Yes
Warranty:
1 year

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
NOYAFA
Material:
ABS+electric parts
Power supply:
3.7V/ 2000mAh batteries
Detecting range:
0-999999.9㎡
Units:
mu/ square / hectare / kilometres
Measuring error1:
3-5%
Length detect range:
0-999999.9 M
Measuring error:
0.1-3 M
Certification:
CE
Is customized:
Yes
Warranty:
1 year
Product Description

Main function

1. Measure area and length of any shape (containing mountainous land, slope and flat field).
2. can display measuring value, figure track and automatically calculate price after measurement.
3. Test data , Graphics trajectory can be stored.
4. Large color screen that makes more clear and visually.
5. Efficient startup: 30sec for cold boot, 3sec for warm boot.
6. 2 pcs of 3.7V/ 2000mAh batteries included.

Benefit
1. Can save and export 99 historical data and figure track.
2. Low battery reminder and auto-off time adjustable.
3. currency detection, lighting and background light and canlender.
4. Unit and unit price can be set up.

Attention:

1. Don't close to tall obstructions ( building , tree,ect )
2. After searched 6 satellite to start work.
3. Don't measure less than 0.3 mu land.
4. Don't cross or overlap the trajectory when you measuring.
5. Before you measuring , please check the Latitude and longitude coordinates is steady.
Technical Index
NF-188
NF-188
Color
Blue
LCD Screen
Color
Square detect range
0-999999.9 ㎡
Measuring error
3-5%
Units
mu/ square / hectare / kilometres
Length detect range
0-999999.9 M
Measuring accuracy
>97%
Power supply
3.7v / 2000mAh battery
Continuous working time
10 hours
Dimensions (LxWxD)
174 x 76 x 28mm
Weight
149g
Packaging & Shipping
Packing
Standard carton :
Weight: 22.2kg Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 20.23kg

Shipping: All shipping way is available
Our Services
After-Sale service Commitment

1.Product quanlity
All products are guaranteed on consistency
All products are stabilized after 24-hour aging testing.
All products are 100% inspected PASS before shipment.
All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure,
GB4793-1984 Safety
requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.

2. After-sales service Clause
2.1 Responsibility
We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
